气压夹钳 |
|

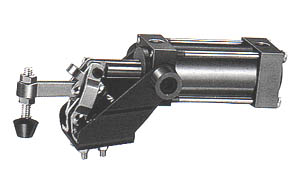

GH-12050-A
| |
|
|
Supplied with压头螺丝代码 GH-FC-14134 neoprene tipped spindle assembly.
Hold down bar opens 95o to facilitate easy part loading and unloading.
WEIGHT自重:630g |

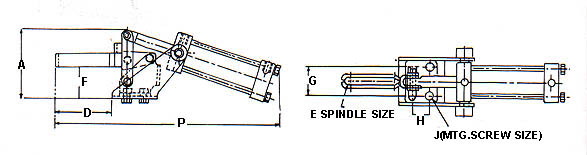

| Model 型号 |
BAR MOVES压把打开角度 |
PORT SIZE接口规格 |
P |
A |
B |
D |
E压头螺丝代码 |
F |
G |
H |
J |
| GH-10101-A |
82o |
1/8NPT |
168.5 |
40.7 |
4.8 |
24 |
GH-FC-10138 |
17.5 |
23.8 |
15.9 |
3.2 |
| GH-12050-A |
105o |
1/8NPT |
185 |
55.7 |
6.3 |
35 |
GH-FC-14134 |
27 |
27 |
12.7 |
5.2 |
| GH-12130-A |
92o |
1/8NPT |
236.5 |
75.4 |
10.3 |
68 |
GH-FC-56212 |
33.9 |
32 |
19 |
7.1 |
| GH-12132-A |
92o |
1/8NPT |
260 |
75.3 |
10.3 |
88 |
GH-FC-56212 |
34.2 |
32 |
19 |
7.1 |
| GH-12265-A |
86o |
1/8NPT |
392 |
93.7 |
9.5 |
88.2 |
GH-FC-38312 |
44.2 |
45.2 |
31.8 |
8.3 |
| GH-12275-A |
86o |
1/8NPT |
302 |
93.7 |
9.5 |
88.2 |
GH-FC-38312 |
44.2 |
45.2 |
31.8 |
8.3 |
| GH-10247-A |
100o |
1/8NPT |
407 |
110 |
18.9 |
114.8 |
GH-FC-11300 |
55.3 |
45.2 |
31.8 |
8.3 |
| GH-10249-A |
100o |
1/8NPT |
407 |
110 |
18.9 |
114.8 |
GH-FC-12300 |
55.3 |
45.2 |
31.8 |
8.3 |
| GH-20820-A |
90o |
1/8NPT |
165 |
195 |
16.5 |
60 |
GH-FC-56212 |
70 |
25 |
16 |
7 |
| | |
|
