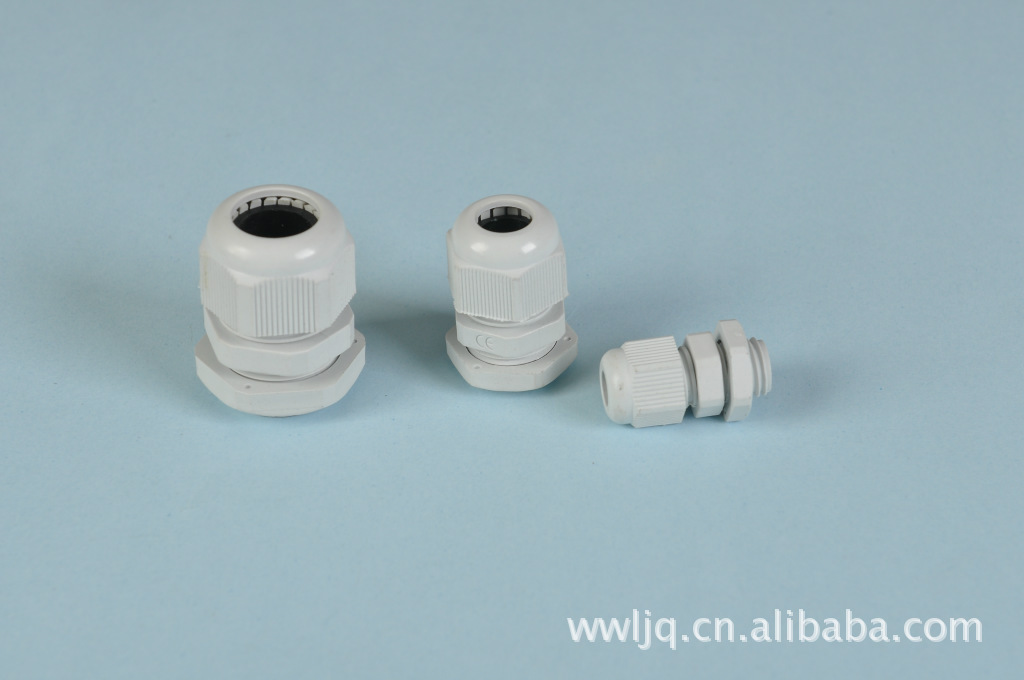

尼龙防水接头M系列
材料：尼龙塑料(PA66)
密封件：丁腈橡胶(NBR)
防护等级：IP68
工作温度: -40℃~100℃
| 产品编号 | 螺纹规格(AG) | D1(mm) | D2(mm) | L1(mm) | L2(mm) | L3(mm) | B1 (mm) | 适用电缆(mm) |
| ww-M12 | M12*1.5 | 10.9 | 8.1 | 10.4 | 14.5 | 10.5 | 6.4 | 3-6.5 |
| ww-M16 | M16*1.5 | 15.3 | 12.2 | 9.9 | 15.8 | 17.2 | 8.6 | 4-8 |
| ww-M18 | M18*1.5 | 17.9 | 14.6 | 10.6 | 15.5 | 17.5 | 10.7 | 5-10 |
| ww-M20 | M20*1.5 | 20.2 | 16.2 | 10.3 | 17.5 | 17.9 | 13.3 | 6-12 |
| ww-M22 | M22*1.5 | 21.3 | 18.3 | 11.2 | 18.5 | 20.5 | 14.3 | 10-14 |
| ww-M24 | M24*1.5 | 24.7 | 20.5 | 11.4 | 18.6 | 21.8 | 15.5 | 12-15 |
| ww-M27 | M27*1.5 | 26.9 | 21.8 | 11.6 | 18.7 | 23.1 | 16.7 | 13-18 |
| ww-M30 | M30*1.5 | 29.8 | 25 | 12.1 | 19.3 | 24.1 | 19.2 | 15-22 |
| ww-M32 | M32*1.5 | 29.8 | 25 | 12.1 | 19.3 | 24.1 | 18.2 | 17-23 |
| ww-M36 | M36*1.5 | 35.1 | 29.8 | 12.4 | 22.6 | 24.8 | 24.8 | 18-25 |
| ww-M46 | M46*1.5 | 44.7 | 37.1 | 12.6 | 25.1 | 26.1 | 30.7 | 22-33 |
| ww-M54 | M54*1.5 | 50.4 | 43.3 | 17.3 | 25.9 | 30.5 | 35.6 | 30-38 |
| ww-M60 | M60*1.5 | 56.1 | 48.2 | 20.9 | 28.1 | 31.5 | 41.4 | 34-44 |
| ww-PG7 | PG7 | 10.9 | 8.1 | 10.4 | 14.5 | 10.5 | 6.4 | 3-6.5 |
| ww-PG9 | PG9 | 15.3 | 12.2 | 9.9 | 15.8 | 17.2 | 8.6 | 4-8 |
| ww-PG11 | PG11 | 17.9 | 14.6 | 10.6 | 15.5 | 17.5 | 10.7 | 5-10 |
| ww-PG13.5 | PG13.5 | 20.2 | 16.2 | 10.3 | 17.5 | 17.9 | 13.3 | 6-12 |
| ww-PG16 | PG16 | 21.3 | 18.3 | 11.2 | 18.5 | 20.5 | 14.3 | 10-14 |
| ww-PG19 | PG19 | 24.7 | 20.5 | 11.4 | 18.6 | 21.8 | 15.5 | 12-15 |
| ww-PG21 | PG21 | 26.9 | 21.8 | 11.6 | 18.7 | 23.1 | 16.7 | 13-18 |
| ww-PG24 | PG24 | 29.8 | 25 | 12.1 | 19.3 | 24.1 | 19.2 | 15-22 |
| ww-PG27 | PG27 | 29.8 | 25 | 12.1 | 19.3 | 24.1 | 18.2 | 17-23 |
| ww-PG29 | PG29 | 35.1 | 29.8 | 12.4 | 22.6 | 24.8 | 24.8 | 18-25 |
| ww-PG36 | PG36 | 44.7 | 37.1 | 12.6 | 25.1 | 26.1 | 30.7 | 22-33 |
| ww-PG42 | PG42 | 50.4 | 43.3 | 17.3 | 25.9 | 30.5 | 35.6 | 30-38 |
| ww-PG48 | PG48 | 56.1 | 48.2 | 20.9 | 28.1 | 31.5 | 41.4 | 34-44 |
| ww-PG63 | PG63 | 71 | 63.5 | 27.5 | 31.5 | 43.5 | 55.0 | 42-54 |
