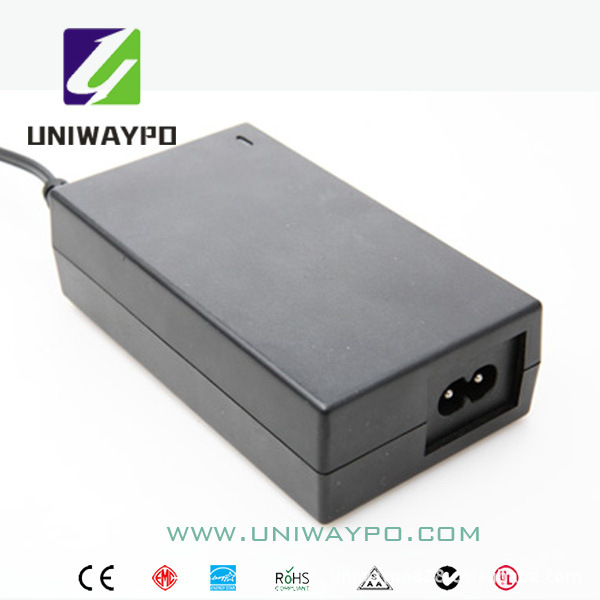

50W 25V 2A 开关电源 & 电源适配器 充电器 UL 认证
品牌/型号
uniwaypo/UWP-50W-2520
| Input Voltage: | AC 100V-240V,50/60Hz |
| Range Voltage: | AC 90V-264V,47/63Hz |
| Output Power: | 50W |
| Output Voltage: | 25V |
| Output Current: | 2A |
| Over Current Protection: | 120% Min |
| Over Voltage Protection: | 150% Min |
| Short Protection: | Auto Recovery |
| Load Regulation: | ±5% |
| GENERAL SPECIFICATIONS: |
| Operating Temperature: | 0 ~ 40°C |
| Operating Relative Humidity: | 5 ~ 95%RH |
| Storage Temperature: | -20 ~ 85 °C |
| Withstanding Voltage: | AC 3000V/Min |
| | (between Input & Output),10mA(Max.) |
| Insulation Resistance: | DC500V 100MΩ(Min.) |
| | (between Input & Output) |
| Efficiency: | 70% Min |
| | |
SAFETY: | UL/CUL,PSE,FCC,CCC |
