150M无线传输速率
支持高清播放器、机顶盒、各大品牌电视机等多功能无线网卡
全球最小的无线网卡!
20/40MHz频道共存，使性能成倍增强
兼容11g、11b设备，通过迅驰兼容性测试
硬件优先级服务，确保带宽敏感的任务优先处理
强大的WPA/WPA2、WPA-PSK/WPA2-PSK安全机制，支持WEP加密
简单易用的用户管理软件，轻松配置无线客户
支持软AP一键切换共享上网
| 支持的标准和协议 | IEEE 802.11g、IEEE 802.11b、CSMA/CA with ACK、 采用IEEE 802.11n（draft 2.0）无线技术 |
| 总线类型 | USB 2.0 |
| 频率范围 | 2.4～2.4835GHz |
| 传输速率 | 11n：最高可达150M |
| 11g：6/9/12/18/24/36/48/54Mbps（自适应） | |
| 11b：1/2/5.5/11M（自适应） | |
| 工作信道数 | 13 |
| 数据调制 | 11b：CCK,DQPSK,DBPSK |
| 11g：OFDM | |
| 11n：OFDM with PSK,BPSK,16-QAM,64-QAM | |
| RF功率 | 20dBm（最大值） |
| 天线增益 | 2dBi内置式智能天线 |
| LED指示 | Status |
| 外型尺寸 | 20*15*6.8 mm |
| 使用环境 | 工作温度：0℃到40℃ |
| 存储温度：-40℃到70℃ | |
| 工作湿度：10%到90%RH 不凝结 | |
| 存储湿度：5%到90%RH 不凝结 | |
| 支持操作系统 | Windows 2000/XP/Vista/WIN 7/LINUX |

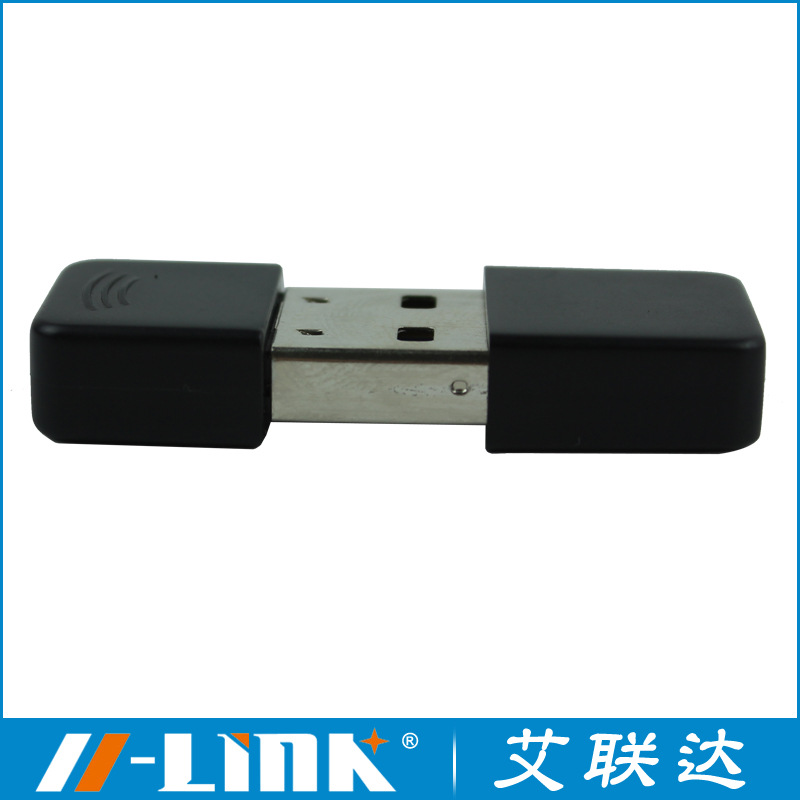

150M wireless usb adapter
Interface USB 2.0
Standards IEEE 802.11b/g/n
Data Transfer Rates 11/54/135/150Mbps
Antenna Type on board Antenna
Wireless Range Indoor/Outdoor(100/300Meters)
Transmit Power 17dbm
Frequency Range 2.4 - 2.485GHz
Network Configuration Ad-Hoc (Peer-to-Peer), Infrastructure
Dimensions 10mm L x 8mm W x 3mm H
Wireless Standards
IEEE 802.11n (draft)
IEEE 802.11g
IEEE 802.11b
Host Interface
High speed USB2.0/1.1 interface
Data Rate
802.11n: up to 150Mbps (downlink) and 150Mbps (uplink)
802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
Frequency Band
2.4GHz ISM (Industrial Scientific Medical) Band
Chipset
Realtek
RF Frequency
2412 ~ 2462 MHz (North America)
2412 ~ 2472 MHz (Europe)
2412 ~ 2484 MHz (Japan)
Radio Channel
1 ~ 14 channels (Universal Domain Selection)
Range Coverage
Up to 3 times farther range than 802.11g
Antenna type
Integrated Antenna
Roaming
Full mobility and seamless roaming from cell to cell
RF Output Power
13 ~17 dBm (Typical)
Modulation
11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
Data Security
64/128-bit WEP Encryption
WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
Network
Auto-switch to use 802.11n or 802.11g or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network
Wireless roaming
Data rate auto fall-back under noisy environment or longer range distance th266809replica watches
Site Survey with Profile function
Configuration & Management
Plug-and-Play setup and installation
Management Utility supports 2000 / XP/ Vista
Media Access Control
CSMA/CA with ACK
LED Indicator
Link/Active ( Green )
Operating System
Windows 2000, XP 32/64-bit, Vista 32/64-bit，
Linux and MAC OS X
Environment
Operating Temperature: 0oC to 40oC
Storage Temperature: -20oC to 75oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95% (Non Condensing)
Compliant
FCC (USA)
CE Mark (Europe)
RoHS Compliant
Wi-Fi Compliant
