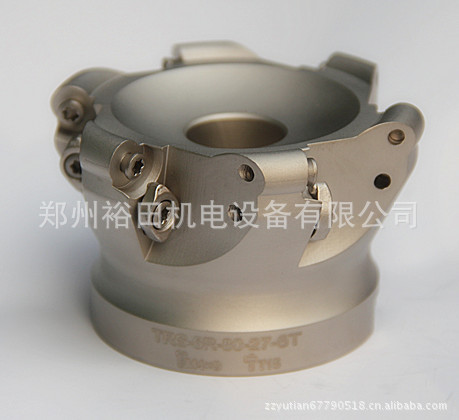

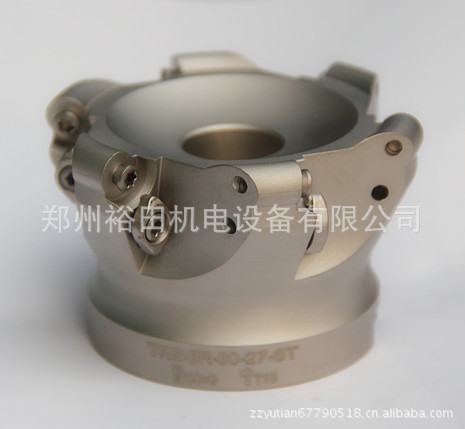

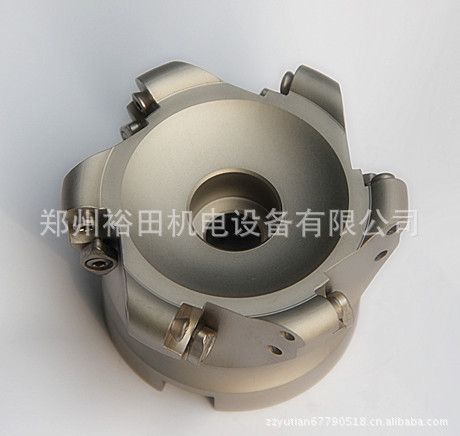

TRS直角台肩面铣刀盘(TRS 8R-63-22-4T)
1、使用15°正角刀片
2、刀片经济，适用性高
3、容屑空间大 排屑好
4、锥形设计，钢性高
型号
Cat.No | 尺寸 Size | 刀片
Insert | 压板
Clamp piece | 螺钉
Clamp screw | 扳手
wrench |

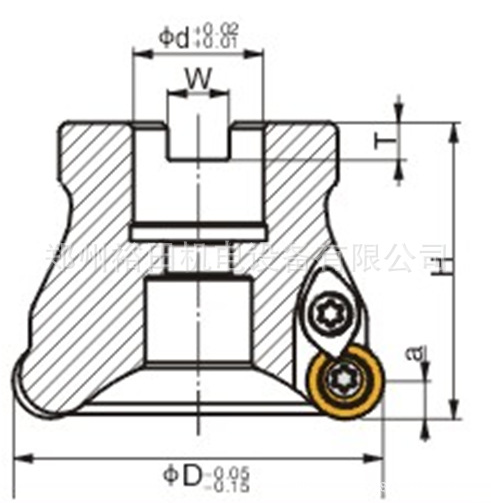

| D | d | H | W | T | a |
| TRS 5R-50-22-4T | 50 | 22 | 50 | 10.4 | 6.3 | 5 | RD 10T3 MO | Y-5R | M4*9
M3.5*10 | T15 |
| TRS 5R-63-22-4T | 63 | 22 | 50 | 10.4 | 6.3 | 5 |
| TRS 5R-80-27-6T | 80 | 27 | 50 | 12.4 | 7 | 5 |
| TRS 5R-100-32-6T | 100 | 32 | 50 | 14.4 | 8 | 5 |
| TRS 6R-50-22-4T | 50 | 22 | 50 | 10.4 | 6.3 | 6 | RD 1204 MO | Y-6R | M4*10 | T15 |
| TRS 6R-63-22-4T | 63 | 22 | 50 | 10.4 | 6.3 | 6 |
| TRS 6R-80-27-6T | 80 | 27 | 50 | 12.4 | 7 | 6 |
| TRS 6R-100-32-6T | 100 | 32 | 50 | 14.4 | 8 | 6 |
| TRS 8R-63-22-4T | 63 | 22 | 50 | 10.4 | 6.3 | 8 | RD 1604 MO | Y-8R | M5*11.5 | T20 |
| TRS 8R-80-27-5T | 80 | 27 | 50 | 12.4 | 7 | 8 |
| TRS 8R-100-32-6T | 100 | 32 | 50 | 14.4 | 8 | 8 |
