产品名Machine Name:全自动纸盒包装机Full Automatic Box Packaging Machine
主要特点Feasures:

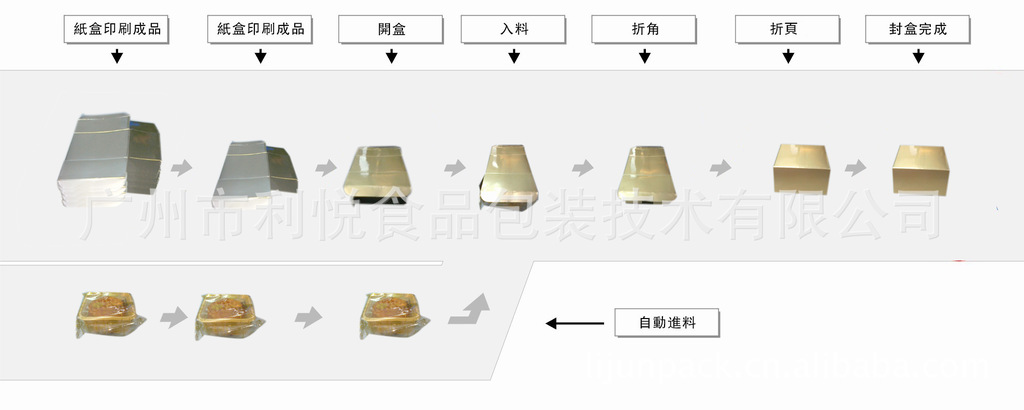

本机是集开盒、装料、折盒、封盒为一体,适用于多品种,多规格的纸盒包装机,由PLC微电脑控制,自动报警,故障提示。具有人机界面控制、操作简单、维护方便等特点。其封盒系统具有自动开盒、进料、折盒、封盒等功能,无须人手。整机架及接触物料的部件全部采用优质不锈钢和铝材,表面进行了抛光处理,外形美观大方,不污染环境。
The machine integrates with carton opening,feeding,foldingand sealing,which can be used for various specifications of cartons.Controlled by PLC microcomputer, the machine possesses thecharactersof human-machine interface operating, auto-alarming, malfunction-indication, easy operation and convenient maintenance, etc.The sealing system is without human help,which contains the functions of opening,feeding.folding, and sealing. The structure and parts of contact products are made of high quality stainless steel and aluminum materials. Besides, the surface of those parts has been polished for nice appearance and is unpolluted.
技术参数
Specifications
电源: 220V
功率: 4kW
频率: 50HZ
气压: 0.6kg/cm
纸厚度: 250-350g/m2
包装速度: 80 cartons per minute
机器尺寸: 3050X860X1600mm
最大包装尺寸: 1500X150X65mm
最小包装尺寸: 70X70X30mm
Power supply: 220V
Power (Kw): 4kW
Frequency: 50HZ
