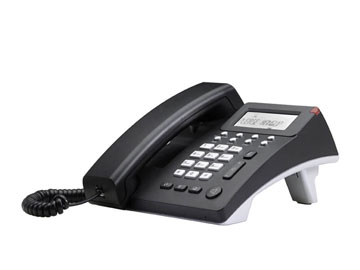

| | AT610P AT610 VoIP phone is an entry level desktop phone terminal which adopts SIP or IAX2 protocols and multiple voice compression codec to directly convert analog voice into IP packet for internet transport, thus effectively using the existing bandwidth to provide PSTN quality voice service.
With Broadcom solution, it offers high quality voice stream , compatible with various Platforms such as Asterisk , FreePBX , Broadsoft , Cisco call manager etc.
The Style of AT610P are exactly in accordance with other phones of ATCOM AT6 series , which is close to the business environment and is solid and reliable. | |
- Features
- Specifications
- Downloads
 | High performance Broadcom solution to support crystal clear voice quality |  | SIP /IAX2 support |  | Back light on LCD display |  | G.722 high definition voice codec support |  | Elastix certified |  | Dual RJ45 port with switch function |  | Full duplex speaker with HIFI voice quality |  | 8 function keys |  | Wall mounted structure |  | Independent RJ9 headset support |  | Customized right tone for different regions |  | Auto provision of configuration by Mac address |  | Power over Ethernet |
| VoIP | - Support SIP 2.0 (RFC3261) or IAX2 and correlative RFCs
- Redundancy sip server capable
- Hotline
- Call Forward、Call transfer、Call hold、Call waiting
- 3-way Talking、Pickup、Join call、Redial、Unredial
- Call Park、vport、click to dial
- DND(Do Not Disturb)
- Black List,Limit List
- E.164 dial plan and customized dial rules
| | Voice | - Codec:G.711(A-law or u-law) 、G722、G723、G726 and G729
- Echo cancellation: Support G.168, and Hands-free can support 96ms, Hand free Speaker Phone
- Support Voice Gain Setting, VAD, CNG
- Tone generation and Local DTMF re-generation according with ITU-T
- AGC(Auto Gain Control)
- AEC(Auto Echo Cancellation)
- VAD (Voice Activity Detection)
- CNG(Comfort Noise Generation
| | Networking | - WAN/LAN: Support Bridge and Router model(optional)
- NAT transverse：support STUN client
- Support basic NAT and NAPT(optional)
- Support PPPoE for xDSL
- Support DHCP Client on WAN
- Support DHCP Server on LAN(optional)
- Support VLAN (optional: voice vlan/data vlan)
- QoS with DiffServ
- Support DMZ(optional)
- Support main DNS and secondary DNS server
- Support DNS Relay(optional)
- Support SNTP Client
- Network tools in telnet server: Including ping, trace route, telnet client
| | Management | - Web ,telnet and keypad management
- Management with different account right
- Upgrade firmware through POST mode
- Upgrade firmware through HTTP, FTP or TFTP
- Safe mode provide reliability
- Support Auto Provisioning (configuration file)
- Support Syslog
| | Hardware | - Segment LCD
- Wall mounting
- Full duplex speaker
| | Interfaces | - WAN * 1
- LAN * 1
- RJ9 handset Jack *1
- RJ9 headset Jack * 1
- Power jack * 1
| | Electric requirements | - Power adapter: output DC 12V/450 mA
| | Compliance Certificates | - CE: EN55024 EN55022
- FCC: part 15
- ROHS in EU
|
|
