"Indispensable in all machines"

Inductive proximity switch for the contactless detection of metal objects

My companya development pioneer and one of the leading manufacturers of inductive sensors – the heart and soul of all machines. As inpidual items or in large quantities - we deliver standard products in various housing sizes with different sensing distances. But always with the same high quality.



Model Name ELG3-1890R121 Part No. 1026180   At a glance   Up to 128 beams   Different beam separations 30 mm and 60 mm   High functional reserve (gain) for ranges up to 12 m   Potentiometer for sensitivity setting   Ambient light up to 150,000 lux   Tough, aluminum housing   PNP/NPN/relay output and a test input   Optical synchronization Your benefits   Insensitive to ambient light when exposed to direct sunlight, strobe lights, and highly reflective objects, eliminating false trips   High functional reserve (excess gain) ensures operation even if it gets dirty, dusty, or misaligned, reducing maintenance costs   Efficient and effective way to combine multiple sensors in one housing with one connector   Simple commissioning thanks to a larger optical aperture angle and manual fine adjustment option   Optical synchronization enables quick installation and cost-effective connection   The sensitivity adjustment can be used to detect or ignore translucent materials to reduce production problems



Features
	Technology:	Sender/receiver
	Task:	Switching light grid
	Minimum detectable object (MDO):	≤Parallel beam: ≥ 35 mm ... 65 mm
	Beam separation:	30 mm
	Number of beams:	64
	Detection height:	1,890 mm
	Evaluation beams:	Parallel beam



Performance
	Maximum range:	17 m
	Minimum range:	≥0 mm
	Working range:	12 m
	Response time 1):	Parallel beam: ≥100 ms

1) With resistive load

Interfaces
	Output type:	Relais (DC 60 V, AC 25 V)
	Connection type:	Leitung 5 m
	Test input:	PNP



Mechanics/electronics
	Wave length:	880 nm
	Supply voltage Vs 1):	DC 15 V ... 30 V
	Power consumption 2):	< 100 mA
	Power consumption sender 3):	< 100 mA
	Power consumption receiver 4):	< 100 mA
	Residual ripple:	< 5 Vpp
	Output current Imax.:	100 mA
	Output load capacitive:	100 nF
	Output load inductive:	1 H
	Initialization time:	1 s
	Dimensions (W x H x D):	34 mm x 1,966 mm x 29 mm
	Housing material:	Aluminum
	Indication:	LED
	Synchronization:	Optical
	Enclosure rating:	IP 65
	Circuit protection:	Output Q short-circuit protected Interference suppression VS connections reverse-polarity protected
	Weight:	4,800 g
	Front screen:	PMMA
	Pulse rate:	250 kHz
	Output mode 5):	Light switching

1) 2) 3) 4) Typical value  5) NC = closed in case one beam is interrupted, NO = closed in case all beams are free

Ambient data
	Protection class:	III
	EMC:	EN 60947-5-2
	Ambient temperature:	Operation: -25 ... 55 °C Storage: -40 ... 70 °C
	Ambient light safety 1):	Indirect: ≤ 150,000 lx
	Vibration resistance:	5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
	Shock load:	10 g / DIN EN 60068-2-29 / 16 ms

1) Sunlight

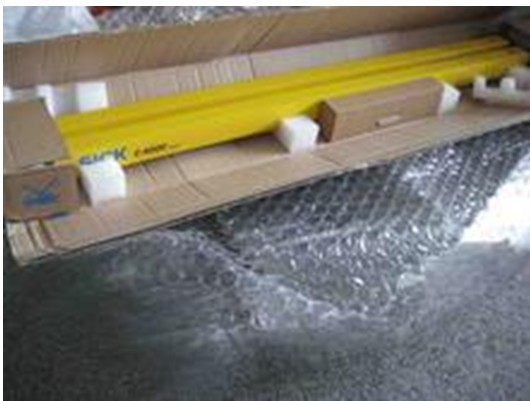

产品图片
