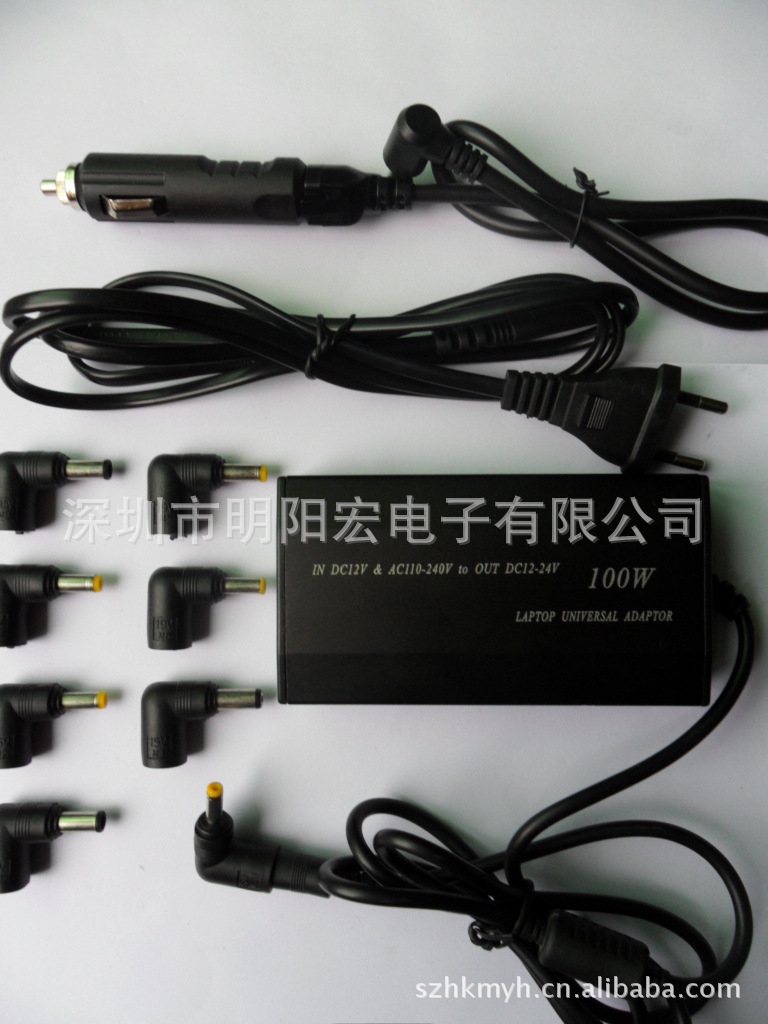

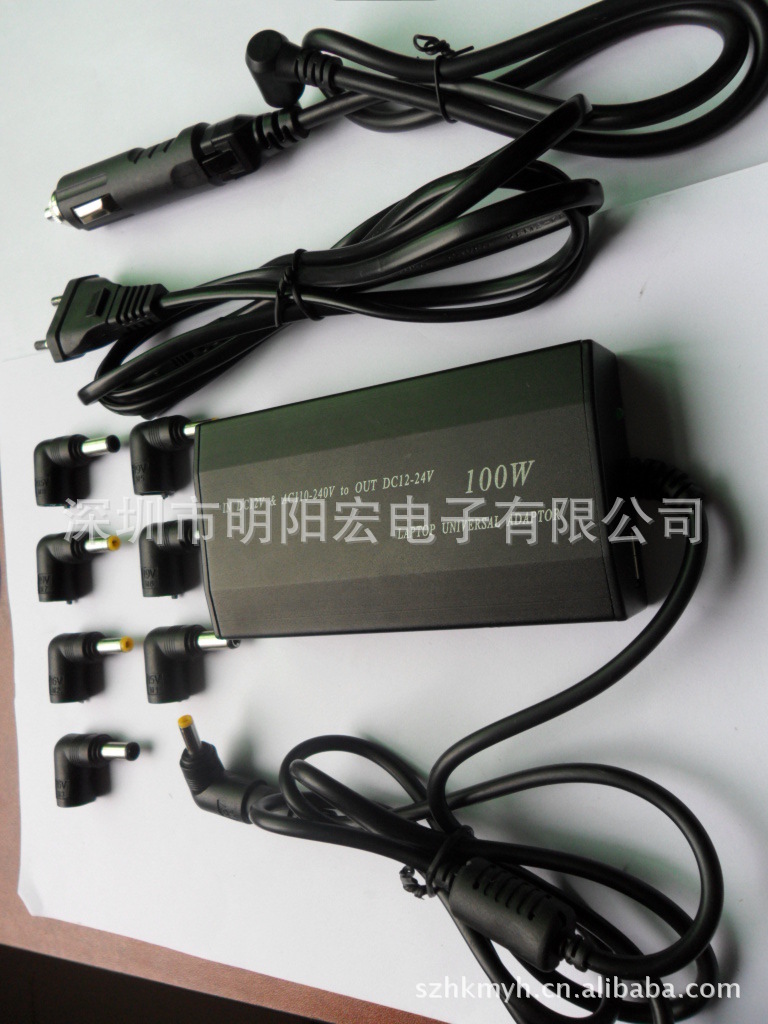

Automatic 100W 2in1 universal AC & CAR ADAPTER for laptop
Automatic 100W 2in1 universal AC & CAR ADAPTER for laptop
This model is 100W 2in1 universal AC/DC for laptop and 5V USB digital adapter , with 5V USB port, charge most brands laptop in car or home ,also can charge Mobil phone , PDA,MP3,…at the same time, automatic choice the output voltage by the automatic tips .
8 Output pins:
8 Standard Tips Compatible Model
M1 15.0V(6.3*3.0) Toshiba
M2 16.0V(5.5*2.5) IBM/ Lenovo
M3 16.0V(6.5*4.4) Sony/Fujitsu
M4 18.5V4.8*1.7) HP/Compaq
M5 19.0V(5.5*2.5) Acer/ Compaq/Delta/HP/Fujitsu/Gateway/Toshiba/Liteon
M6 19.0V(5.5*3.0) Samsung
M719V(5.5*2.1) Acer/ Compaq/Delta/HP/Fujitsu/Gateway/Toshiba/Liteon
M8 19.5V(6.5*4.4) Sony
The follow 3 functions be use description.
Function 1:
AC adapter part :Operation at input AC 110V to 240V 1.5A 47-63HZ,,output DC15,16,18.5,19V,19.5V, 100watt max,with Overload protection ,Over voltage protection ,Short Circuit protection , power supply by mains supply.
Function 2:
DC adapter part :Operation at input DC 11-14V 10A Max, output DC15,16,18.5,19V,19.5V,100Watt max,with Overload protection, Short Circuit protection ,power supply by CAR 12V
Function 3:
Output with USB 5V power ports, use a USB connector can charger mobile telephone ,MP3,MP4,PDA …etc at the same time .
Select The right automatic tips to suit to laptop before use.
1、.AC adapter part electric characteristics:
No. | Item | Specification |
1．1 | Rated Input Voltage | AC120V -AC240V |
VibrationInput Voltage Range | AC110V-240V | |
1．2. | Input Rated Current | 1.5AMP |
Input Min. Current | 0.1A | |
1．3. | Input Power | 100W |
Efficiency | >80%(TYP) | |
1．4. | Output voltage:15,16,18.5,19.5V(+/-5%V NO LOAD)
| DC15-19.5V(5A MAX) |
1．5
| Output voltage:15,16,18.5,19.5V/(+/-5% load)
| DC15-19.5V(5A MAX)
|
1．6 | Output power:100watt max |
|
1．7 | Overload protection | YES |
1．8 | Short Circuit Protection | YES |
1．9 | Line Regulation | +/-5% |
1．10 | Load Regulation | +/-5% |
2、.Car adapter part electric characteristics:
No. | Item | Specification |
2.1 | Rated Input Voltage | DC12V |
VibrationInput Voltage Range | DC11V-14V | |
2.2. | Input Rated Current | 10AMP |
Input Min. Current | 0.1A | |
2.3. | Input Power | 100W |
Efficiency | >80%(TYP) | |
2.4. | Output voltage:15,16,18.5,19.5V(+/-5%V NO LOAD)
| DC15-19.5V(5A MAX) |
2.5
| Output voltage:15,16,18.5,19.5V(+/-5%V load)
| DC15-19.5V(5A MAX)
|
2.6 | Output power :100watt max |
|
2.7 | Overload protection | YES |
2.8 | Short Circuit Protection | YES |
2.9 | Line Regulation | +/-5% |
2.10 | Load Regulation | +/-5% |
3、USB 5V power port Electric Characteristics:
No. | Item | Specification |
3.1 | USB Output voltage:5.0V (-0.5~+1.2V NO LOAD)
| Marked:5V |
3.2
| USB Output short circuit current:1.0+/-0.5 A | 1.0AMP max |
3.3 | Short Circuit Protection | YES |
3.4 | Line Regulation | +/-5% |
3.5 | Load Regulation | +/-5% |
4、.Output voltage compatible with:
5、.Weight:
6、Case Size:118mm×63.8mm×27mm ±1mm
7、. Normal Operating Temperature and Humidity:
7.1 Operating Temperature: 0℃to 40℃
7.2 Humidity: 20% to 80%
8、. Storage Temperature and Humidity:
8.1 Storage Temperature: -10℃to 70℃
8.2 Humidity: 10% to 90%
工作环境
温度：0℃--＋45℃
湿度：0％--70％
电源指示：电压指标灯
输入接口：8字尾AC电源线（输入插头可根据客户需求定做，如：英规AC线，美规AC线，中规AC线，欧规AC线，澳规AC线，韩规AC线等）
输出接口
1：多功能转接线（通用市面上常规笔记本电脑接口）
2：标准USB4P，可为MP3，MP4，手机等产品充电
电气性能
具备保护功能
输出过压，过流，短路保护
输入电压
1：AC110-240V
频率：50/60Hz
输出功率：90W
输出电压：DC15/16/18.5/19.5/20V（通过DC头自动识别不同电压）
适用产品：MP3，MP4，手机等产品充电电源液晶显示器，笔记本电脑电源
