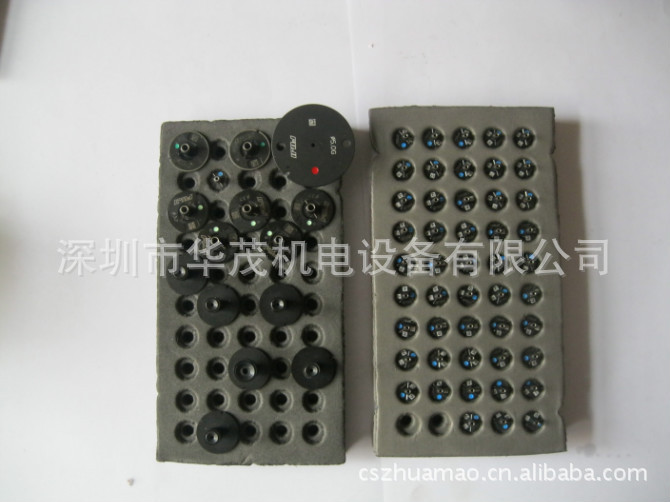

YAMAHA 66A吸嘴 YAMAHA YVL88吸嘴

PART NO.:KV7-M7760-A1X

PART NAME:#62A

SIZE:MELF

YAMAHA CL款72mm飞达配件料号

KW1-M452U-000 SUB LEVER
ASSY 1 AS -A24-1116

KW1-M7510-000 BODY ASSY 1 AS -A56-1101

1 SPRING HOOK PIN 1 CTF-A08- 211-B-2

2 RACKING LEVER GUID PIN 1 CTF-A12- 706

3 KW1-M452D-000 COIL SPRING 1 CTF-M08- 511-1

4 KW1-M221F-100 STOPPER PIN 1 CTF-M12- 313

5 K87-M211B-000 BACK STOPPER AXIS 1 CTF-M12- 315

6 KW1-M552R-000 LEVER METAL 1 FTA-A32-1108

7 RACKING POLE 1 FTA-A08-1111

8 KW1-M4521-000 METAL 1 FTA-A24-1103

9 KW1-M4523-000 SPROCKET 1 FTA-A24-1104

10 RACKING LEVER 1 FTA-A24-1105

11 KW1-M4524-000 RATCHET 1FTA-A24-1107

12 KW1-M452H-000 THRUST WASHER 1 FTA-A24-1109

13 POLE AXIS 1 FTA-A24-1110

14 KW1-M451H-000 BACK STOPPER 1 FTA-A24-1114

15 KW1-M229K-00X SPRING 1FTA-A12-1164-430

16 SUB LEVER 1 FTA-A24-1116

17 KW1-M4577-000 MAIN ARM 1 FTA-A24-1117

18 STUD 1 FTA-A24-1118

19 KW1-M7511-000 BODY 1 FTA-A56-1101

20 KW1-M552F-000 BEARING 1 MB0808DU

21 K87-M111P-000 SCREW,FLAT HEAD + 6 P2MK-3

22 K87-M111V-000 SCREW SET 2 4MY-5-F

23 K87-M55BL-000 U NAT 1 4MH-U

24 K87-M1115-000 CIRCULAR RIVET 1 2-10

25 K87-M11B9-000 CIRCLIP E 1 E-24

KW1-M454A-00X LOCK LEVER ASSY 1 AS -A24- 1127

KW1-M7540-000 TAPE GUIDE ASSY 1 AS -A56-1119-D

1 COIL SPRING 1 CTF-A08- 228

2 LOCK LEVER 1 CTF-A12- 127

3 KW1-M4512-00X KNOCK PIN (FRONT) 1 FTA-A24- 1102-F

4 K87-M5513-000 KNOCK PIN (REAR) 1 CTF-A32- 402-2

5 K87-M111G-100 PUSH PIN (L=10) 1 CTF-M08- 325

6 K87-M213L-000 GUIDE AXIS 1 CTF-M12- 22

7 COIL SPRING 1 CTF- 18- C

8 KW1-M554P-000 GUIDE AXIS 1 FTA-A32-1124

9 TAPE GUIDE PLATE 1FTA-A56-1119-D

10 SHUTTER PLATE 1 FTA-A56-1120-D

11 SHUTTER PIECE 1 FTA-A32-1120-1

12 RIVET 4 FTA-A24-1120-2

13 SHUTTER GUIDE 1 FTA-A24-1120-3

14 SHUTTER COVER 1 FTA-A24-1120-4

15 SHUTTER GUIDE PIN 2 FTA-A24-1122-B

16 KW1-M554N-000 GUIDE AXIS 1 FTA-A32-1123

17 KW1-M4523-000 SPROCKET 1 FTA-A24-1104

18 KW1-M752P-000 SPROCKET AXIS 1 FTA-A56-1112

19 KW1-M552F-000 BEARING 1 MB0808DU

20 K87-M23BG-000 ELBO CONNECTOR 1 KJL04-M3

21 K87-M5683-000 AIR HOSE (L240) 1 U4B-240

22 K87-M111P-000 SCREW,FLAT HEAD + 3 P2MK-3

23 K87-M111R-000 SCREW,SET 4 3MY-5-F

K87-M2131-000 CLAMP LEVER UNIT 1 AS2-A12- 790-C

K87-M2132-100 CLAMP LEVER ASSY 1 AS1-A12- 790-C

K87-M213A-000 CLANK ARM ASSY 1 AS2-A08- 791-B

1 CLANK ARM 1 CTF-A08- 791-B

2 K87-M113D-000 ARM 2 CTF-A08- 792-D

3 K87-M113E-000 HINGE PIN 2 1 CTF-A08- 798-B

4 CLAMP LEVER 1 CTF-A12- 790-C

5 CLAMP PIN 1 CTF-A12- 793-90

6 K87-M213M-000 AXIS PIN 1 CTF-A12- 795

7 K87-M213L-100 CLAMP LEVER AXIS 1 CTF-A12- 796

8 HINGE PIN 1 1 CTF-A12- 797

9 PIN 1 CTF-A32- 623-2

10 K87-M113H-000 PUSH PIN (L=10) 1 CSF- 47- 24

11 K87-M111Y-000 SCREW,SET 1 4MY-4-F

12 K87-M111V-000 SCREW,SET 1 4MY-5-F

KW1-M4592-000 INDENTATION LEVER ASSY 1 AS -A24-1159

KW1-M459G-000 SUB LEVER ASSY 1 AS -A24-1160-B

KW1-M5593-000 REEL SHAFT ASSY 1 AS -A32-1152-C

KW1-M759N-000 METAL ASSY 1 AS -A56-1153-D

K87-M559A-000 DRIVE GEAR ASSY 1 AS2- 42- 62-C

1 KW1-M459P-000 METAL PIN 2 CTF-A12- 653-1

2 KW1-M459Y-000 PLANE WASHER 1 CTF-A12- 656

3 K87-M539M-000 SPRING 1 CTF-A32- 64-2

4 K87-M119J-000 THRUST WASHER 3 CTF- 42- 60-L

5 K87-M559K-000 INDEX GEAR 1 CTF- 42- 61-BL

6 DRIVE GEAR 1 CTF- 42- 62-C

7 KW1-M459L-000 SUB ARM 1FTA-A24-1146-B

8 KW1-M459V-000 REEL FLANGE 1 FTA-A24-1154-D

9 GEAR AXIS 1 FTA-A24-1156

10 STUD 1 FTA-A24-1158

11 INDENTATION LEVER 1 FTA-A24-1159

12 SUB LEVER 1 FTA-A24-1160-B

13 KW1-M457B-000 PLANE WASHER 1 FTA-A24-1176

14 KW1-M559D-000 REEL SHAFT 1 FTA-A32-1152-C

15 KW1-M759T-000 METAL 1 FTA-A56-1153-D

16 KW1-M759U-000 REEL PLATE 1 FTA-A56-1155-E

17 ONE WAY CRUTCH 1 FC-4K

18 K87-M219E-100 ONE WAY CRUTCH 1 FC-6

19 K87-M5596-000 OILLESS BEARING 1 80B-0808

20 KW1-M459R-000 MAGNET 2 6-3

21 K87-M11BB-000 SCREW,FLAT HEAD + IB 5 P2.6MK-5-IB

22 KW1-M45BF-000 SCREW,FLAT HEAD + 2 3MK-16-P

23 K87-M111S-000 SCREW,FLAT HEAD + 1 3MK-6-P

24 K87-M11B9-000 CIRCLIP E 1 E-24

25 KW1-M459S-000 STRAIGHT PIN 2 4N-9.8 A

KW1-M451G-000 LEVER ASSY 1 AS -A24-1145

KW1-M458A-000 SET PLATE ASSY 1 AS -A24-1167

1 KW1-M458E-000 RING SCREW 2 CTF-A12- 566-1

2 K87-M538C-000 POSITION PLATE 1 CTF-A32- 49-2

3 K87-M531D-000 SPRING 1 CTF-A32- 347

4 K87-M2316-000 THRUST WASHER 2 CTF- N2- 06

5 KW1-M4585-000 METAL 1 CTF-N32- 166-B1

6 SPRING HOOK PIN 2 CTF- 42- 11-2

7 K87-M2382-000 CYL CONNECTOR 1 CTF- 53- 63-Y

8 K87-M1184-000 CONNECT PIN 1 CTF- 53- 64

9 K87-M2317-000 CAP 1 CTF- 54- 43

10 STUD 2 CTF- 54- 44

11 K87-M2387-000 PLANE WASHER 1 CTF- 54- 66-1

12 LEVER METAL 1 FTA-A24-1142

13 LEVER 1 FTA-A24-1145

14 KW1-M4584-000 ADJUST PLATE 1 FTA-A24-1148-B

15 SET PLATE 1 FTA-A24-1167

16 K87-M2381-000 AIR CYLINDER 1 PBSA 16_30-7

17 K87-M56C1-000 CONNECTOR 1 BF4BU

18 KW1-M4586-000 UNIVERSAL ELBOW 1 UEF

19 K87-M111S-000 SCREW,FLAT HEAD + 5 3MK-6-P

20 KW1-M45BG-000 SCREW,FLAT HEAD + 4 3MK-10-P

21 K87-M23B6-000 SCREW,FLAT HEAD + 2 4MK-8-P

22 K87-M11B9-000 CIRCLIP 1 E-24

23 KW1-M458F-000 DOUBLE RING 2

KW1-M456N-000 REEL COVER ASSY 1 AS -A24-1173

KW1-M7560-000 REEL PLATE ASSY 1 AS7-A24-1174-D

1 THRUST WASHER 1 CTF- 53- 70

2 GUIDE PIN 1 FTA-A24-1139-B

3 HOOK PIN 2 FTA-A24-1161

4 TENSION LEVER 1 FTA-A24-1169-B

5 KW1-M456C-000 SPRING 1 FTA-A24-1169-240

6 COVER 1 FTA-A24-1173

7 SCREW 1 FTA-A24-1173-1B

8 REEL PLATE 1 FTA-A24-1174-D

9 REEL FLANGE 1 FTA-A24-1178-B

10 REEL SHAFT 1 FTA-A32-1151-C

11 REEL AXIS 1 FTA-A56-1172-B

12 KW1-M7567-000 GUIDE PLATE 1 FTA-A56-1177-C

13 K87-M23BL-000 SCREW TRUSS HEAD 4 T3M-5-P

14 KW1-M22B5-000 BOLT,HEXAGON SOCKET HEAD 2 3MX-6-P

15 K87-M11BE-000 WASHER 2 3MV (3V-0.5-8-P)

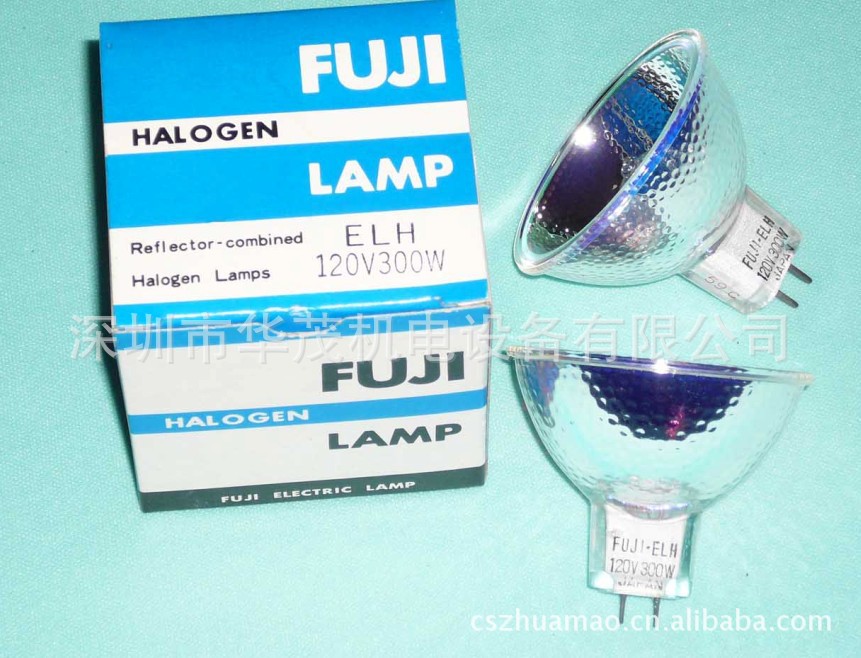

FUJI灯泡主要规格型号一览表
