特点：※采用精密自动履链式送料，避免断指事故，并提高生产效率。

              Assumed the use of precision automatic chain feeding, avoid finger  accidents,

       and improve productivity.

       ※   设有上下双重反弹装置，操作更安全。

                With upper and lower double bounce device,operation safer.

 技术参数：

Technical parameters:

锯切厚度Cutting thickness                5～85mm

最小锯切长度Minimum cutting length          100mm

最大锯片尺寸Maximum blade size              Φ355XΦ50.8mm

送料速度Feeding speed1                      0—26m/min

锯轴转速Saw shaft speed                    3500r/min

锯轴电机功率Saw spindle motor power        7.5kw

送料电机功率Feeding motor power            1.5kw

升降电机功率Lifting motor power                                0.37kw

小图解说:

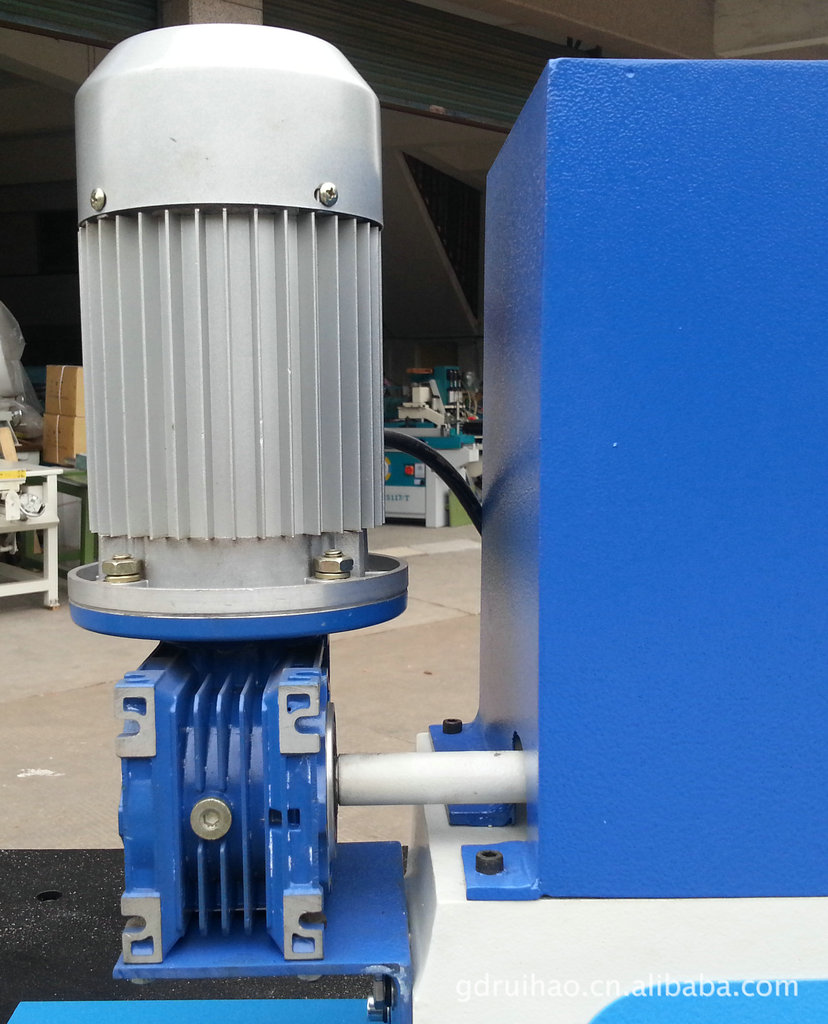

采用电动升降,调节更方便.

Electric lift adjustment more convenient.

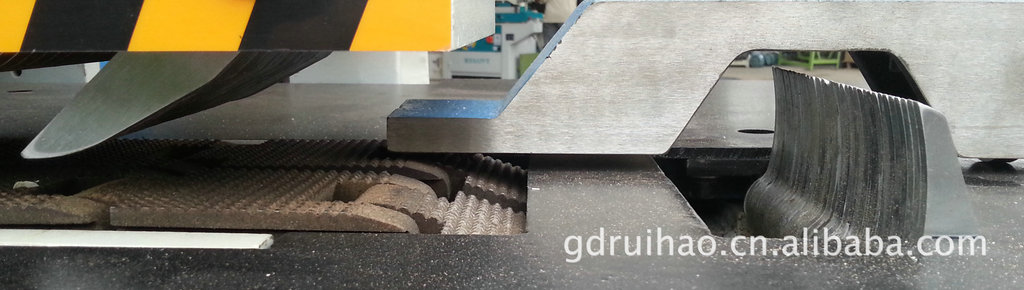

上下防反弹装置，彻底保护操作者。

Anti-rebound device, complete protection of the operator.

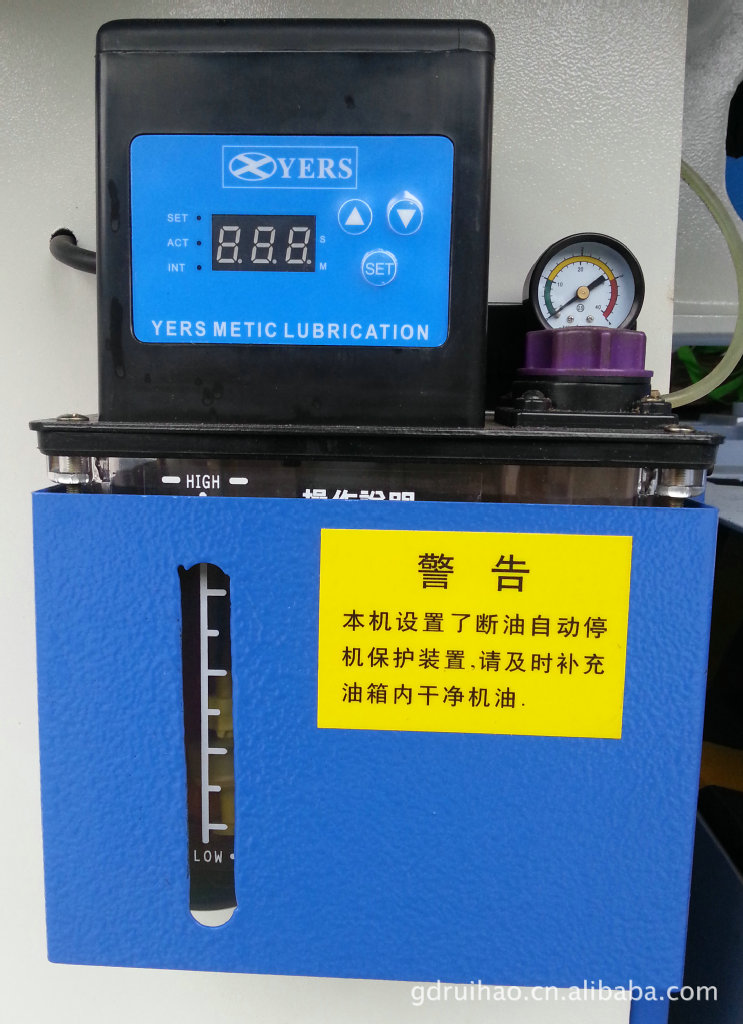

自动定时供油系统，延长机械的使用寿命。

Automatic oil supply system time to extend the service life of machinery.

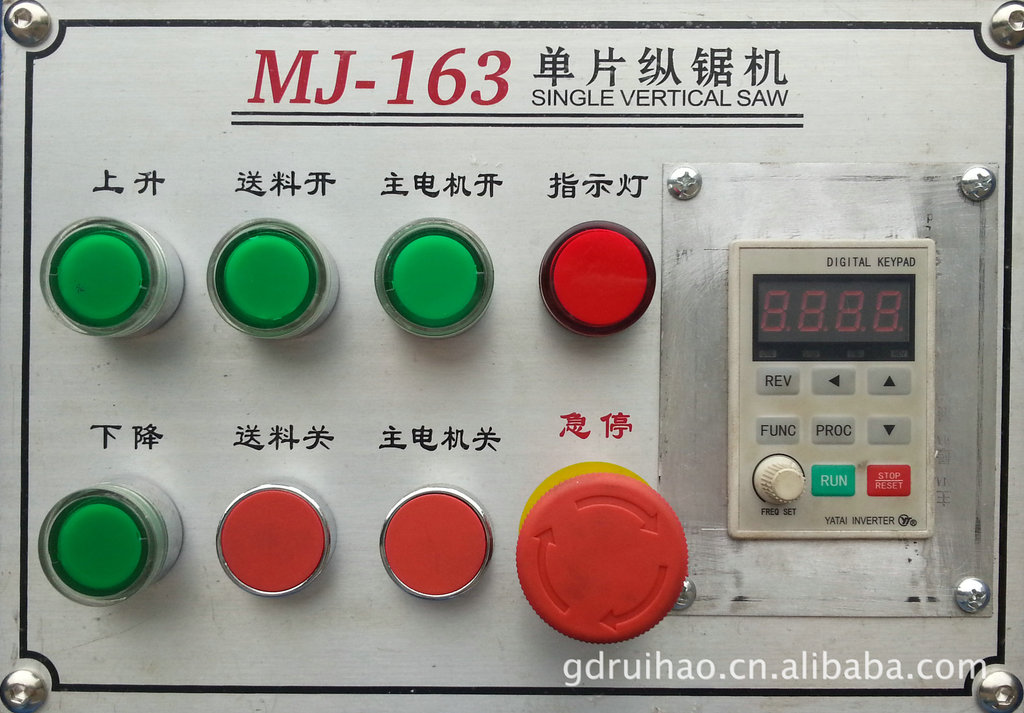

送料速度采用变频调速，适合各类木材的加工。

Feeding speed frequency control, suitable for all kinds of wood processing.

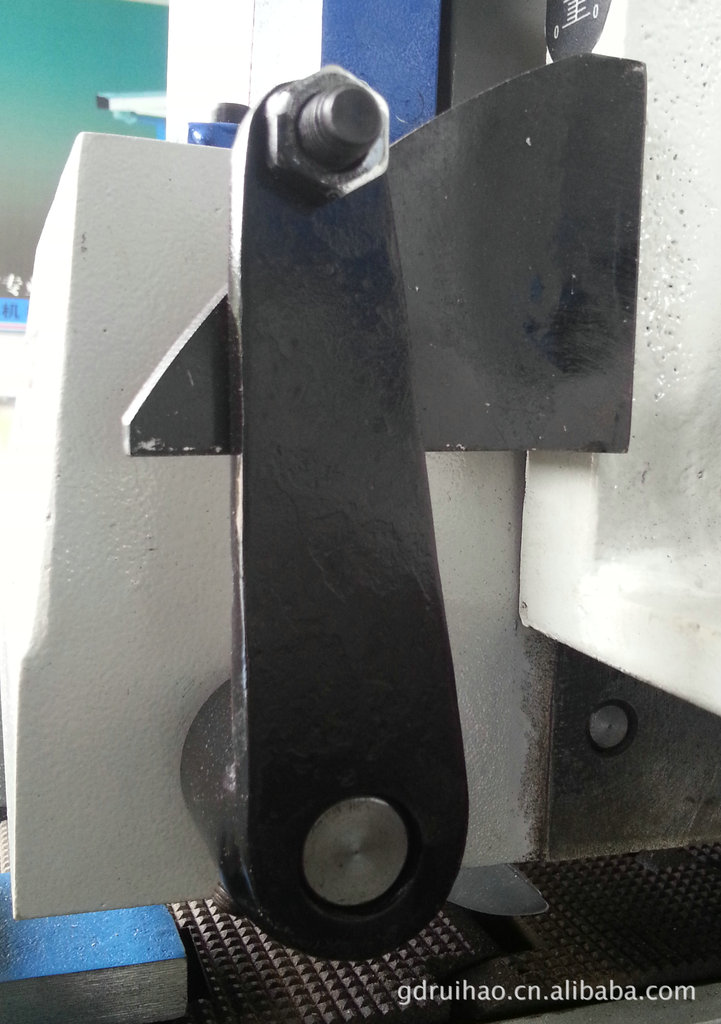

上防反弹装置升降限位.

This the the upper anti-of rebound device is for lift Limit..
