产品技术参数:
产品型号 | 牵引电机 | 切断电机 | 调直电机 | 调直转速 | 调直范围 | 重量 | 外形尺寸 |
GT4-14C | 4KW-4P | 4KW-4P | 7.5KW-4P | 50-65m/min | 4-14mm | 1380kg | 3150×800×1200 |
产品优点:
产品优点Advantages of the products
★采用可调速的牵引电机，确保了进料可靠，同时避免钢筋划伤或受损状况。
★用于控制调直和切断过程的编码器，一次性能记忆10次不同长度不同数量钢筋的设置，在数字显示屏上即可完成所有批次设置，操作简单快速。

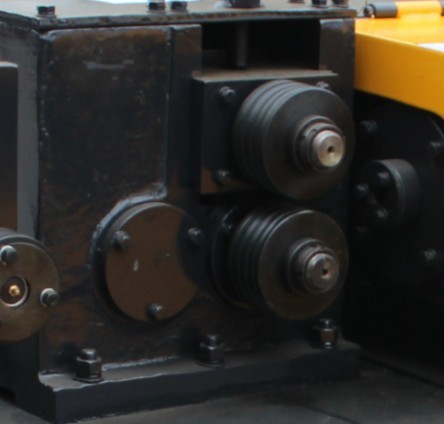

★调直轮，方形刀片和圆形刀片均由热处理（淬火）过的优质合金钢制成，可在重负荷下工作，且使用寿命长
Advantages of the products
★GT4-14CG has adjustable speed and traction motor to ensure reliable bar pulling-in and to avoid scratches or rigidity loss.
★DIGITAL CONTROL by the control cabinet that features the ENCODER for the straightening and cutting adjusting, it can memorize multiple setting of different length and number of pieces.
★STRAIGHTENING WHEELS , SQUARE BLADE, ROUND BLADE made of high-quality alloyed steel with proper heat treatment (quenching) 3mm thick external case to ensure high performances also under heavy loads and long working life.
