叉型预绝缘端头 （TU-JTK型）、冷压端子、接线端子
品牌/型号
美科达/叉型预绝缘端头 （TU-JTK型）、

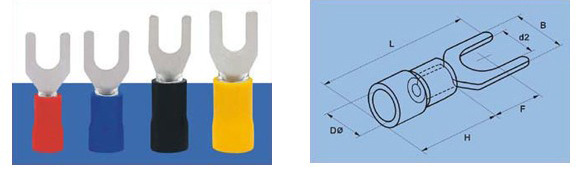

导线截面:0.5 - 1.5 mm²(美国线规 22 - 16 ) 最大电流:Imax = 19A | | 型 号 | 尺寸 | 颜色 | | 美制螺栓号 | 螺栓口直径 | B | L | F | H | DΦ | | d2 | mm | mm | mm | mm | mm | | SV1.25 - 3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | 红 | | SVS1.25 - 3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | | SVL1.25 - 3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | | SVS1.25 - 4 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | | SVM1.25 - 4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | | SVL1.25 - 4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | | SVS1.25 - 5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | | SVL1.25 - 5 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 | | SVS1.25 - 6 | 1/4 | 6.5mm | 9.5 | 21.2 | 6.5 | | SVL1.25 - 6 | 1/4 | 6.5mm | 12.0 | 27.2 | 11.0 |
导线截面:1.5 - 2.5 mm²(美国线规 16 - 14) 最大电流:Imax = 27A | | 型 号 | 尺寸 | 颜色 | | 美制螺栓号 | 螺栓口直径 | B | L | F | H | DΦ | | d2 | mm | mm | mm | mm | mm | | SV2 - 3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | 蓝 | | SVS2 - 3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | | SVL2 - 3.5 | #6 | 3.7mm | 6.0 | 21.2 | 6.5 | | SVS2 - 4 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | | SVM2 - 4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | | SVL2 - 4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | | SVS2 - 5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | | SVL2 - 5 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 | | SVS2 - 6 | 1/4 | 6.5mm | 9.5 | 21.2 | 6.5 | | SVL2 - 6 | 1/4 | 6.5mm | 12.0 | 27.2 | 11.0 |
导线截面:2.5 - 4 mm²(美国线规 14 - 12) 最大电流:Imax = 37A | | 型 号 | 尺寸 | 颜色 | | 美制螺栓号 | 螺栓口直径 | B | L | F | H | DΦ | | d2 | mm | mm | mm | mm | mm | | SV3.5 - 4 | #8 | 4.3mm | 8.0 | 24.8 | 7.0 | 12.5 | 6.2 | 黑 | | SV3.5 - 5 | #10 | 5.3mm | 8.0 | 24.8 | 7.0 | | SV3.5 - 6 | 1/4 | 6.5mm | 12.0 | 28.0 | 12.1 |
导线截面:4 - 6 mm²(美国线规 12 - 10) 最大电流:Imax = 48A | | 型 号 | 尺寸 | 颜色 | | 美制螺栓号 | 螺栓口直径 | B | L | F | H | DΦ | | d2 | mm | mm | mm | mm | mm | | SV5.5 - 3.5 | #6 | 3.7mm | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | 黄 | | SVS5.5 - 4 | #8 | 4.3mm | 8.3 | 25.2 | 7.5 | | SVL5.5 - 4 | #8 | 4.3mm | 9.0 | 25.2 | 7.5 | | SV5.5 - 5 | #10 | 5.3mm | 9.0 | 25.2 | 7.5 | | SVS5.5 - 6 | 1/4 | 6.5mm | 9.0 | 25.2 | 7.5 | | SVL5.5 - 6 | 1/4 | 6.5mm | 12.0 | 31.2 | 12.0 | | SV5.5 - 8 | 5/16 | 8.4mm | 14.0 | 30.0 | 11.5 |
|
| |
| |
