TEM NO

HX-280W-M

MONO or POLY

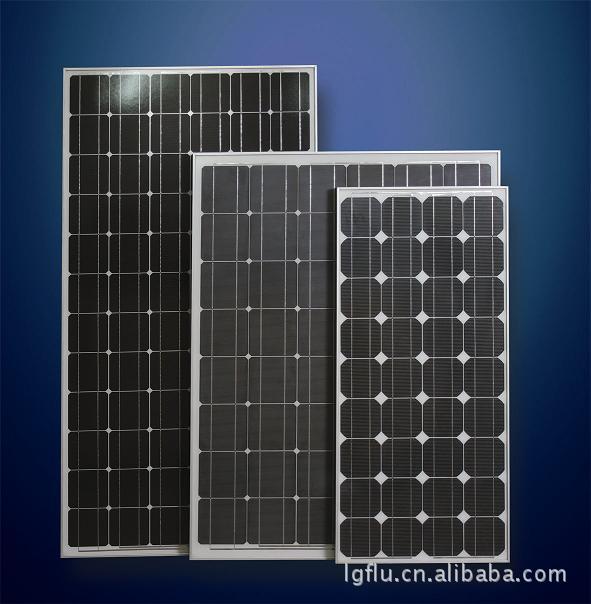

MONO

Maximum power (Wp) 最大功率

280WM

Maximum power voltage (V) 最大电压

                                           36

Maximum power current (A) 最大电流

7.78

Open circuit voltage (V) 开路电压

43.2

Short circuit current (A)  短路电流

8.24

Size of module (mm)     尺寸

1961*995*50mm

Brand Name of Solar Cells   品牌名称

WONENG

1000

Temperature coefficients of Isc (%)短路电流的温度系数

+ 0.1/℃

Temperature coefficients of Voc (%)开路电压的温度系数

-0.38/℃

Temperature coefficients of Pm (%) 最大功率的温度系数

-0.47/℃

Temperature coefficients of Im (%) 最佳工作电流的温度系数

+0.1/℃

Temperature coefficients of Vm (%)最佳工作电压的温度系数

-0.38/℃

Temperature Range               温度范围

-40℃～+80℃

Tolerance Wattage (e.g. +/-3%)   误差瓦数

+/-3%

Surface Maximum Load Capacity   表面最大承压能力

60m/s(200kg/sq.m)

Allowable Hail Load           抗冰雹能力

steel ball fall down from 1m height

Weight per piece (kg)          单片重量

26

Junction Box Type             接线盒类型

PV-RH0301

Connectors and Cables Type     连接器和电缆类型

Length of Cables (mm)          电缆长度

90mm

Cell Efficiency (%)              电池片效率

≥16.25%

Module Efficiency (%)           组件效率

＞13%

Output tolerance (%)            输出误差

+/-5%

Frame (Material, Corners, etc.)框架（材料，角度）

Aluminum

Standard Test Conditions      标准测试条件

AM1.5  100mW/cm2  25’C

Warranty                      质保

3years product warranty and 20years 80% of power

FF (%)                      转换效率

≥72%

Life                            使用寿命
