Electrical Rating : 2A 250VAC/125VAC,
6A 250VAC/10A125VAC (UL)
10A 250VAC/15A 125VAC(UL)
10(4)A 250 VAC (VDE)
Mechanical life: Over 30000 cycles
Electrical life: Over 10000 cycles
Contact resistance: <20m?
Insulation resistance: >1000M?
High voltage resistance: >1500VAC 1 min.
Ambient temperature: Terminal side -20 to +85?!
Bduvbujoh!side- 20 to +55?
Atmospheric humidity: Max.85%
Actuating force: 3 to 6N(depends on different switch function)
Flammability: UL94V-2 & UL94V-0
Storage temperature: -30 to +80?!Max
Temperature rise at the terminal: 30?!(UL1054)
Solder ability of terminal: Max 350?!3s
Housing: PA 66
Rocker: PA 66 & PC
Contacts: Silver alloy
Terminal: Copper or brass silver plated
Spring: SWC
Movable arm: Copper silver plated

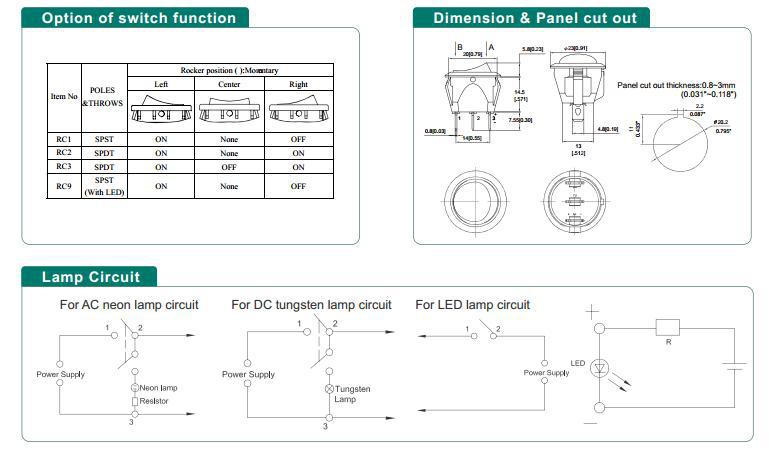

Lamp: Neon lamp, Tungsten lamp, LED
Bracket: PA66
