品牌/型号

仁钢-Rengang/15051H2BL

是否提供加工定制

否

类型

轴流风扇

品牌

仁钢-Rengang

型号

15051H2BL

电机功率

35（w）kW

电压

220（V）V

电流

0.22（A）A

适用范围

机柜，工控设备

风量

190CFM

转速

2600RPM

散热风扇详细说明：
散热风扇型号：RG15051B3/S3 RG15051B2/S2 RG15051B1/B1
散热风扇电压：380V/220V/110V
散热风扇所用的轴承：滚珠/含油
包装:24台/箱纸箱包装（内箱、外箱）
售后服务：一年之内免费维修、调换
散热风扇的特点：产品风压、风量大，寿命长，噪音低，运转稳定性好，并有通过ＵＬ、CE、CCC、等安规认证！可根据您的要求订做非标准品.能提供符合ROHS标准的产品

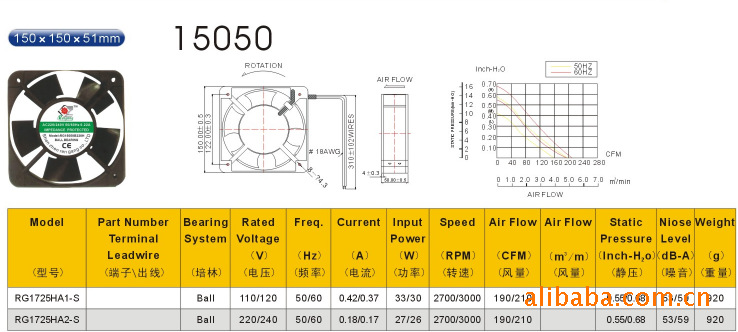

Specifications
11、注意事项(Notes):
11-1、使用时请勿超出本规格所规定之极限，否则我们不保证此产品
We will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.
11-2、倘若要变更此份文件的任何规格，请务必事先提出需求
In case of changes of the specification specified on this document.A written notice is requested in advance.
11-3、请勿触压着叶片以及电源线缠绕着风扇或用用拉扯电源线，如此轴心与电源线将会被损毁
Please do not touch the impeller with the pressure and never bring the fan with lead wire.The bearing and lead wire may be damaged.
11-4、本产品不保证因粉尘、水滴、小虫进入，而影响寿命与不良品产生
No guarantee on the products against the safety problem or failure caused by powder dust, drop of water or insect.
11-5、如有任何资料及文件与此份资料不同，将以此份资料为主要参考
If there is any data or related documentation different from this data sheet.This data sheet is the principle reference.
11-6、请勿在可燃性气体与任何有害环境中使用
Please do not use the fan in the environment of corrosive gas or liquid or any detrimental gas.
11-7、请于六个月内使用，否则风扇存放在很高温或很低温，温度很高或室温中风扇于六个月后会有漏电流产生
Please do not store the fan in the environment of high/low temperature, high humidity or detrimental gas. Please store within six months,every six months,shall be a leakage of electric current to the fan, even though thg fan is stored in roo
11-8、当风扇于运转中，请勿企图将风扇锁死特别长的时间，如此，会因连续停止不转，产生高热而烧毁风扇
While the fan is in operation, please do not lock the fan intentionally for a long periods of time, since the continuous stoppage will result in overheat and thus burnt out the fan
11-9、组装风扇时，请特别注意，因共振或振动产生的噪音
During the installation of the fan, please pay substantial attention to possible notice caused by resonance vibration and shock.
12-10、当搬运或作业中，风扇如从60cm的高度落下，将会对叶片的平衡产生若干影响，特别是滚珠轴承避免掉落
It is very important to notify that avoid to drop from 60cm height when in any movement or operation,it will impact the balance of blade. Especially ball bearing structure is avoided to drop down.
11-11、锁外壳之螺丝扭力不得超 4Kgf
The torque of the screw which locked the frame should not exceed 4 Kgf
