仪器简介：
德国徕卡(LEICA)在智能数字式金相显微镜DM4000M基础上提供了6英寸的移动平台,适合半导体行业对硅片检查的要求.智能化的操控与顶尖光学品质的结合为半导体行业提供高效率的工具.
技术参数：
• 智能型操作, 智能型照明,
• 恒定色温, 图像无颜色差别
• 反射光明场, 暗场, 偏光, 微分干涉, 荧光
• 透射光明场, 暗场, 微分干涉
• M32 六位物镜转换
• 专用平场消色差, 平场半复消色差暗场物镜, 平场复消色差暗场物镜,
• 可接显微硬度仪, 绘图仪, 宏观仪
• 可接微分干涉台阶仪进行高精度测量
• CCD或照相系统,
• 与多种显微图像分析软件共用
• 可升级为其他观察方法
• 无限远光路
主要特点：
1,智能型按键操作, 实现型照明,智能技术使色温恒定, 图像无颜色差别,更可100%记忆并恢复已观察的条件
2,光强,光栏,反射光模块液晶显示屏,显示即时状态
3,手动调焦
4,6英寸硅片专用机械载物台,可配电动.

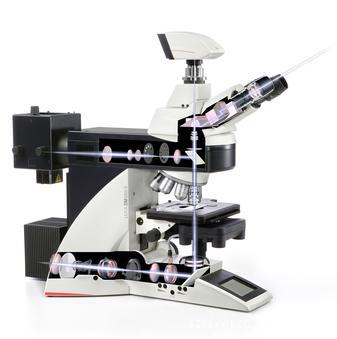

Versatile Upright Microscope for Materials AnalysisLeica DM4000 M
The materials microscopecan be used with all commonincident light contrast methods.It operates with amechanical Z-drive(optional motorized Z-drive) andmechanical stage.The 6-position mechanical objective turret with M32 thread is coded. In combination withautomatic recognitionof the contrast technique, the light intensity automatically adjusts to the objective in use. Thebrightnessof the image remainsconstantwhen switching to a different magnification. These features allow you to concentrate on your work while thecontrast and light managerautomatically adjust the microscope for the best image quality.Also available with a 6”x 6” stage for microelectronic inspection.Your Advantages
Automated contrast and light intensity settingThe motorized incident light axis provides automatic contrast adjustment for brightfield, darkfield, polarization, interference contrast, and fluorescence. The microscope detects the selected objective and contrast method, and then automatically sets the optimal values for aperture, field diaphragm, and light intensity. You can adjust these values at any time and the modified values are automatically stored.Six function keysAssign any function to the six function keys, which are located behind the focus knobs - frequently used functions are always within easy reach, without having to look away from the specimen.Clearly arranged displayThe easy-to-read status display shows all microscope settings at a glance – a convenience unmatched in this class of microscope.Meet specific application needsThe versatile, modular system easily adapts to your application needs.4-position reflector turretThe 4-position incident light turret has two fixed and two variable positions. Additional reflectors or fluorescence filter cubes can easily be placed through the front cover.Microscope AssistantWith the integrated Microscope Assistant, you benefit from the ease and efficiency of full digital integration of microscope, illumination, and microscope camera.
