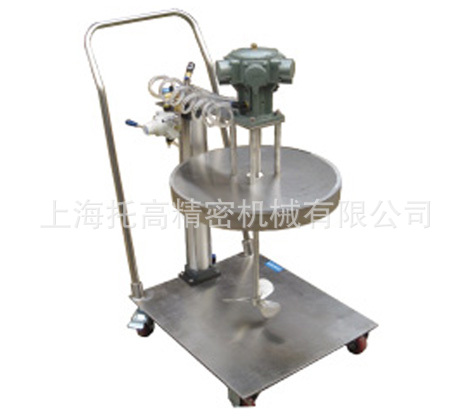

不锈钢定制气动搅拌机
大扭力,高转速,省工省钱.
升降高度:升高后离地650mm
转速:0-800rpm
功率:0.5-5HP
搅拌量:黏度<2000cps时为1500L
黏度<7000cps时为500L
黏度<15000cps时为200L
可选配:不锈钢轴心叶片及减速机
High torque,high speed,efficiency and economy
Floorplate dimensions:620MM*500MM
Lifting height:leave the ground when being lifted 1050MM
Speed:0-800rpm
Power:0.5-5HP
Stirring volume:viscosity<2000cps when 1500L
viscosity<7000cps when 500L
viscosity<15000cps when 200L
Options:stainless steel axis,blade and reduction gear
马达类型 Motor type | 马达型号 Motor model | 马力 horsepower | 轴心尺寸 Size blabe | 叶片 vane | 适应黏度 Adapt viscosily | 机架表面处理 Frame surtace treatment |
活塞式马达 Piston motor | AMP2 | 0.18HP | 轴¢12 *480 | 6 "*1 | 0-2000CPS | 酸洗磷化后, 静电喷塑 颜色:蓝色 可根据要求配色 After pickling phosphate electrostatic pensu Color:blue color available on request |
AMP3 | 0.25HP | 轴¢16 *480 | 6 "*1 | 0-3000CPS |
AMP4 | 0.5HP | 轴¢16 *480 | 8 "*1 | 0-5000CPS |
AMP5 | 0.75HP | 轴¢16 *480 | 8 "*1 | 0-6000CPS |
叶片式马达 Vane motor | AMV0.68 | 0.9HP | 轴¢12 *480 | 6 "*1 | 0-2000CPS |
AMV1.3 | 1.7HP | 轴¢16 *480 | 8 "*1 | 0-3000CPS |
AMV3 | 4HP | 轴¢16 *480 | 8 "*1 | 0-5000CPS |
