我们生产的交流风机/小型交流风机 有以下优势:
散热风扇知识介绍
1.散热风扇的使用范围
散热风扇主要是为解决电脑,电器,机器,电源供应器的散热问题,降低设备的工作环境温度,
包装: 标准纸箱包装(内箱、外箱)
防潮:可以制作
防水:可以制作
认证:CE/UL安规认证
售后服务:一年之内免费维修、调换
散热风扇的特点:产品风压、风量大,寿命长,噪音低,运转稳定性好 。
特殊:可根据客户的要求订做非标准品.能提供符合ROHS标准的产品。
仁钢公司宗旨:
◆经营宗旨:成就自我,服务社会;公德心、进取心为立业之本
◆服务准则:以客为尊,用心至诚,客户需求无小事
◆客户价值:礼尚往来,成人之美;品质为先,有口皆碑
◆经营定位:营造精致生活
◆竞争策略:引领时尚,差异营销,服务至上
◆成功基础:专业诚信,贵在坚持
◆核心价值:开创精细化定位营销新时代
我们生产的散热风扇具有以下优势
◆风机采用最先进的设计,具有风量大,噪音低,寿命长,耐腐蚀等特 。
◆我们拥有强大的工程设计能力,可根据客户要求设计制造特殊化的产品。
◆我们了解各个行业对风机的具体需求,提供多种标准产品供您选择。
◆我们的风机采用优质的轴承,矽钢片,漆包线,具有更高的可靠性。
◆我们提供周到细致的服务,以及快速准时的交货期。
我们的目标:做中国最有优势的散热风扇制造商。

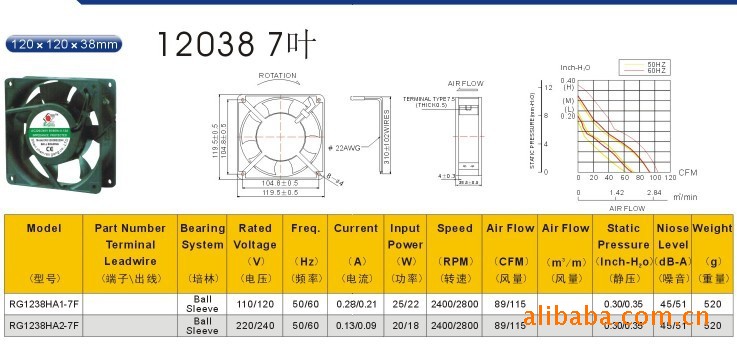

| 规 格 说 明 书 | ||||||||||
| Specifications | ||||||||||
| 6-12、★噪音分贝Accoustic sound vel | 45.0dBA(Max. 20.0dBA) | |||||||||
| 6-12-1、噪音测试说明 Accoustic sound level test descriptions | ||||||||||
| 以额定电压在噪音实验室中测试背景噪音14.9分贝 | 悬吊 Suspension | |||||||||
| At rated voltage in sound proof room |
| 麦克风感应器 | ||||||||
| Background noise:14.9dBA | MIC. Sensor | |||||||||
| 通风状态 | (对准风扇中心) | ★ | ||||||||
| Free air | (Aim to center of the fan) | |||||||||
| 风扇 Fan | ||||||||||
| 6-13、特性定义 Characteristics definition: | ||||||||||
| 6-13-1、额定电流 & 额定转速 & 额定操作功率,须在额定电压下;马达连续转5分钟达到规格下限,10分钟达到正常值 | ||||||||||
| Rated current, rated speed, and rated input power shall reach bottom line of specification after 5 minutes continuous rotation at rated voltage and reach standard specification after 10 minutes continuous at rated voltage. | ||||||||||
| 6-13-2、起动电压是指当突然通电后能够使风扇起动之最低电压 | ||||||||||
| Starting voltage is the least voltage that enables to start the fan by sudden power on. | ||||||||||
| 7、保护功能 Protection: | ||||||||||
| 1、风扇旋转锁定测试:将风扇通电锁死测试至少72小时,当锁定解除之后均仍然正常运转。 | ||||||||||
| Lock test: Locked 200 units for at least 72 hours. Fans work in normally after locked released. | ||||||||||
| 8、安全规格 Safety | UL | CE | TUV | |||||||
| 规 格 说 明 书 | |||||
| Specifications | |||||
| 9、原材料 Material | |||||
| 项次 | 主要元件 | 材质或型式 | 等级 | UL 号码 | 备注 |
| Item | Major components | UL No. | Rmark | ||
| 9-1 | 外框 | 铝框 | |||
| Fan housing | |||||
| 9-2 | 扇叶 | PBT 85% + Fiber 15% | 94V-0 | ||
| Fan blade | |||||
| 9-3 | 轴心 | 不锈钢 | |||
| Stator core | Stainless steel | ||||
| (SUS420J2) | |||||
| 9-4 | 轴承 | 滚珠轴承或含油铜轴承 | 滚珠轴承 | ||
| Bearing | Ball bearing or sleeve bearing | Ball bearing | |||
| (Cu+GLY)-2100 | |||||
| 9-5 | 线架 | ||||
| PBT 85% + Fiber 15% | 94V-0 | ||||
| 9-6 | 矽钢片 | (H23) (H-8) | |||
| Silicon steel strip | |||||
| 9-7 | 漆包线 | 去膜直径 0.12~0.123mm | MW-2 | 耐热 Heat resistance120℃ | |
| Enamelled copper wires | Material & Specification 0.12~0.123mm | UEW | |||
| 9-9 | 电源线 Lead wires | 聚乙烯氧化物包铜线 | 94V-0 | ||
| Polyvinyl Choride enamelled | |||||
| copper wires (AWG#22) | |||||
| 9-10 | 贴纸 Label | 多元脂 | |||
| Polyester | |||||
| 9-11 | 端子接头 | ||||
| Connector housing | 94V-0 | 1007#22AWG | |||
| 10、出货检验程序 Product inspection procedur | |||||
| 本公司出货检验程序均依照下列步骤实施 Inspection procedures below are extremely followed | |||||
| 10-1、100% 生产线上电性,死角,扇叶拉拔 | |||||
| 100% Electric, rotating, dead spot, fan blade fasten, and primary noise test on production line | |||||
| 10-3、100%以手敲击测试及静音室异音过滤 | |||||
| 100% Strike test by hand and noise filter in quiet room | |||||
| 10-4、10 cm 落地试验依附MIL-STD-105E 作抽样 | |||||
| 10 cm drop test at random in accordance with MIL-STD-105E standard | |||||
| 10-5、出货抽样检验依 MIL-STD-105E 作允退判定 | |||||
| Random inspection in accordance with MIL-STD-105E standard | |||||
| 10-6、允退标准如下 Pass/Reject standard: | |||||
| 加严 Critical AQL:0.4 正常 Major AQL:0.65 宽松 Minor AQL:1.0 | |||||
