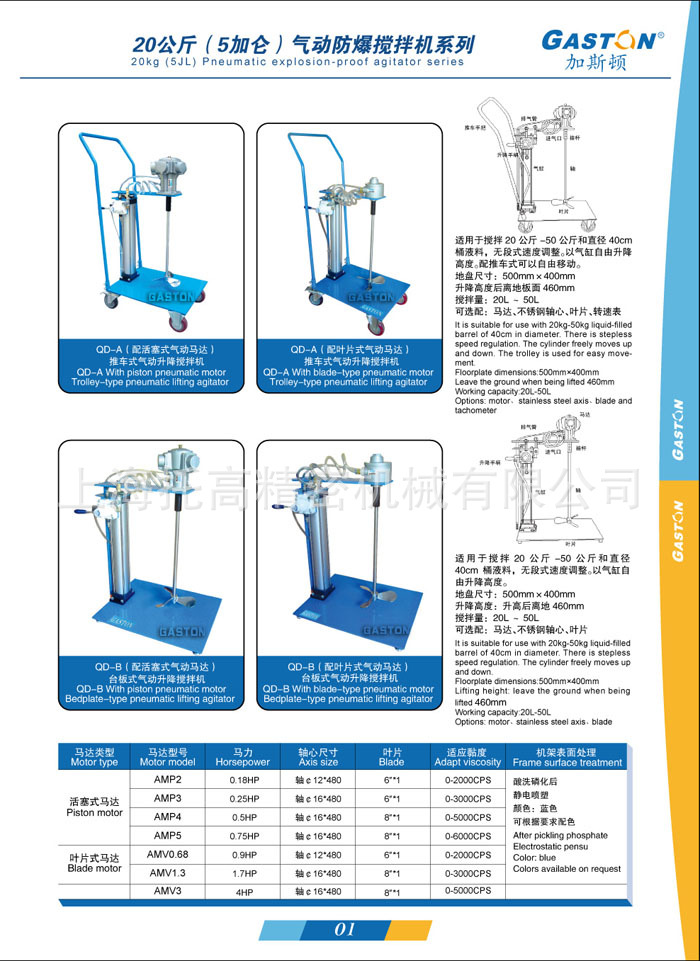

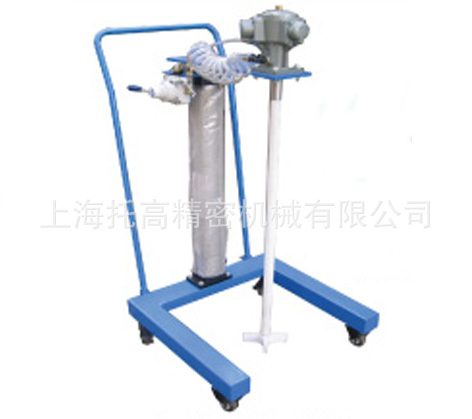

轻巧推车式设计，四个移动轮，方便移动，可小批量多桶搅拌作业.
搅拌轴与搅拌叶片采用四氟材质，可用于高腐蚀性物料搅拌机
Light-duty trolley-tybe design with 4 moveable wheels is employed to permit multi-barrel agitation in small batches.
The agitation shaft and blades are made of tetrafluoride，and thus suitable for use with highly corrosion material.
马达类型 Motor type | 马达型号 Motor model | 马力 horsepower | 轴心尺寸 Size blabe | 叶片 vane | 适应黏度 Adapt viscosily | 机架表面处理 Frame surtace treatment |
活塞式马达 Piston motor | AMP2 | 0.18HP | 轴￠12 *480 | 6 "*1 | 0-2000CPS | 酸洗磷化后, 静电喷塑 颜色:蓝色 可根据要求配色 After pickling phosphate electrostatic pensu Color：blue color available on request |
AMP3 | 0.25HP | 轴￠16 *480 | 6 "*1 | 0-3000CPS |
AMP4 | 0.5HP | 轴￠16 *480 | 8 "*1 | 0-5000CPS |
AMP5 | 0.75HP | 轴￠16 *480 | 8 "*1 | 0-6000CPS |
叶片式马达 Vane motor | AMV0.68 | 0.9HP | 轴￠12 *480 | 6 "*1 | 0-2000CPS |
AMV1.3 | 1.7HP | 轴￠16 *480 | 8 "*1 | 0-3000CPS |
AMV3 | 4HP | 轴￠16 *480 | 8 "*1 | 0-5000CPS |
'
