台车式气动搅拌机附不锈钢盖附泵浦

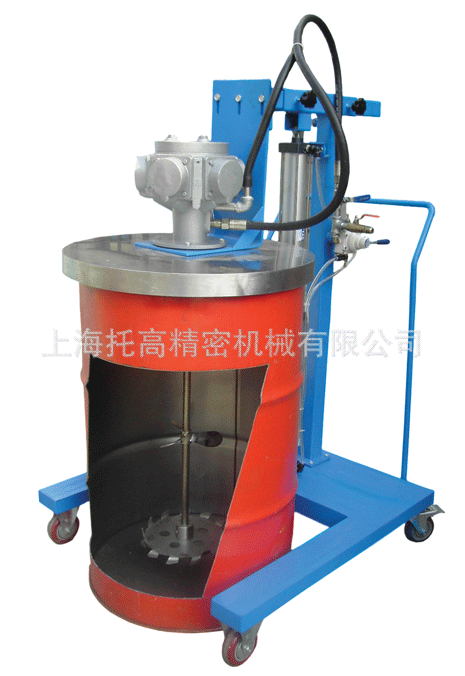

Truck-type pneumatic agitator provided with stainless steel cover and pumping
台车式机型以坚固U型槽刚构成,适用于任何流体槽、圆桶。配有4个坚固的万向轮(2个固定式的、2个活动式的),使你轻易移动搬运。其中一组附有刹车,是一车安稳固定,并以气缸控制升降高度.
☆附不锈钢桶盖搅拌时可防止液体溅出并防止气味散发出来也可防灰层进入搅拌桶内
☆附泵浦可边搅拌边抽吸液料,节省时间节省空间。
☆ 附减速机可提升马达扭矩,可搅拌黏度大的液体和膏体
Truck-type agitator, mounted with robust U-channel, is suitable for use with any fluid barrels and round barrels. A set of 4 robust universal wheels (2 fixed wheels and 2 moveable ones) is used for easy handling purpose. A brake is provided to the wheel for securing the unit. A cylinder is used for lifting height control.
☆Provided stainless steel cover is used to prevent material splash, odor release and dust entry into the barrel during operation.
☆Provided pumping is used for material discharge while agitating to benefit efficient operation and less space.
☆Provided reduction gear is used for higher motor torque to work on liquids and gypsums with high viscosity.
马达类型 Motor type | 马达型号 Motor model | 马力 horsepower | 轴心尺寸 Size blabe | 叶片(不锈钢) vane | 叶片型式 Blade(stainless steel) | 机架表面处理 Frame surtace treatment |
活塞式马达 Piston motor | AMP4 | 0.5HP | ¢20mm*840/1170mm | 三叶型8"*1,齿轮型8"*1 | 可选三叶型, 齿轮型,螺旋 An optional Three-leaf type, spiral | 酸洗磷化后, 静电喷塑 颜色:蓝色 可根据要求配色 After pickling phosphate electrostatic pensu Color:blue color available on request |
AMP5 | 0.75HP | ¢20mm*840/1170mm | 三叶型8"*1,齿轮型8"*1 |
AMP6 | 1.1HP | ¢25mm*840/1170mm | 三叶型8"*1,齿轮型10"*1 |
叶片式马达 Vane motor | AMV3 | 4HP | ¢20mm*840/1170mm | 三叶型8"*1,齿轮型8"*1 |
AMV3.9 | 5.2HP | ¢25mm*840/1170mm | 三叶型8"*1,齿轮型10"*1 |


'
