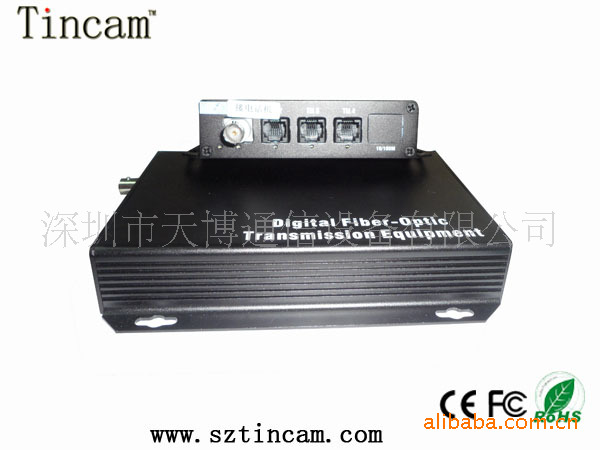

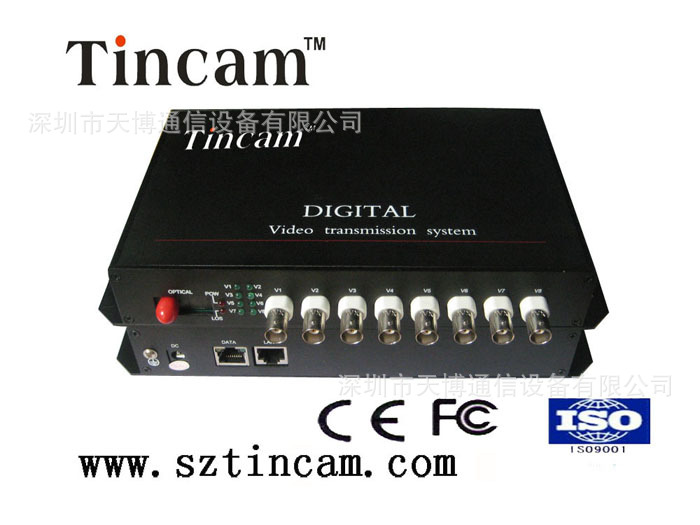

TBCDigital Video Multiplxers adopt complete digital fiber transmitting mode, it can transmit more than 100 channels digital video, high-fidelity audio, telephone and low rate data(such as RS232, RS422, RS485, Manchester,BIPHASE and Binary input/Output). It adopts advanced digital technology such as DSP, FPGA, CPLD, to support dynamic and stationary picture high-fidelity transmitting and resist disturbance against intersectant signals and environment. It uses technical chip decorating on the whole surface and advanced switch, anti-electromagnetic wave radiation equipments, to make sure it can work continuously without troubles in any complex environment(eg. -35~+70℃outdoor condition and electricity generating station). Complete digital technology of video insures that the video signals can be transmitted long distance without any waste, and the bandwidth of reverting video signals is over 8MHZ. Digital video multiplexer can make sure of high quality audio and video signals transmission no matter how complex the transmitting environment is. |
Key Features： |
Complete SMD components, 18 inches duralumin chassis, and standalone case |
Support hot plug and play, switch power supply |
Optical interface: FC,ST, SC (optional) |
Without EMI, RFI and ground loop |
8BIT and 10BIT quantification level is optional |
Abundant signal interface, such as video, data, audio, telephone, Ethernet, |
Perfect signal indicator for optical, video, data, audio, telephone, Ethernet, |
Excellent data anti-thunder solution |
1310nm and 1550nm optional and max optical link loss is 30dB |
Standalone and module two types |
Standalone video multiplexer (1U chassis and standalone multiplexer), |
Module type equipped with 18 slots chassis |
Application: |
City traffic monitoring system |
Police and safe city monitoring system |
High way security protection and toll station system |
Building and campus monitoring system |
Industrial monitoring(airport, chemical plant, steel, oil, railway, |
Military monitoring(storage, frontier defense, guard, national defense and so on) |
Electronic power oil field, TV station program broadcasting system |
Gymnasium(live video and audio transmission) |
