Needle gripper with through hole
1-460-09-00 NGR 12 D M 5 x x 20 98 116 30 0-2.5 11.5 70 249.2
Needle grippers are designed
for picking up textile, cloth,
carpet or any other material
that can be penetrated.
The penetration depth can be
adjusted from 0 – 2.5 mm.

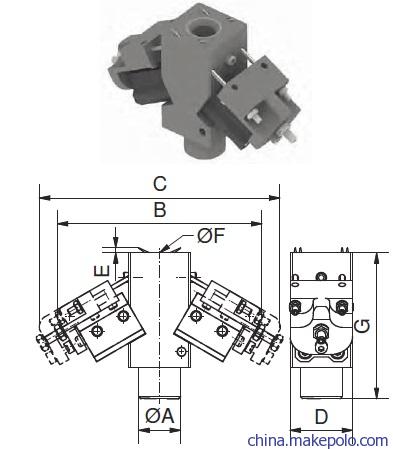

Drawing:
Dimension
E = length of needles
B = needles retracted
C = needles extended
The diameter of the needles is
2 mm
Remarks:
Maximum air pressure is 87 psi
(6 bar).
Use dry and filtered air only.
