SCT2501 Series  (JST XH2.5-Pitch2.5  Wire to Board Connector )
Specifications :
Current Rating : 3A AC,DC
Voltage Rating : 250V AC,DC
Temperature Range : -25 deg C ~+85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 1000V AC/minute
*Contact SCT2501 for detals*

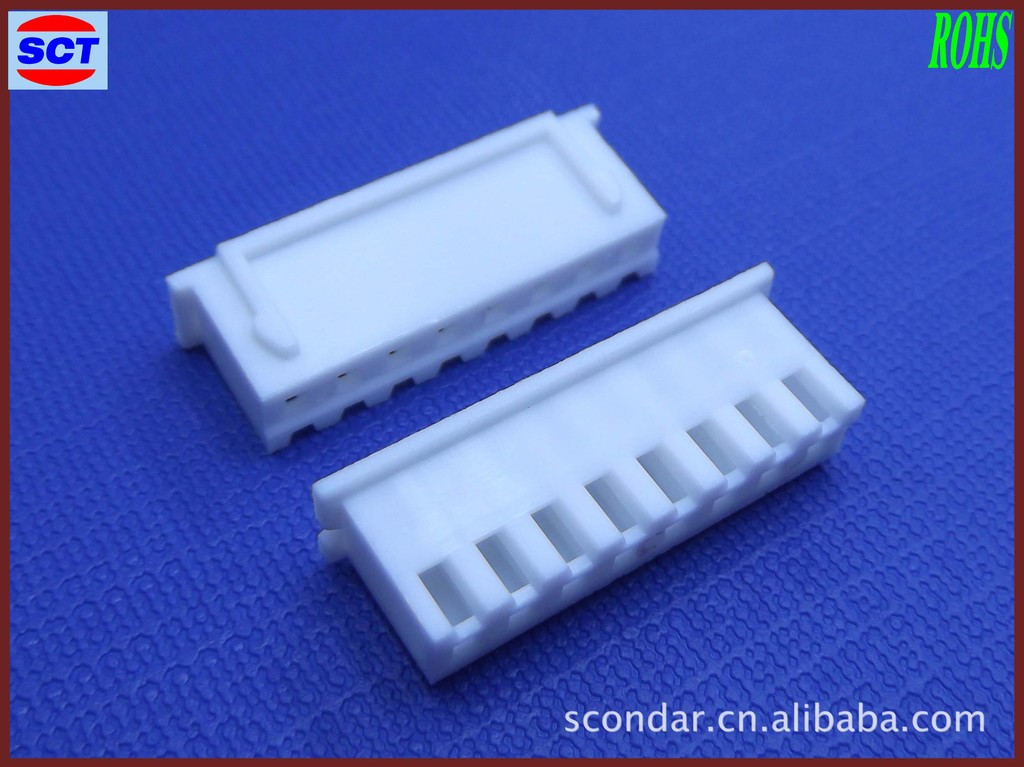

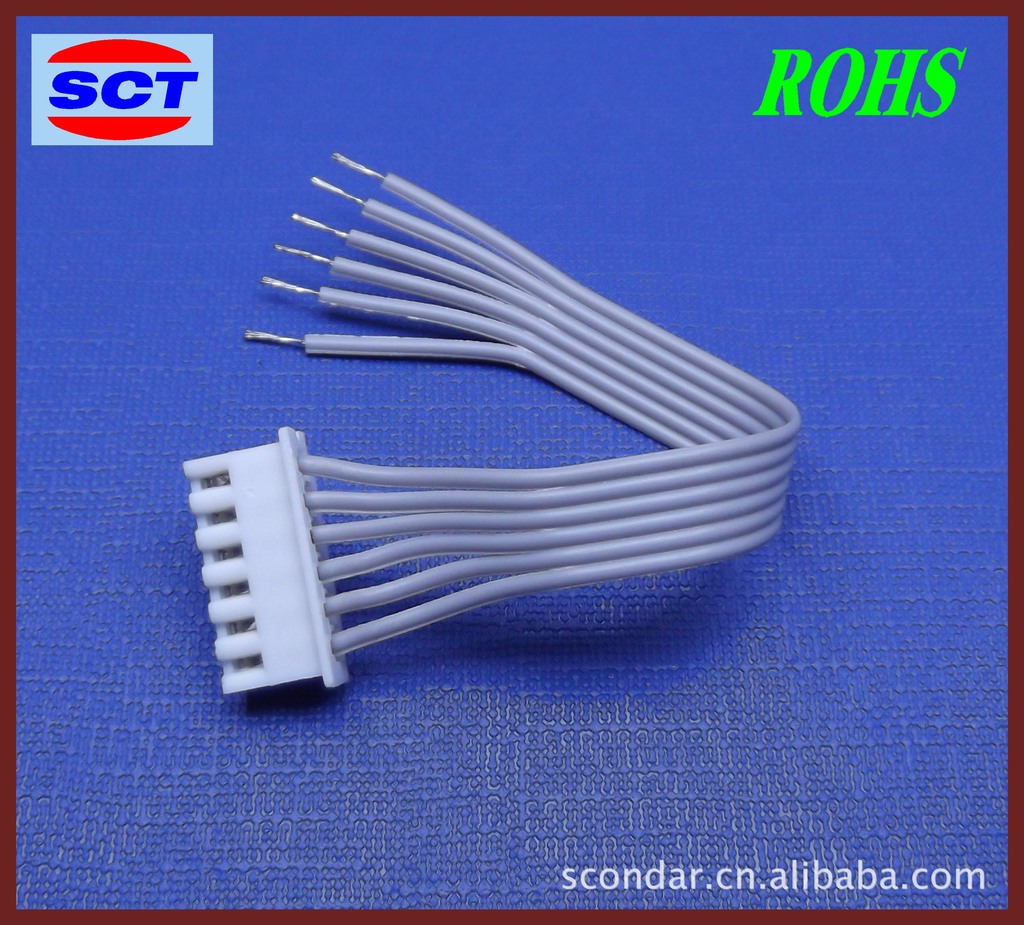

Housing
Part No:SCT2501H-
Poles:2-16P.
Material:Nylon66 UL94V0 or UL94V2
Packing Q'TY:1000pcs/bag
Mates With SCT2501T  Series Terminal

Terminal
Part No:SCT2501T
Thickness:0.20mm
Material:Phosphor bronze/ Brass
Finish:Tin Plated
Wire Range:AWG#22-#28
Insulation O.D. : 1.40mm ( Max.)
Q'TY:8,000pcs/reel
Mates With SCT2501H- Series Housing

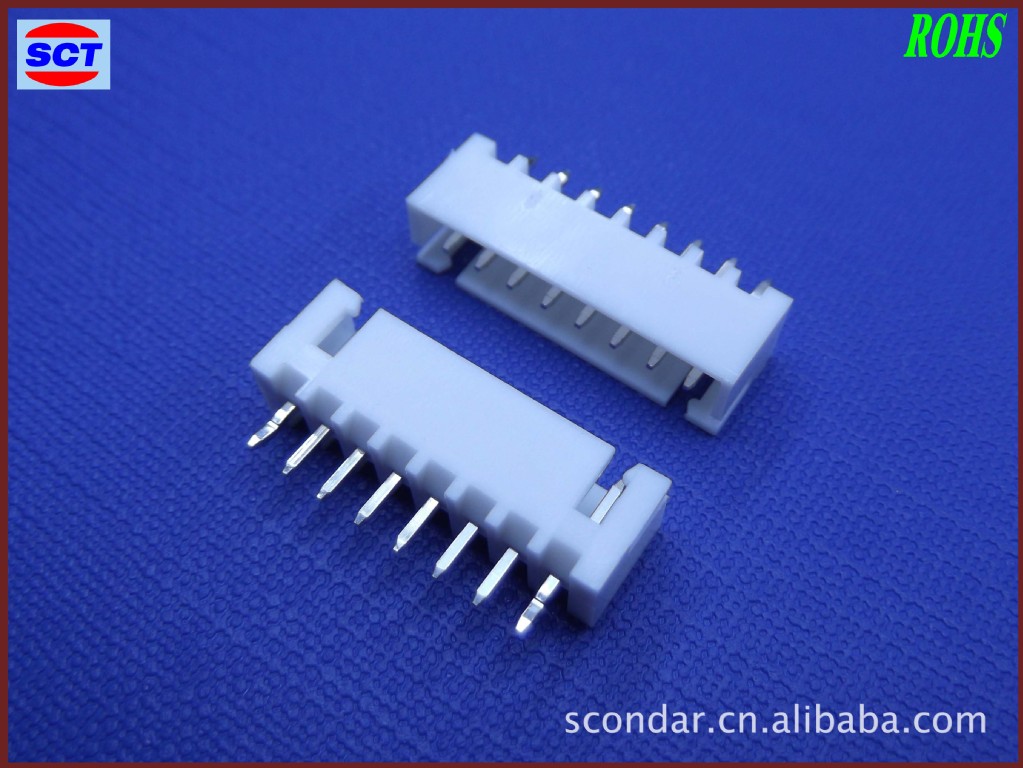

Wafer (DIP  Type)
Part No:SCT2501WV/WR-NP
Poles:2-16P
Material:Nylon66 UL94V-0 or UL94V2
Packing Q'TY:1000pcs/box
Mates With SCT2501H- Series Single Row Housing
