本条报价包含17%增值税和运费。另外可提供套管打印专用软件WinTotal，Codesoft 9.10和cablabel R2+。

Label printer A4+P for challenging surfaces

The A4+M does not require any printhead adjustments for different material widths. It can also be used for printing very narrow or thick endless materials.

The gap height for flat tubes and synthetic straps is 4 mm. The optimum print speed for materials that are difficult to imprint is 30-125 mm/s. Operation and software are compatible with the A+ series.

Variants

• Thermal transfer or thermal direct
• 300  to 600 dpi print resolution
• 30 to 125 mm/s print speed
• 105,6 mm print width
• Metal or compact cover

Content of delivery

• Label printer
• Power supply
• Connecting cable USB
• Operation manual
• Windows driver
• cablabel R2+
• Service manual on CD-ROM

Functions and advantages

The A4+M is intransigent designed for continuous use in 3-shift operation in an industrial environment. We have gone to any lengths to make the printer persistant - and we love the details!

• No adjustment of the print head for different widths of material.
• Printing on very narrow or very thick continuous materials.
• The gap height at the material sensor for flat tubes and synthetic tapes is up to 4 mm.
• The print speed for difficult printable materials is reduced to 30 – 125 mm/sec.
• Operation and software are compatible with the A+ series.

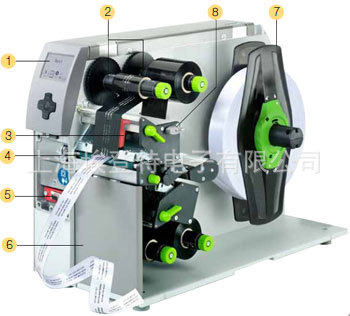

Technical Details

The handling, the electronic, the print heads, the software and the mechanical components are extensively taken from the label printer A4+.

1. Big graphic display

White backlight renders the data easily readable.

2. Ribbon retainer

Easy and centred insertion of the ribbon with the threepart tightening axles. Due to the imprinted spacer positioning of the ribbon is facilitated.

3. Easy adjustment

The print head is pressed down with two sliding toggles. One is mounted to the left label margin, the other one is pushed to the right label margin.

4. Material guide

Precise printing due to the material guide located directly behind the print roller. The width is adjusted with a spindle.

5. Peripheral connection

Add-on modules like cutter, external rewinder, present sensor, peel-off adapter and applicators can be easily connected via USB peripheral interface. All peripheral devices are put onto the printer with two gudgeons and fixed with a bolt.

6. Solid, buckling resistant chassis

It is made of dye-cast aluminium. All devices are assembled to it.

7. Roll holder

Applicable for core diameters as of 38 mm. (we include adapters for core diamters from 76 mm for a better winding of the labels). The spring mounted margin stop ensures constant tension while feeding and therefore a highly precise imprint.

8. Only one tool for all maintenance tasks

The Allen key is located ready to hand directly at the printer.

Control

The print data is automatically printed centric. To reduce the wastage after loading labels or prefabricated heat shrink tubes the materials located between gap sensor and print head can be labelled as well by designating the material gap.

Stand-alone operation

The layout of the labels is created either with the label software or directly on the PC. Label formats, fonts and graphic data, serial data and data base contents are saved on the CF memory card or on the internal IFFS printer memory. Only the variable data is sent to the printer via keyboard or host computer before being printed out.

Technical data differing from the A4+

Printhead

Material

Continuous rolls or fan-folded: Labels, Paper, cardboard, textile, plastic, PET, PE, PP, PVC, PU, Acrylat, PI, tubes

Thickness mm / weight g/m2: 0.055 - 1.2 / 60 - 300

Width:
Liner and continuous material 10 -110 mm
Heat shrink tubes 3,5 - 110 mm

Height:up to 4000 mm

Media roll
Total diameter up to 205 mm
Core diameter:  38 - 100 mm
Winding direction: inside or outside

Ribbon

Ink:outside or inside

Roll diameter up to:80 mm

Core diameter: 25 mm

Ribbon length variable up to:  500 m

Width up to :114 mm

Dimension of the printer

Hight x Depth x width:274 x 446 x 242 mm

Weight:9 kg

Label sensor

See-through sensor for leading edge of the label or punching marks and end of material.
Reflective sensor from the bottom / from the top for printing marks.
Distance from the center to the left 0 - 53 mm

Electronics

Processor high speed 32 Bit ColdFire/Clock rate:266 MHz

RAM:64 MB

Memory IFFS MB:8 Flash

The cutter is used to cut labels, cardboards, textiles or heat shrink-able tubing separately, either in multiple cuts or at the end of the print job.

The perforation cutter is used to cut labels, cardboards, textiles or heat shrink-able tubing separately, either in multiple cuts or at the end of the print job.

Perforation cutter PCU4/2,5,  Perforation distance 2.5 mm
Perforation cutter PCU4/10, Perforation distance 10 mm

 The materials are cut with the cutter and piled up with the stacker. The width of the stacking tray is adjusted with a spindle. Material with a width from 20-100 mm, a length from 20-150 mm and a height up to 150 mm can be piled up (bigger heights of pile on request). The print job stops when the height of pile is reached. The storage table is adjusted to the label size. The stacking tables must be adapted to the size of the labels.






The rewinder can be attached to almost every other printer. All other technical data are ording  to the rewinder.

The built-in scanner tests the barcode directly after printing. If the bardcode is not readable the printing process can be stopped at once so the faulty labels can be removed. It is primarily intended to be used with the external rewinder ER4 - ER8.

For 2D-Codes on request.

The print job is stopped with the pause signal. The active label is finished, e.g. by using a label loop.

Inputs: Pause, external error
Outputs: No print job, printer not ready, print job active

If the panel is not essible anymore, e.g. after installation within a facility, it is possible to install an external panel. Additionally there is a slot for a CF memory card Type 1 and a USB Master interface.


CompactFlash Type I
Label formats, fonts, texts and graphics can be saved.
essible from the printer or from the PC.

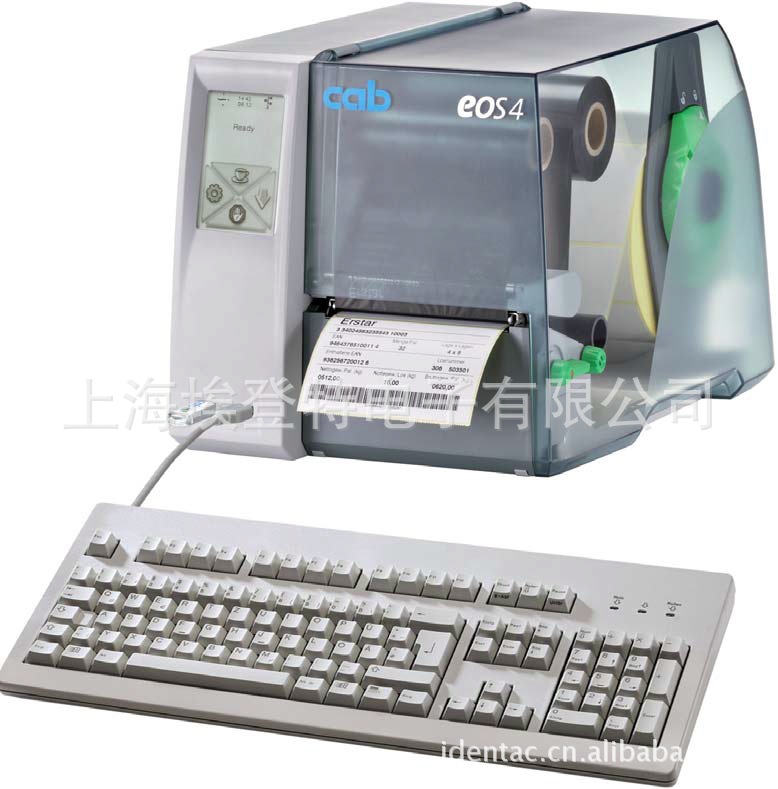

Connection: USB / No. of key: 86 / L x W mm: 282 x 132 / Cherry G84-4100

此型号打印机为专用的双面套管打印机。为方便打印连续型扁平热缩套管套管，可选配打虚线刀的切刀。

本价格为未税价格。可开具17个点的增票。

      另本公司诚招各地代理，可来电询问渠道价格（陈先生13701757432）。有大量zebra/SATO/DATAMAX/TYCO 打印机配件和耗材。

关于打印头

质保时间:3个月，或25公里任一条件先到即过保
图片:以实物为主、也可在线提供实物照片；
支持支付方式：银行汇款（汇款至公司帐号）、支付宝！
是否原装：我公司所提供的打印头都是美国原装进口的！生产厂商和我们的技术人员都确认执行过彻底的质量检查.

他们都是来自同一个高质量材料并提供优越的性能和防磨损。
您找我们购买打印头,在安装和使用方面您都能得到我们专业技术人员的支持和指导。

优势:我公司以配件（打印头）耗材（标签、色带）为主,多年来已经成了稳定的进出货渠道,因此对条码设备配件的优势非常显著!!

怎样延长你的打印头寿命

打印头是打印机中最脆弱易损的器件。它象汽车一样是件损耗品，最终会损坏，然而不断注

意保养，就能延长打印头的寿命。

预维护

为发挥最好的作用，当每用一卷色带或一卷热敏纸需清洁一次打印头。注意当清洁打印头时

需脱下戒指以防划伤打印头，并用接地金属带或防静电垫以防静电损坏打印头。
可用浸过70％酒精棉棒，先关打印机电源并打开打印头，用少量棉布在打印机机械部分刷，

或轻轻吹去浮尘（如：滚轴、纸/色带传感器和打印头)。不要用任何硬的金属或会磨损的工

具(如螺丝刀)去乱磨打印头的污染物。
用带酒精的棉棒压在打印头上从头到底擦，然后旋转滚轴，用它边转边擦，棉棒脏了不要再

用。

造成打印头过早损坏的因素

擦伤 － 标签/色带通过打印头的长期移动会磨损陶瓷涂层的保护层，使打印头针(点)暴露而

最终损坏。

为了避免擦伤

· 经常清洁打印头并使用优质平滑且背层带膜的热转印色带以减少磨擦。
· 尽量减少打印头压力及打印温度。
· 保证色带宽度比标签宽以防止暴露打印头被标签擦伤。

色带背层造成的脏

打印头被热敏纸和热转印色带污染后就会需要高温、高压、高速等高的设置值。污染物积聚

在打印头针上造成热传送障碍而影响打印图象质量。污染增加逐渐使打印质量下降而看起来

无光泽或损坏打印针。污染物并使浸湿的棉棒难以清洁。

为了避免色带背层造成的脏

· 需使用已经带有背层保护的热转印色带，这色带需参照无粘性色带，同时具有散静电和更

润滑作用。
· 经常做打印头维护保养。
· 使用我们的保护打印头薄膜可以快速简单去除打印头垃圾积聚。
打印头的保修
· 见意使用原厂家提供的标签和色带以达到最佳的打印效果，并能减少对打印头的磨损
· 对使用非厂家提供的标签和色带而导致打印头的损坏，厂家则不承担任何责任。
