网关/网桥转/Modbus RTU / ASCII码/ JBUS / TCP
网关是一种转Modbus的电子装置，CAN总线可通过RS232/RS485接口、总线或CAN总线和Modbus TCP协议之间的Modbus RTU/ ASCII/ JBUS（以太网）总线之间进行信息交流。
对于所有的通讯协议比如RTU / ASCII/JBUS版本和客户端或服务器的TCP版本网关可能是主机或从机。

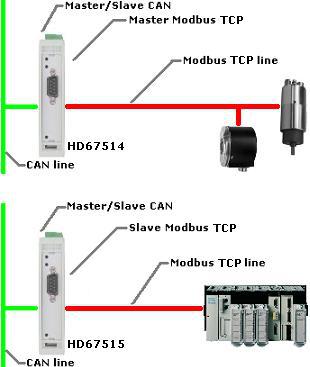

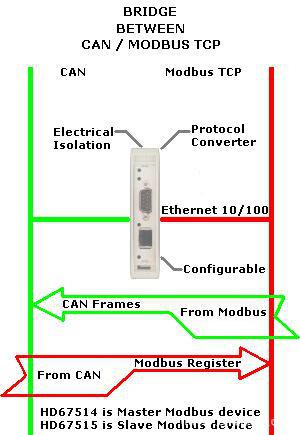

网关HD67514和HD67514-B2是TCP客户端的从机，所以他们允许CAN设备和Modbus TCP服务器之间有接口，反之亦然。
网关HD67515和HD67515-B2的服务器的TCP端，所以他们允许CAN设备和Modbus TCP客户端之间有接口，反之亦然。

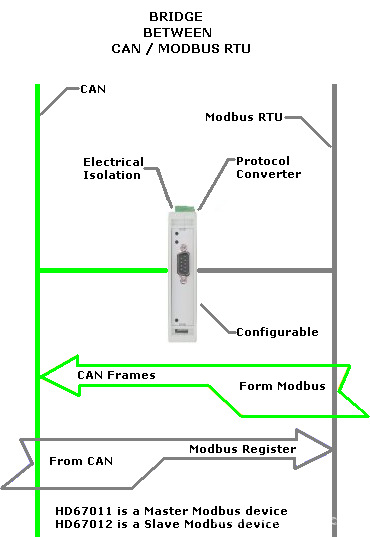

网关HD67011是RTU / ASCII/ JBUS客户端的从机，所以它允许CAN设备和Modbus从机之间有接口，反之亦然。
网关HD67012是RTU / ASCII/ JBUS的从机，所以它允许CAN设备和Modbus主机之间有接口
Order Code | Description | Operating Temperature | |
HD67011 | Gateway CAN from/to Modbus RTUMaster | -30° to +70° |
|
HD67012 | Gateway CAN from/to Modbus RTUSlave | -30° to +70° |
|
HD67411-E4V | Gateway CAN from/to Modbus Master | -40° to +105° |
|
HD67411-E7V | Gateway CAN from/to Modbus Master | -40° to +105° |
|
HD67411-E4R | Gateway CAN from/to Modbus Master | -40° to +105° |
|
HD67411-E7R | Gateway CAN from/to Modbus Master | -40° to +105° |
|
HD67412-E4V | Gateway CAN from/to Modbus Slave | -40° to +105° |
|
HD67412-E7V | Gateway CAN from/to Modbus Slave | -40° to +105° |
|
HD67412-E4R | Gateway CAN from/to Modbus Slave | -40° to +105° |
|
HD67412-E7R | Gateway CAN from/to Modbus Slave | -40° to +105° |
|
HD67514-A1 | Gateway CAN from/to Modbus TCPMaster(housing type A) | -30° to +70° |
|
HD67514-B2 | Gateway CAN from/to Modbus TCPMaster(housing type B) | -30° to +70° |
|
HD67515-A1 | Gateway CAN to Modbus TCPSlave(housing type A) | -30° to +70° |
|
HD67515-B2 | Gateway CAN to Modbus TCPSlave(housing type B) | -30° to +70° |
|
 |  |
 | |
