现场总线网关 总线网关转换器 J1939协议转Modbus TCP协议网关
J1939转Modbus TCP网关
本网关支持J1939到Modbus TCP的双向通信。
用户可将基于J1939的CAT, Cummins, Iveco, MTU, Perkins, Volvo发动机通过以太网连接至PLC或PC。

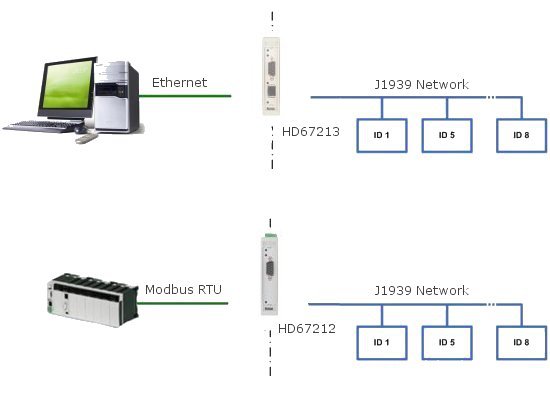

J1939转以太网网关HD67213支持J1939到以太网的双向转换，通过简单的配置可快速实现用户的应用。 | |
Order Code | Description | Dim.(DxWxH)mm | Operating Temperature |
HD67213 | Gateway J1939 from/to (TCP or UDP)
(housing type A) | 120x23x107 | -30° to +70° |
HD67213M | Gateway J1939 from/to (TCP or UDP)
(housing type B) | 71x60x95 | -30° to +70° |
HD67215-A1 | Gateway J1939 from/to Modbus TCP
(housing type A) | 120x23x107 | -30° to +70° |
HD67215 | Gateway J1939 from/to Modbus TCP
(housing type B) | 71x60x95 | -30° to +70° |
HD67212 | Gateway J1939 from/to Modbus RTU | 120x23x107 | -30° to +70° |
Order Code | Description | AC34001 | Power Supply 220/12V AC 50/60Hz | AC34002 | Power Supply 110/12V 50/60Hz | AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m | AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
| Benefits: | Software for easy configurator
Designed for serius use
Very easy to configure
Low cost
Rail din mountable
Galvanic isolation
Industrial temperature range:
-30° / 70° (-22°F / 158°F) |
|
