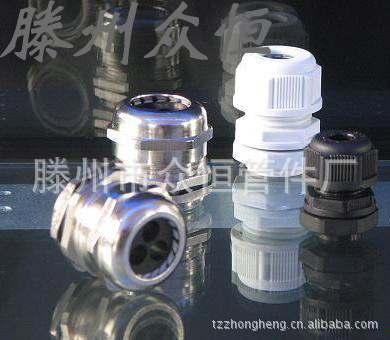

供应防爆电缆接头，防水盒接头，LED灯具连接器，防水等级IP68
滕州市众恒管件厂
中国 枣庄
产品属性
图文详情
品牌推荐
品牌/型号
滕州众恒/GL型
品牌
滕州众恒
材质
黄铜
公称直径
3-100（mm）mm
型号
GL型
加工定制
是
适用范围
保护电线电缆
螺纹规格:，【公制Mefric）德制（PG）、美制（NPT）
工作温度:静态：-40℃~＋110℃短时可达＋120℃，动态：-20℃~＋80℃，
防护等级:在规定的卡口范围内，并使用O形密封圈旋紧迫紧头，防水达IP68
产品特性:特殊夹紧爪与密封件相扣之设计，配合迫紧头装配省时便利，夹紧电缆范围大，抗拉力特强，可防水、防尘、防盐、耐酸碱、酒精、油、脂及一般溶剂。
使用方法:GL型金属电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另一端可接入设备箱体上，也可以根据选用螺纹接入进出口为内螺纹的电动设备上。
适用范围：一般机械控制箱，配电箱，机器，电器等电缆固定用
| 螺牙规格 | 型号规格 | 电缆外径 | 螺纹外径 | 螺纹长度 | 扳手径 |
M 公 制 | M8x1.25 | 4-2 | 8mm | 5mm | 11mm |
| M10x1.5 | 6-3 | 10mm | 5mm | 12mm | |
| M12x1.5 | 6.5-3 | 12mm | 6mm | 14mm | |
| M14x1.5 | 8-4 | 14mm | 6mm | 17mm | |
| M16x1.5 | 8-4 | 16mm | 7mm | 18mm | |
| M18x1.5 | 10-5 | 18mm | 7mm | 20mm | |
| M20x1.5 | 12-6 | 20mm | 8mm | 22mm | |
| M22x1.5 | 14-10 | 22mm | 8mm | 24mm | |
| M24x1.5 | 14-10 | 24mm | 8mm | 24m/27mm | |
| M25x1.5 | 14-10 | 25mm | 8mm | 24m/27mm | |
| M25x1.5 | 18-13 | 25mm | 8mm | 30mm | |
| M27x1.5 (2) | 18-13 | 27mm | 9mm | 30mm | |
| M30x1.5 (2) | 18-13 | 30mm | 9mm | 30/32mm | |
| M32x1.5 (2) | 22-15 | 32mm | 10mm | 35mm | |
| M33x1.5 (2) | 22-15 | 33mm | 10mm | 35mm | |
| M36x1.5 (2) | 25-18 | 36mm | 10mm | 40mm | |
| M40x1.5 (2) | 22-15 | 40mm | 11mm | 40/45mm | |
| M42x1.5 (2) | 30-22 | 42mm | 11mm | 45mm | |
| M48x1.5 (2) | 33-25 | 48mm | 11mm | 50mm | |
| M50x1.5 (2) | 38-32 | 50mm | 12mm | 57/55mm | |
| M54x1.5 (2) | 38-32 | 54mm | 12mm | 57mm | |
| M56x1.5 (2) | 38-32 | 56mm | 12mm | 57/59mm | |
| M60x1.5 (2) | 44-37 | 60mm | 13mm | 65mm | |
| M63x1.5 (2) | 44-37 | 63mm | 13mm | 65mm | |
| M64x1.5 (2) | 44-37 | 64mm | 13mm | 65/68mm | |
| M72x1.5 (2) | 52-42 | 72mm | 15mm | 77mm | |
| M75x1.5 (2) | 52-42 | 75mm | 15mm | 77mm | |
| M80x1.5 (2) | 62-55 | 80mm | 15mm | 90mm | |
| M88x1.5 (2) | 70-65 | 88mm | 15mm | 94mm | |
| M100x1.5 (2) | 84-78 | 100mm | 15mm | 110mm |
| 螺牙规格 | 型号规格 | 电缆外径 | 螺纹外径 | 螺纹长度 | 扳手径 |
PG 德 制 | PG7 | 6.5-3 | 12.5mm | 7mm | 14mm |
| PG7 | 5-2 | 12.5mm | 7mm | 14mm | |
| PG9 | 8-4 | 15.2mm | 8mm | 17mm | |
| PG9 | 6-2 | 15.2mm | 8mm | 17mm | |
| PG11 | 10-5 | 18.6mm | 8mm | 20mm | |
| PG11 | 7-3 | 18.6mm | 8mm | 20mm | |
| PG13.5 | 12-6 | 20.4mm | 8mm | 22mm | |
| PG13.5 | 9-5 | 20.4mm | 8mm | 22mm | |
| PG16 | 14-10 | 22.5mm | 9mm | 24mm | |
| PG16 | 12-6 | 22.5mm | 9mm | 24mm | |
| PG19 | 14-10 | 25mm | 9mm | 24/27mm | |
| PG21 | 18-13 | 28.3mm | 9mm | 30mm | |
| PG21 | 16-9 | 28.3mm | 9mm | 30mm | |
| PG25 | 22-15 | 32mm | 10mm | 35mm | |
| PG29 | 25-18 | 37mm | 11mm | 40mm | |
| PG29 | 20-13 | 37mm | 11mm | 40mm | |
| PG36 | 33-22 | 47mm | 12mm | 50mm | |
| PG36 | 26-20 | 47mm | 12mm | 50mm | |
| PG42 | 38-32 | 54mm | 13mm | 57mm | |
| PG42 | 31-25 | 54mm | 13mm | 57mm | |
| PG48 | 44-37 | 59.3mm | 14mm | 65mm | |
| PG48 | 35-29 | 59.3mm | 14mm | 65mm | |
| PG63 | 52-42 | 72mm | 15mm | 77mm |
| 螺牙规格 | 型号规格 | 电缆外径 | 螺纹外径 | 螺纹长度 | 扳手径 |
G 英 制 | G1/4 | 6.5-3 | 13.1mm | 7mm | 14mm |
| G3/8 | 8-4 | 16.6mm | 8mm | 18mm | |
| G1/2 | 12-6 | 20.9mm | 8mm | 22mm | |
| G3/4 | 18-13 | 26.4mm | 9mm | 30mm | |
| G1 | 25-18 | 33.2mm | 11mm | 40mm | |
| G11/4 | 33-22 | 41.9mm | 13mm | 50mm | |
| G11/2 | 38-32 | 47.8mm | 14mm | 57mm | |
| G2 | 44-37 | 59.6mm | 14mm | 65mm | |
| G21/2 | 52-42 | 75.1mm | 15mm | 77mm | |
| G3 | 70-65 | 87.8mm | 15mm | 94mm |
| 螺牙规格 | 型号规格 | 电缆外径 | 螺纹外径 | 螺纹长度 | 扳手径 |
NPT 美 制 | NPT1/4 | 6.5-3 | 13.6mm | 7mm | 14mm |
| NPT3/8 | 8-4 | 17mm | 8mm | 18mm | |
| NPT1/2 | 12-6 | 21.2mm | 8mm | 22mm | |
| NPT3/4 | 18-13 | 26.5mm | 9mm | 30mm | |
| NPT1 | 25-18 | 33.2mm | 11mm | 40mm | |
| NPT11/4 | 33-22 | 41.9mm | 13mm | 50mm | |
| NPT11/2 | 38-32 | 48mm | 14mm | 57mm | |
| NPT2 | 44-37 | 60mm | 14mm | 65mm | |
| NPT21/2 | 52-42 | 72.6mm | 15mm | 77mm | |
| NPT3 | 70-65 | 88.6mm | 15mm | 94mm |
