产品描述：
1.2.4G无线双向模块整合了高斯频移键控（GFSK）收发电路的功能，以小体积低成本实现高速数据传输的功能。
2.频率范围在2408.0-2478.0MHz。
3.灵敏度-20-85dBm。
4.输出功率0dBm(天线端)。
5.已通过CE、等相关认证。
技术参数：
1.模块具有快速跳频校验等功能，可在拥挤的ISM 频段中达到稳定可靠的数据传输。
2.可兼容安华高ADNS5030、ADNS5090，原相PAW3204DB（L、VL）等SENSOR。
3.可提供0度、90度、180度、270度的SENSOR摆放方位选择。
4.支持多个按键（左键、右键、中间键、CPI键、侧边键-前、侧边键-后）。
5.CPI分辨率分多级调节（见各型号传感器原理图说明）。
6.滑鼠在快速滑动时报告率达到125/s。
7.有效操作距离为12米之内。
应用范围: 无线数据传输，无线鼠标，无线键盘
Product Description:
1.2.4G wireless two-way module integrates Gaussian Frequency Shift Keying (GFSK) transceiver circuit features to a small volume low-cost high-speed data transmission functions.
(2) in the frequency range 2408.0-2478.0MHz.
3 Sensitivity-20-85dBm.
4 Output Power 0dBm (antenna).
5 have passed CE, and other related certification.
Technical parameters:
1 module with fast frequency hopping calibration and other functions, can be in a crowded ISM band to achieve a stable and reliable data transmission.
2 Compatible Avago ADNS5030, ADNS5090, the original phase PAW3204DB (L, VL), etc. SENSOR.
3 to provide 0 degrees, 90 degrees, 180 degrees, 270 degrees, select SENSOR display orientation.
4 supports multiple keys (left, right, middle button, CPI key, side keys - front, side keys - after).
5.CPI resolution of multi-level regulation (see the description of each model sensor schematic diagram).
6 sliding the mouse in the fast reporting rate reached 125 / s.
7 Effective operating distance of 12 meters.
Applications: wireless data transmission, wireless mouse, wireless keyboard

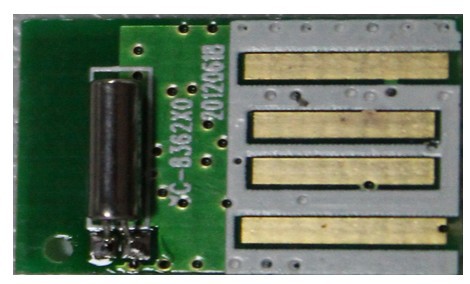

实物图片
