1BZ系列牵引式液压偏置重耙吸收了国外同类先进产品的优点,按标准设计,整机采用组合式结构,主要适用于农田耕前灭茬,破除地表板结,秸杆切碎还田,耕后碎土,平整保墒等项作业,在熟地上亦可代替犁进行土壤耕翻作业。作业效率高、入土碎土能力强,耙后地表平整、土壤松碎,对粘重土壤、荒地和杂草多的地块具有较强的适应能力。

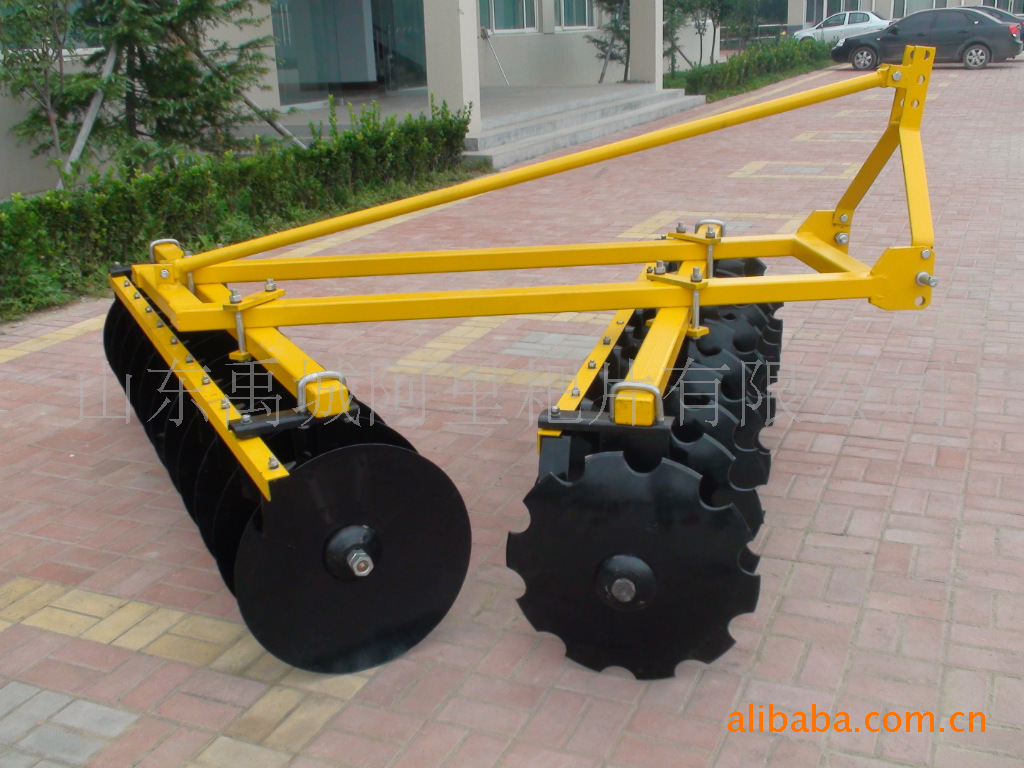

This series of 1BZ hydraulic trailed offset heavy-duty disc harrow is mainly applicable to clean the crop residue before tillage, break the
hardened and impervious soil surface, crush and spread straw into the field,
shatter soil after tillage, and level the land and preserve soil moisture.
It can be used as tillage machine instead of plough on the cultivated land.
With the efficient productivity, reasonable utilization of the power, great
ability of cutting and shattering the soil , the soil surface is smooth and
loosening after harrowing, it is well suitable for heavy clay soil, waste
land and weedy field as well.
Having absorbed all advantages from such machines of foreigners and Chinese,
it is designed ording to the standarded assembled structure, the main frame
is welded with rectangular tubes, on which assembled with hydraulic lifting
transportation wheels, adjustable spring device and special used bearing assemblies.
Therefore this machine is strong and durable for operation and easy to be adjusted
and maintained with the reasonable structure, small turning radius ,and is convenient
for transportation , etc.
型号Model | 单位 unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-4.0 |
耕幅 Working width | m | 1.8 | 2.2 | 2.5 | 3.0 | 3.4 | 4.0 |
耕深 Working depth | mm | 180~200 | 180~200 | 180~200 | 180~200 | 180~200 | 180~200 |
耙片数量 Q’ty of disc | | 16 | 20 | 24 | 28 | 32 | 36 |
耙片直径 Disc diameter | mm | 660(650) 600(610) | 660(650) 600(610) | 660(650) 600(610) | 660(650) 600(610) | 660(650) 600(610) | 660(650) 600(610) |
整机重量 total weight | kg | 1100 | 1250 | 1350 | 1450 | 1550 | 1700 |
配套动力 Matched power | hp | ≥70 | ≥80 | 80~100 | 100~120 | 120~150 | 140~160 |
挂接形式 Linkage | 牵引(Trailed ) |
