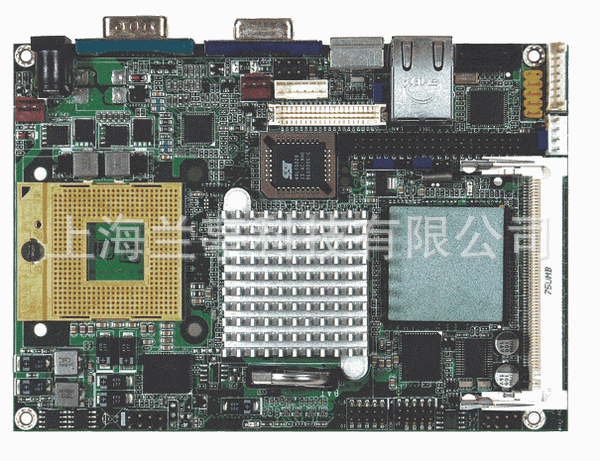

Intel 945GM 3.5” Board w VGA/Giga LAN/Audio
产品亮点
· Socket-M Intel Core 2 Duo / Core Duo / Core Solo / Celeron M
· Intel 945GM + ICH7M
· DDRII 400/533/667 up to 2GB
· 1 x Realtek PCI-E Gigabit controller
· 2 x RS232, 1 x RS485, 2 x USB2.0
· Dual channel 18-bit LVDS
· 1 x Mini-PCI / CompactFlash socke
产品规格
>> System
ProcessorSocket-M socket, support Intel Core 2 Duo / Core Duo / Core Solo / Celeron M
ChipsetIntel 945GME + ICH<7M>, 533/667MHz
DRAM1 x 200PIN SO-DIMM DDRII 400/533/667 max up to 8GB
BIOS4MB Award BIOS
Power SupplySupport ACPI V1.0 specification;
12V DC power jack support up to 60W
WatchdogWatchdog timer function
Dimension<102mm> x <146.5mm>
>> I/O Ports
HDD1 x IDE devices ATA100
1 x SATA interface
1 x Compact Flash
<<<<Serial> <Port>>>>3 x Serial Ports, two for RS232, one for RS485
AudioRealtek ALC655 HD audio codec
Keyboard/Mouse1 x mini-DIN port for PS/2 Keyboard and Mouse
LAN1 x Realtek RTL<8111C> PCI-E Gigabit connector
USB2 x USB2.0
Digital IO1 x DIO connector
Expansion 1 x Mini-PCI
>> Display
Graphics Integrated Intel GMA 950
DVMT 3.0 support
CRTSupport UXGA (1600x1200@60Hz)
LVDSSingle/Dual channel @ 18bpp TFT panel up to 1600x1200
>> Environment
Operation Temperature0°~<60°C> (32°~<140°F>)
Humidity10~90%
订购信息
Model Description
SYS7F885VGA Intel 945GM 3.5” Board w VGA/Giga LAN/Audio
