广东肇庆西江机械的瓦楞纸板生产线的主要组成设备
Main Component Equipments of the Production Line

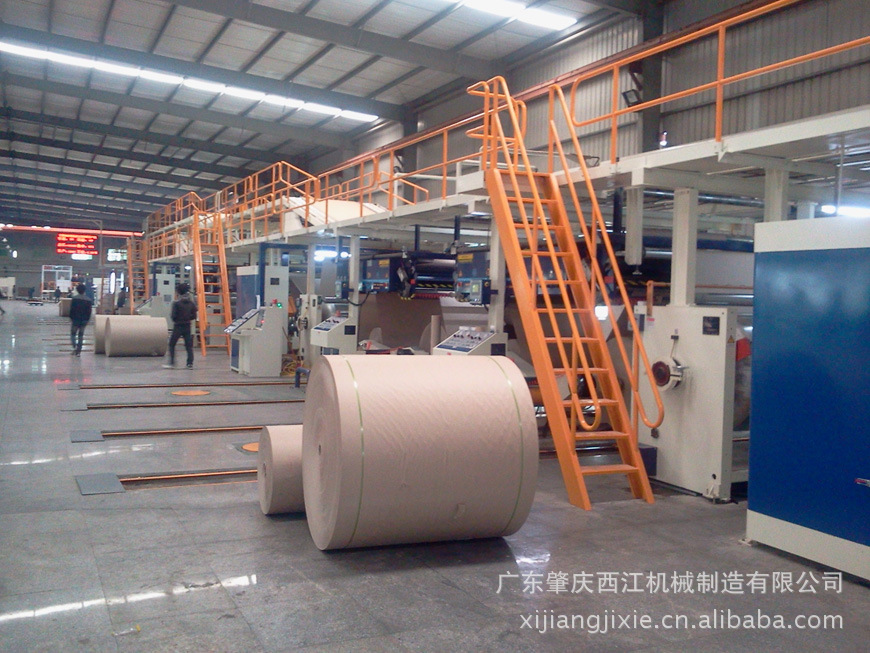

三、五、七层及多功能瓦楞纸板生产线主要由下列设备组成：原纸支架、面纸、瓦楞纸预热机、自动接纸机、单面瓦楞机、输送桥架、多重预热器、过胶机、粘合机、压线分纸机、纸板横切机、纸板输送与堆码机、制浆系统，气源系统以及电控系统等组成。
The 3ply, 5ply, 7ply, and multi-function corrugated cardboard production line mainly consist of the following equipments: Mill Roll Stand, Pre-conditioner, Pre-heater, Auto-splicer, Single Facer, Conveying Span Bridge, Multi-ply Pre-heater, Glue Application Machine, Double Facer, Slitter Scorer, Cut-off, Conveyer and Stacker, Glue Making System, and Electric Control System etc.
生产线工作流程简介
Brief Introduction of the Working Procedure
将纸卷送入原纸支架，经过预热器加热调并调节湿度及调整张力；接着进入单面瓦楞机，经过压楞上浆，与另一面纸粘合成单面瓦楞纸板；输送桥架把单面瓦楞纸板对齐并输送，至多重预热器进行再次加热；经过上胶机时，机器把浆均匀地上在单面瓦楞纸板的楞顶上；再与面纸通过粘合机的热粘合和冷定型，瓦楞纸板已成型。按照订单的需要，瓦楞纸板还要先经由压线分纸机进行纵向的分切及压线，然后通过纸板横切机进行横向的精确切断，一片四方形的瓦楞纸板至此已生产完成，最后经输送与堆码机进行堆叠和张数统计后，便可输出成品。
Feed the paper roll into the Mill Roll Stand. In the Pre-heater, the paper roll is heated and its moisture and tension force are adjusted. The paper roll is pressed to a corrugated shape and fed with glue in the Single Facer, and then it is agglutinated with another paper roll to form a piece of single face corrugated cardboard. The Conveying Span Bridge tidies and transports the single face cardboard to the Multi-ply Pre-heater for the second pre-heat. The Glue Application Machine puts glue on the sharp top of the single face corrugated cardboard before it is heating agglutinated with another paper roll in the Double Facer. After cooling formed in the Double Facer, a piece of corrugated cardboard is made. ording to the requirement of the order, the corrugated cardboard is cut precisely in the Slitter Scorer and the Cut-off. A piece of rectangle corrugated cardboard is finished. After quantity counts and being piled up in the Stacker, the finished cardboard can be conveyed out. An entire working procedure of the production line is completed.
l 生产速度：100M/min-300M/min.
Paper Outputting Speed: 100M/min-300M/min.
l 有效幅宽：1400mm-2800mm.
Valid Breadth: 1400mm-2800mm.
l 全线长度：70M-110M.
Total Length: 65M-110M.
