瓦楞纸板生产线概述：

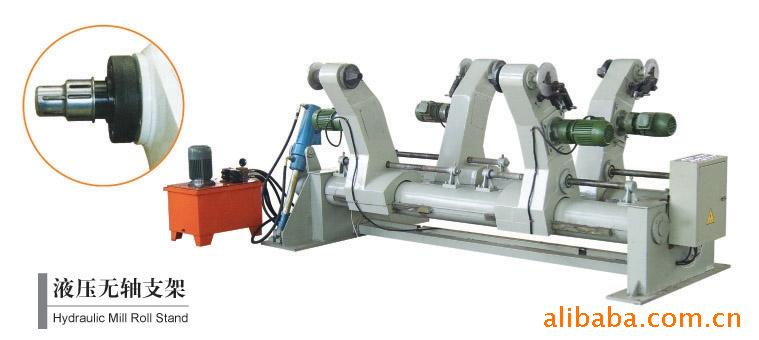

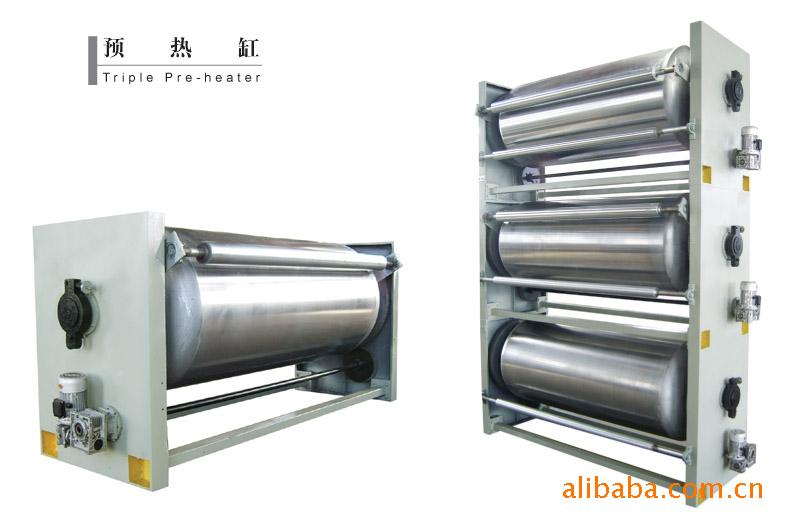

   纸箱纸板生产线是生产纸箱纸板的专用设备。主要由原纸架、面(芯)纸预

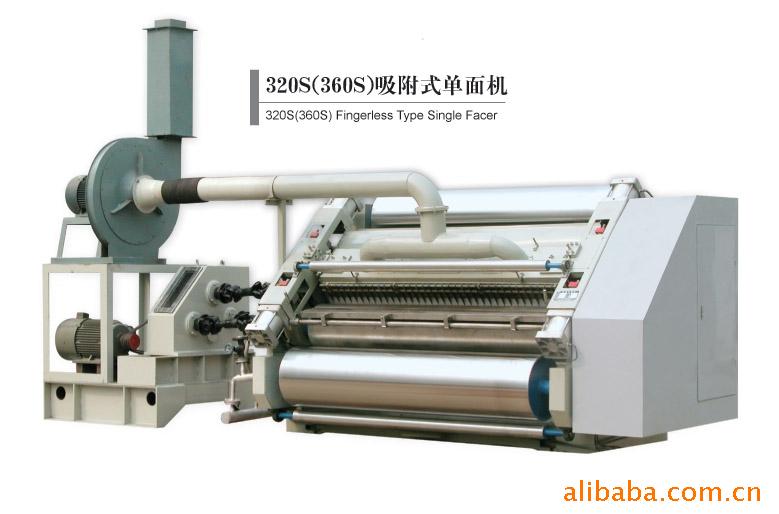

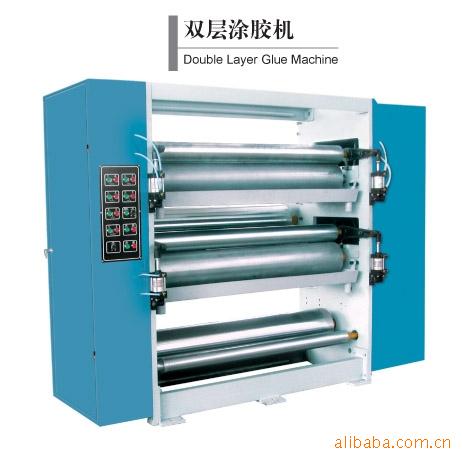

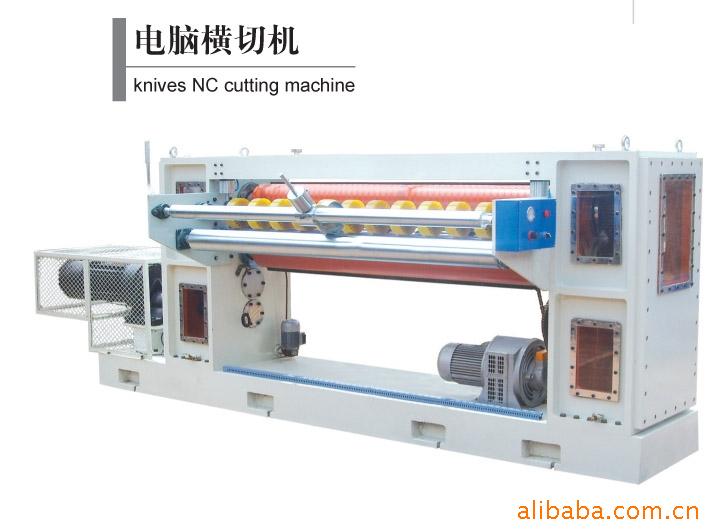

热(调)器、单面瓦楞机、输送天桥，涂胶机、双面机、纵切压线机、横切机、

堆码机以及加热系统、空气压缩系统．制胶系统、电器控制系统等主要设备组

成。不同型号和不同数量的设备可组成高、中、低三种不同规格、不同档次的

三、五、七层瓦楞纸板生产线。本厂在吸收国内外先进技术．广泛了解用户

需求的基础上．开发设计速度自60-180／min。纸幅从1400-2200mm，UV形A．

C、B、E、四种楞型的三．五、七层纸箱











纸板生产线按需选择。

Corrugated Cardboard Production Line Introduction

   TiIe’S staring blankly a carton production Iine iS the aDprOp riatiOn equipments whichproduce tile to stare blankly carton．Main from the original paper．noodles(Xin)paperprepare hot(adjust)the machine，one side tile stare blankly machine，transport overpass。Tu2 Jiao Ji。two-sided machine，Zong to slice to press line machine，horizontaI slice the machine。heapcode machine and heat system，air compress system，make gum system，electric appliances controI system etc．the mainequipments constitute．The equipments of dissimilarity modeI number and dissimilarity amount can constitute Gao，medium，three kinds of IOW dissimilarity specification．dissimilarity the 3，5 and 7 F tile of the file time stare blankly a carton production Iine．MY plant at absorb domestic and
internationaI forerunner technique．extensive understanding customer need of foundation up。development design the speed iS from the 60-1 80／min．The paper iS frOm the 1400-2200 mm，UV form A，C．B，E．four kinds of 3．5 and 7 F tile which stare blankly a type stare blankly a carton production Iine to press to need a choice．

用途与特点：

◆材料选用优质铬钼合金钢。

◆瓦楞形状为国际通用UV形，经精心设计，缩纸率低，压制出的纸板质量好，强度高。

◆采用进口精密机床，先进的成型磨削和电脑分度工艺，保证楞型尺寸精度符合国家标准。

◆楞齿表面经碳化钨或中频淬火处理，硬度达到HR60°以上。上瓦楞辊有中高，呈腰鼓形，使用寿命长。

Function and features

◆The corrugating roll is made of chrome molybdenum alloy steel

◆UV type is selected for corrugated rollers．which are elaborately designed with lower take
  up ratio and high cardboard intensity．

◆Con'ugated roller ground with advanced molding and computer indexing technology and
  guarantee the size of corrugation conform to national standard

◆Surface manufacture with intermediate frequency quenching heat treatment．hardness have
  reached up to HR60°,which is characterized by perfect flute and long service life.
