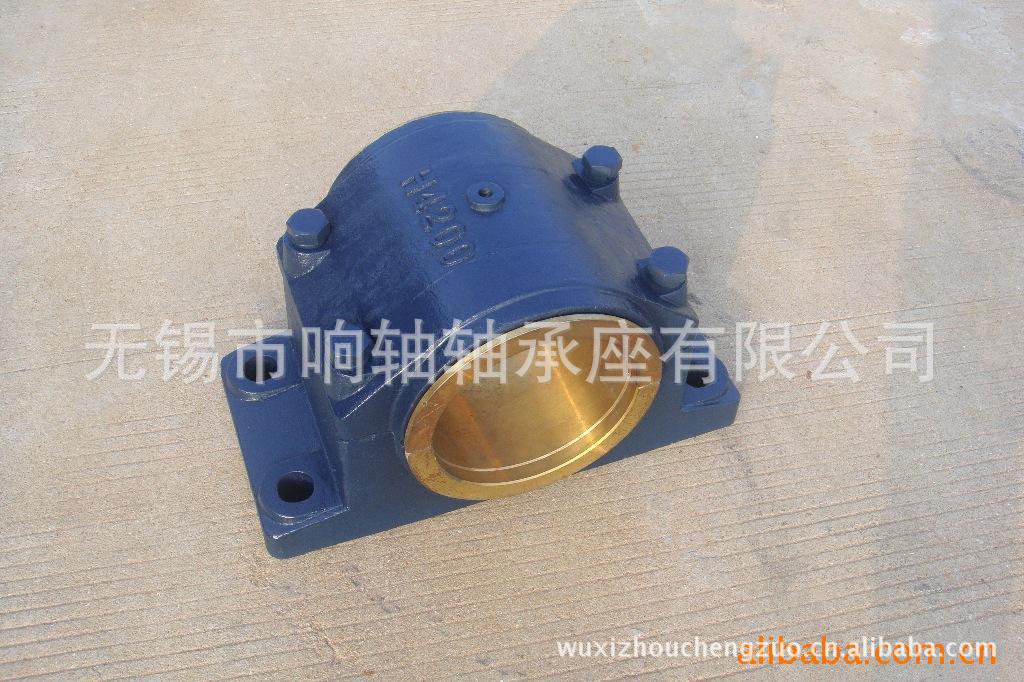

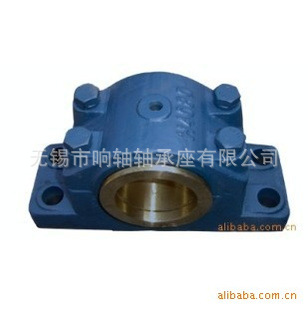

供应四螺柱滑动轴承座/H4050系列轴承座，铜瓦座，滚动轴承座
四螺柱正滑动轴承座（根据JB/T2562-2007）有：H4050 H4060 H4070 H4080 H4090 H4100 H4110 H4120 H4160 H4180 H4200 H4220
H4000 系列剖分式轴承座 |
轴承座型号 | 基本尺寸 | 重量 | d
H8 | D | W | h
h12 | b | a | m | n | C | H | J | e | t | d1 | r | s | | H4050 | 50 | 70 | 75 | 50 | 60 | 200 | 160 | 30 | 25 | 105 | 90 | 14.5 | M10 | M10×1 | 2.5 | M12 | 4.2 | | H4060 | 60 | 80 | 90 | 60 | 75 | 240 | 190 | 40 | 25 | 125 | 100 | 18.5 | M12 | M10×1 | 2.5 | M16 | 6.5 | | H4070 | 70 | 95 | 105 | 70 | 90 | 260 | 210 | 45 | 30 | 140 | 120 | 18.5 | M12 | M14×1.5 | 2.5 | M16 | 9.5 | | H4080 | 80 | 110 | 120 | 80 | 100 | 290 | 240 | 55 | 35 | 160 | 140 | 24 | M16 | M14×1.5 | 2.5 | M20 | 14.5 | | H4090 | 90 | 120 | 135 | 85 | 115 | 300 | 250 | 70 | 35 | 170 | 150 | 24 | M16 | M14×1.5 | 3.0 | M20 | 18.0 | | H4100 | 100 | 130 | 150 | 90 | 130 | 340 | 280 | 80 | 40 | 185 | 160 | 24 | M16 | M14×1.5 | 3.0 | M20 | 23.0 | | H4110 | 110 | 140 | 165 | 95 | 140 | 350 | 290 | 85 | 40 | 190 | 170 | 24 | M16 | M14×1.5 | 3.0 | M20 | 30.0 | | H4120 | 120 | 150 | 180 | 105 | 155 | 370 | 310 | 90 | 40 | 205 | 190 | 28 | M20 | M14×1.5 | 3.0 | M24 | 41.5 | | H4140 | 140 | 175 | 210 | 120 | 170 | 390 | 330 | 100 | 45 | 230 | 210 | 28 | M20 | M14×1.5 | 4.0 | M24 | 51.0 | | H4160 | 160 | 200 | 240 | 130 | 200 | 410 | 350 | 120 | 50 | 250 | 230 | 28 | M20 | M14×1.5 | 4.0 | M24 | 59.5 | | H4180 | 180 | 220 | 270 | 140 | 220 | 460 | 400 | 140 | 50 | 260 | 260 | 35 | M24 | M14×1.5 | 4.0 | M30 | 73.0 | | H4200 | 200 | 250 | 300 | 160 | 245 | 520 | 440 | 160 | 55 | 295 | 300 | 42 | M30 | M14×1.5 | 5.0 | M36 | 98.0 | | H4220 | 220 | 270 | 320 | 170 | 265 | 550 | 470 | 180 | 60 | 360 | 330 | 42 | M30 | M14×1.5 | 5.0 | M36 | 125.0 |
|
