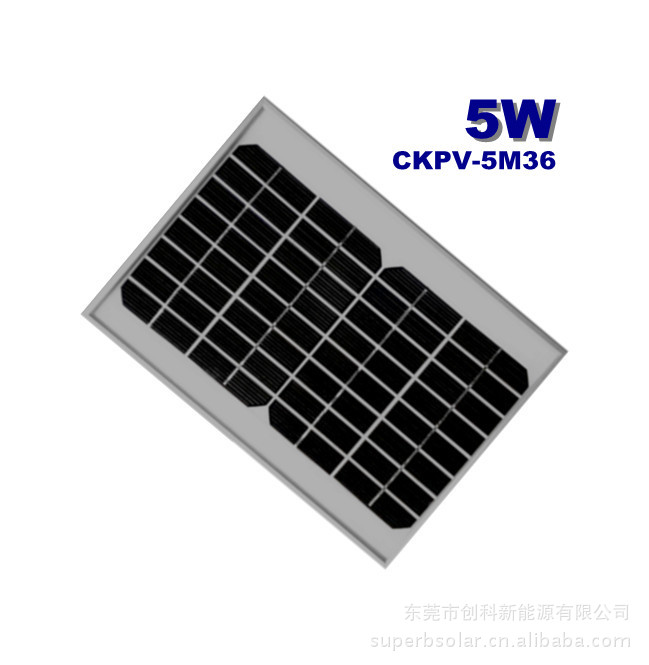

CKPV-005W-5M36
Performance |
RatedPower[Pmax] | 5W |
PowerTolerance | ±5% |
Nominal Voltage | 18V |
Design Life | 25 years |
Electrical Characteristics |
MaximumPower [Pmax] | 5W±5% |
MaximumPower Voltage [Vmp] | 18V±3% |
MaximumPower Current [Imp] | 0.277A±3% |
Short-CircuitCurrent [Isc] | 0.305A±3% |
Open-CircuitVoltage [Voc] | 21.6V±3% |
CurrentTemperatureCoefficient | 0.031%/℃ |
VoltageTemperatureCoefficient | -0.31%/℃ |
PowerTemperatureCoefficient | -0.42%/℃ |
MaximumSystemVoltage | 1000V |
Under Standard Test Conditions(STC): Irradiance of 1000W/m2,Am1.5 and 25℃cell temperature
Mechanical Characteristics
Dimensions：290mm(L) x203mm(W) x18mm(H)
Weight: 0.76kg
Solar Cells:Monocrystallinesolar cells,36cells in a 4x9matrix connected in series
Construction:Front: High-transmission 3.2mm tempered glass; Encapsulate: EVA;Back: TPT
Frame:Clear anodized aluminum alloy Color: silver
Module Warranty:
25-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 5-year limited warranty of materials and workmanship.
