高空作业吊篮产品介绍
平台长度 | 额定载重 | 提升速度 | 电机功率 | 制动力矩 | 钢丝绳 | 提升高度 | 电源 |
3节×2m | 630kg | 9.3m/min | 2×1.5kw | 15Nm | 8.3mm | 100m | 380v |
安全装置 | 急停装置，限速保护，断绳防倾斜保护，上限位保护，手动释放 | ||||||
型号：ZLP630 ZLP800
提升机产地：无锡，北京，天津，黄骅
配电箱：德力西控制元件，按钮有侧盖保护
钢丝绳：直径8.3，江苏法尔胜

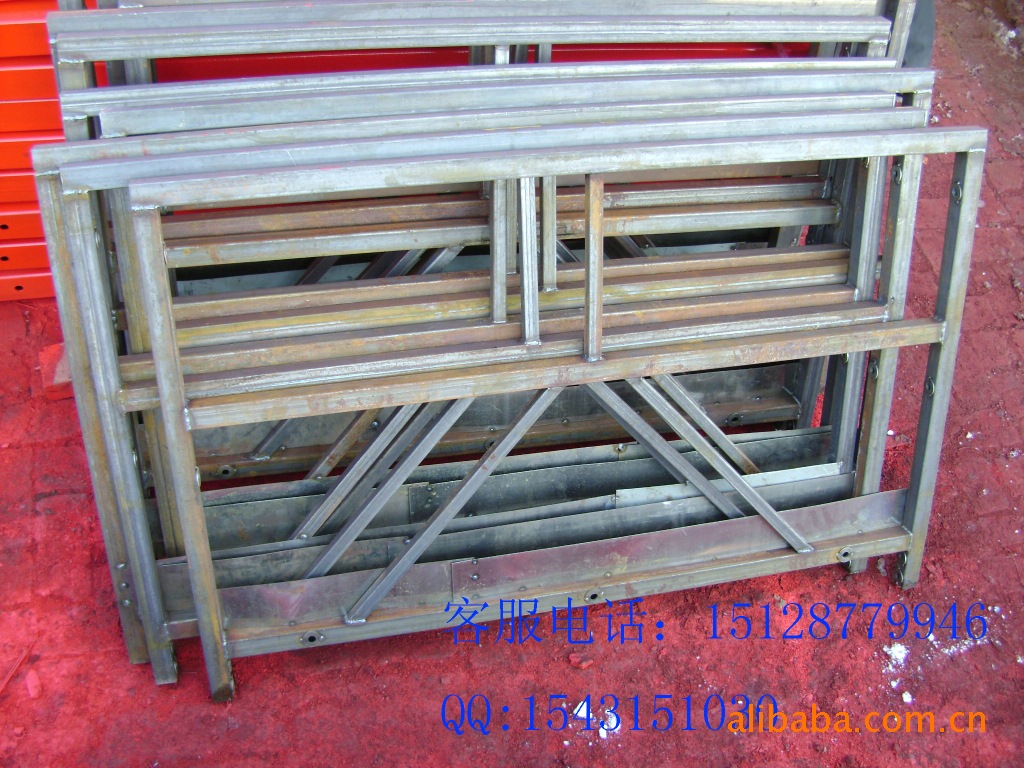

篮片：长度2米，高度1米，1.2米，40*40*2.2，40*50*2.2方管
底板：角铁焊接，上下螺栓连接，底板与底板之间也可以螺栓连接
可调式悬挂机构：安装总长度6米，可调节高度1.7米，前，后梁2.2米 80*80*4.0方管，中梁2.0米 70*70*4.0方管
前后支架：底部焊有铁片，防止磨掉油漆
联系人：牛先生
网址：
手机：15128779946
邮箱：shenyouhao@
QQ:37791944
河北省沧洲地区献县
The suspended platform is mainly used in the following aspects:
1,Exterior maintenance and cleaning of high-rise buildings.
2,Construction inspection and maintenance of big-size tanks, chimneys, dams, bridges and derricks.
3,Welding,cleaning and painting of big-size ship.
It is easy to operation,flexible for moving, reliable in safety . It can take the place of construction scaffolding, improve the efficiency and save cost .
The suspended platform is mainly used in the refurbishing of outer wall , installing of curtain wall , window cleaning , etc .
The suspended platform is an ideal equipment for facade construction decoration , cleaning and maintenance , it is also widely used in bridge building , chimney repair , ship maintaining and repairing , etc .
Features:
1,The length of platform can be free adjusted within 1.5m～7.5mby a step 0.5m .
2,The material of platform is Steel with painting .
3,Main supply:380V,50Hz,3-phase .
ZLP630 Platform Technical Parameters:
Platform Length : 6.0m(1.5m+2.0m+2.5m=6.0m)
Rated Capacity : 630Kg
Lifting Speed : 9.6m/min
Motor Power : 2×1.5Kw
Braking Torque : 15Nm
Diameter of Steel Rope : 8.3mm
Max Lifting Height : 100m , also ording to any special requirement
Supply Power : 380V,50Hz,Three-Phase
Safety Device : Emergency Stop Switch, Over-speed Limiter, Rope-breaking Device, Top-limited Switch, Manual Descend.
