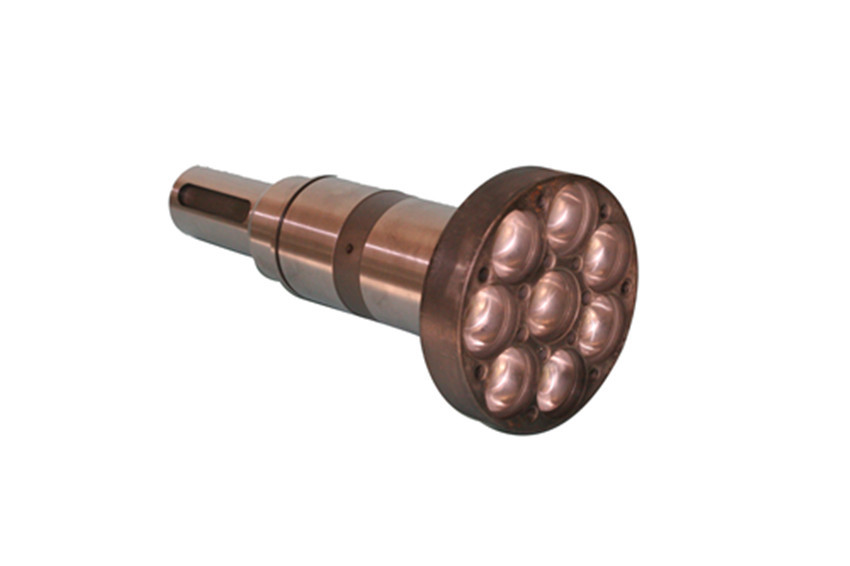

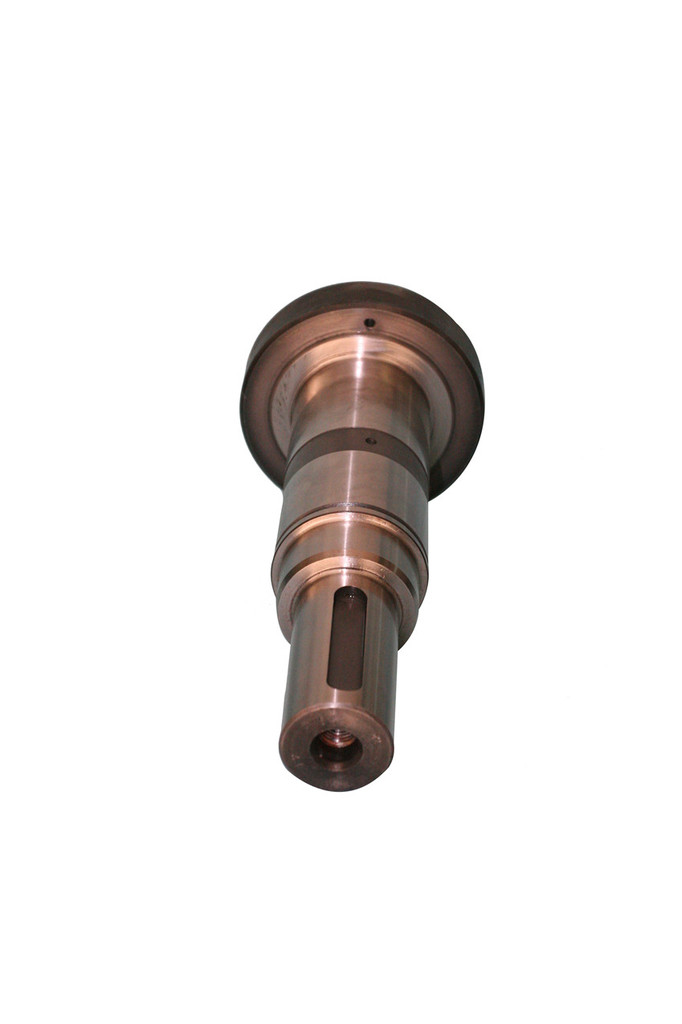

液斯源 主轴 A7V160主轴 柱塞泵零配件 柱塞泵主轴
规格 | A1 | A2 | A3 | A4 | A5 | A6 | A7 | A8 | A9 | A10 | A11 | M |
20,28,32 | 12.1 | 60 | 73.5 | 50 | 52.5 | 2.1 | 19 | 8 | 21 | 43 | 28 | M8 |
40,55 | 21 | 101.5 | 123.5 | 60 | 98 | 2.1 | 28 | 8 | 26 | 35 | 28 | M12 |
80 | 24 | 127 | 150 | 70 | 121.5 | 2.3 | 28 | 10 | 30 | 40 | 33 | M12 |
78,107 | 25 | 127 | 150 | 80 | 121.5 | 2.3 | 28 | 12 | 35 | 45 | 37.5 | M12 |
117,160 | 30 | 145 | 172 | 90 | 140.5 | 2.7 | 36 | 14 | 39.5 | 50 | 43 | M16 |
250 | 30 | 128 | 154 | 82 | 121 | 3.2 | 36 | 14 | 44.5 | 58 | 52 | M16 |
355 | 34 | 150 | 177 | 105 | 142 | 3.2 | 42 | 18 | 53 | 82 | 74 | M20 |
500 | 36 | 160 | 187 | 105 | 153 | 4.2 | 42 | 20 | 62 | 82 | 74 | M20 |
规格 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | 平键 | 花键 |
20,28,32 | 69 | 50 | 38 | 38 | 35 | 25 | 27.9 | 8*40 | w25*1.25*18*9g |
40,55 | 87 | 63 | 45 | 45 | 40 | 30 | 33 | 8*50 | W30*2*14*9g |
80 | 100 | 75 | 55 | 55 | 50 | 35 | 38 | 10*56 | W35*2*16*9g |
78,107 | 110 | 75 | 55 | 55 | 50 | 40 | 43 | 12*63 | W40*2*18*9g |
117,160 | 126 | 95 | 70 | 70 | 62 | 45 | 48.5 | 14*70 | W45*2*21*9g |
250 | 150 | 103 | 85 | 85 | 70 | 50 | 53.5 | 14*80 | W50*2*24*9g |
355 | 176 | 120 | 100 | 100 | 80 | 60 | 64 | 18*100 | W60*2*28*9g |
500 | 210 | 130 | 110 | 110 | 90 | 70 | 74.5 | 20*100 | W70*3*22*9g |
