型号models | GTI-300W-WV | GTI-500W-WV |
推荐使用光伏板 Recommend use solar panels | 400Wp | 600Wp |
DC最大出入电流 DC MAX input current | 20A | 40A |
AC最大输出功率 AC MAX output power | 300Watt | 500Watt |
DC最大开路电压 DC MAX Open-circuit input-voltage | 100VDC | |
DC输入电压范围 DC input voltage range | 22~60VDC | |
最大输出功率因数 MAX output power factor | 0.99 | |
DC输入反极保护 DC input Reverse voltage protection | FUSE | |
AC输出电压范围 AC output voltage range | （120V versions：90~140VAC）（230V versions：180~260VAC） | |
AC频率范围 AC frequency range | 45-53Hz/55-63Hz | |
输出电流总谐波失真 Output current total harmonic distortion | THDIAC <5% | |
相位差 AC Phase | <0.5% | |
岛效应保护Islanding protection | VAC；f AC | |
输出短路保护Output short circuit protection |
限流Current-limiting | |

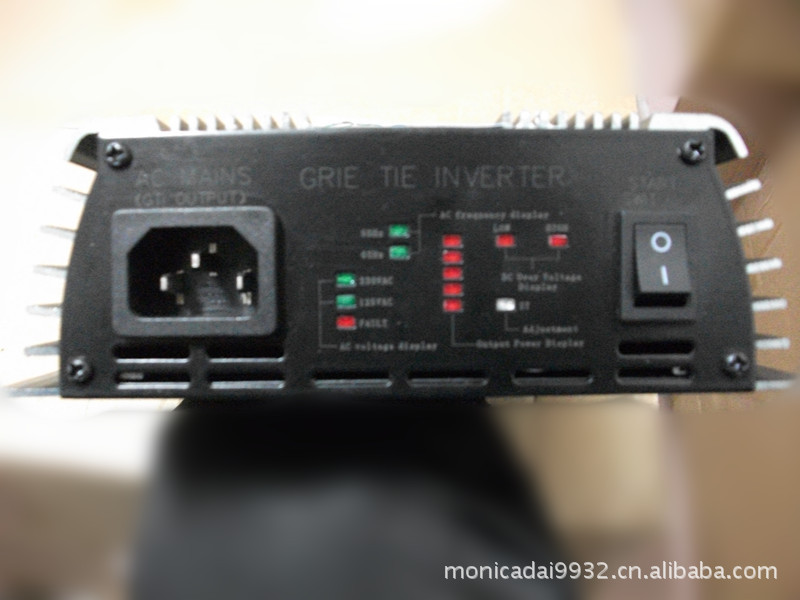

显示Show | LED mode：power instruction；voltage instruction；AC frequency instruction；over-voltage instruction | |
安装Installation | 壁挂Wall hanging | |
冷却Cooling | 风扇Fan | |
交流方式Communication way | 60KHz modulation，power line carrier-current communication | |
待机损耗Standby Power | <1W | |
夜间损耗Night Power | <1W | |
环境温度范围 Ambient temperature range | -25 ℃~60℃ | |
湿度Humidity | 0~99%(Indoor Type Design) | |
防水Waterproof | Indoor Type Design | |
电磁兼容Electromagnetic Compatibility | EN50081.part1 EN50082.part1 | |
电网扰动Power System Disturbance | EN61000-3-2 EN60950-1 | |
电网检测Network test | DIN VDE 1026 | |
净重N.W(Each inverter) | 1.3KG（300W/500W） | |
毛重G.W(Each inverter) | 1.8KG（300W/500W） | |
逆变器尺寸Each inverter size (L x W x H) | 21 x 16.5 x5.3CM | |
内箱尺寸Inner carton size(L x W x H) | 30x20.3x11.3CM | |
外箱尺寸Master carton size(L x W x H) | 42x31.5x36.5CM(6 pieces/carton) | |
AC电源线长度 AC power cord length | 1.8M |
