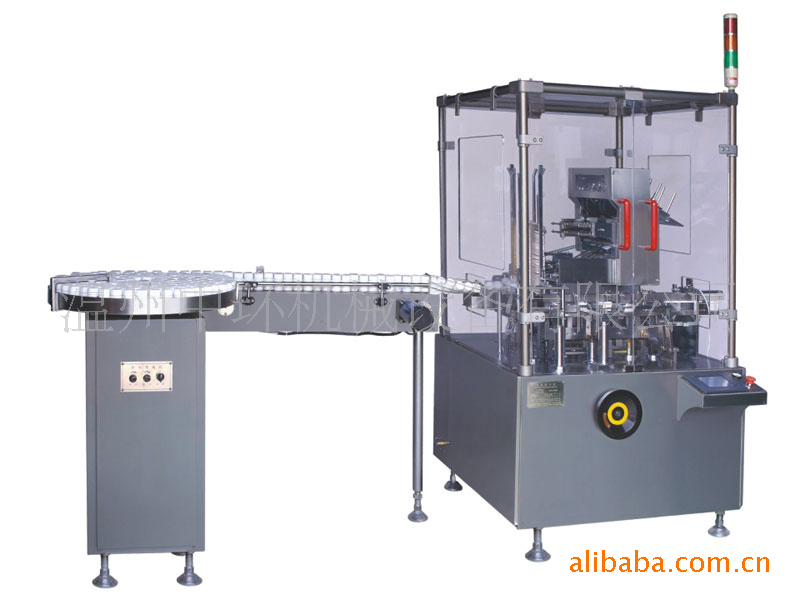

JDZ-120P立式自动装盒机
JDZ-120P型立式自动装盒机是我公司结合国内外先进技术研发的新型机型,集光、电、气、机一体化的高科技产品。从而使设备性能和工作效率得到大幅度提高,实现快速装盒要求,且在快递运行时仍保持平稳、可靠状态。
该机型适用瓶状(圆瓶、方瓶)物品的自动加料及装盒。在线自动瓶子整理输送、说明书折叠(1-4次折置)与传送、说明书检测、纸盒吸取成形与与传送、物料入盒、压印批号、纸盒两端纸舌封装(也可适用热熔胶)、缺料剔除及成品输出等全过程均属自动完成。
特点:
1、PLC自动控制系统、变频调速,电气元件均采用国际知名品牌。
2、采用人机界面操作系统。
3、机械过载自动停机。
4、自动剔除缺包装物和说明书的纸盒。
5、故障显示、报警和成品计数。
6、性能稳定、操作简便易懂。
技术参数:
项 目 | 参 数 | |
装盒速度 | 30-120盒/min | |
纸 盒 | 质量要求 | 250-350g/㎡ 【视纸盒大小而定】 |
尺寸范围 | (65-120)mm×(30-70)mm×(30-55)mm | |
说 明 书 | 质量要求 | 60-70g/㎡ |
未折叠尺寸范围 | (80-250)㎜×(90-170)㎜ | |
已折叠尺寸范围 | 1-4折 | |
压缩空气 | 工作压力 | 0.6mpa |
耗气量 | 120-160L/min | |
电 源 | 220V 50HZ | |
主电机功率 | 0.75kw | |
外形尺寸(L×W×H) | 2700㎜×1140㎜×1800㎜ | |
整机净重 | 约1200kg | |
JDZ-120P Automatic Cartoning Machine
This equipment is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for automatic feeding bottle(round,square bottle)into carton (either for blister or bottle). On line bottle unscramble and feeding,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.
Feature :
1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products.
6 Stable performance,operation is easy.
Main technical parameters:
Item | Parameters | |
Encasing speed | 30-120 boxes/min | |
Box | Quality requirement | 250-350g/㎡ 【Base on carton size】 |
Dimension range | (65-120)mm×(30-70)mm×(30-55)mm | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification | (80-250)㎜×(90-170)㎜ | |
Fold range | 1-4 Fold | |
Compressed air | Working pressure | 0.6mpa |
Air consumption | 120-160L/min | |
Power supply | 220V 50HZ | |
Main motor power | 0.75kw | |
Machine dimension(L×W×H) | 2700㎜×1140㎜×1800㎜ | |
Machine weight | about 1200kg | |
