HWA KAI ELECTRONIC FACTORY

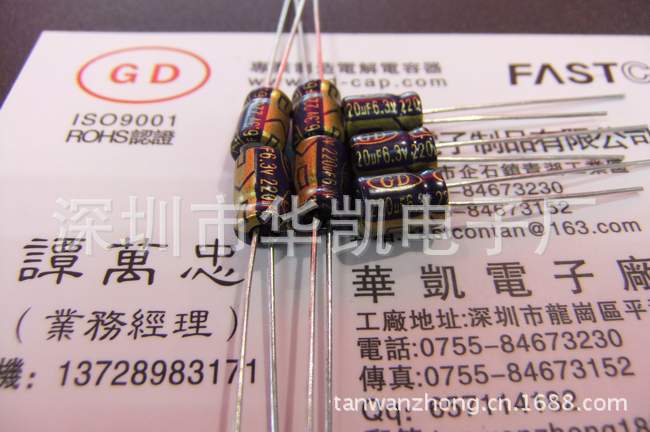

LEHseries小型化高频率低E.S.R品
Miniature size LOW E.S.R
1.高频率低ESR，寿命2000小时，1050C
Low ESR for high frequency , Life time:2000 hours at 1050C
2.适用于电脑主机板，高保真音箱，高分辨数码彩电等电子线路中
Used in main board , hi-fi acoustics ,numeral color-TV circuits etc
Specifications
No. | Item | Performance |
1 | 使用温度范围 Operating Temperature Range | -40 to +1050C |
2 | 定格电压范围 Rated Working Voltage Range | 6.3-100V.DC |
3 | 静电容量范围 Capacitance Tolerance | 0.47-4700µF |
4 | 静电容量容许差 Capacitance Tolerance | ±20%(at+250C,120Hz) |
5 | 泄漏电流 Leakage Current | I≤0.01CV or 2(µA) after three minutes Application of rated working voltage+25℃ |
6 | 损失角 Dissipation Factor(tanδ) （120Hz\+25℃） | Working Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | tanδ max. | 0.22 | 0.20 | 0.18 | 0.16 | 0.12 | 0.10 | 0.09 | 0.08 |
|
7 | 温度特性（at 120 Hz） Characteristics at low temperature (stability at 120Hz) | Working Voltage (V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 63 | 100 | -25℃/+25℃ | 4 | 3 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | -40/℃+25℃ | 8 | 4 | 3 | 3 | 3 | 3 | 3 | 4 | 4 |
|
8 | 高温负荷特性 High Temperature Loading | After 2000hrs. application of DC rated working voltage at +105℃,The capacitor shall meet the following limits: Post test requirements at + 25℃ Leakage current | ≤the Initial specified value | Capacitance change | ≤±20% of initial measured value | Dissipation Factor(tanδ) | ≤200% of initial specified value |
|
9 | 高温无负荷特性 Shelf Life | After storage for 1000hrs. at+105℃ with no voltage applied. Post test requirements at+25℃ Same limits for high temperature lading. |
