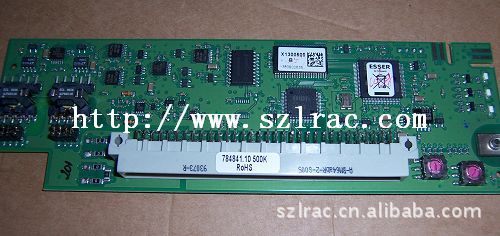

德国安舍ESSER 784841 500K网络卡
Description
Network interface module for up to 16 network users (e.g. panels respectively SEI). Protocol: similar to DIN 19245 - 1 (Profibus). Topology: loop structure, short circuit and open circuit resistant.
Technical Data
| Quiescent current @ 12 V DC | approx. 150 mA |
| Cable | munications cable I Y (St) Y n x 2 x 0.8 mm |
| Cable length | 1000 m (max. between 2 users) |
Description
As 784865 but with 500kBd baud rate. IBM type 1, type 2 or type 6 cables can be used as connection leads.
Technical Data
| Operating voltage | 8 ... 18 V DC |
| Current consumption @ 12 V DC | approx. 100 mA |
| Storage temperature | -20 °C ... 80 °C |
| Cable | IBM-Typ 1, -Typ 2 or -Typ 6 |
| Housing | die-cast aluminium |
| Color | grey |
| Weight | approx. 520 g |
