NO.

Part Number

Outline Dimension

Ground Plane

1-1

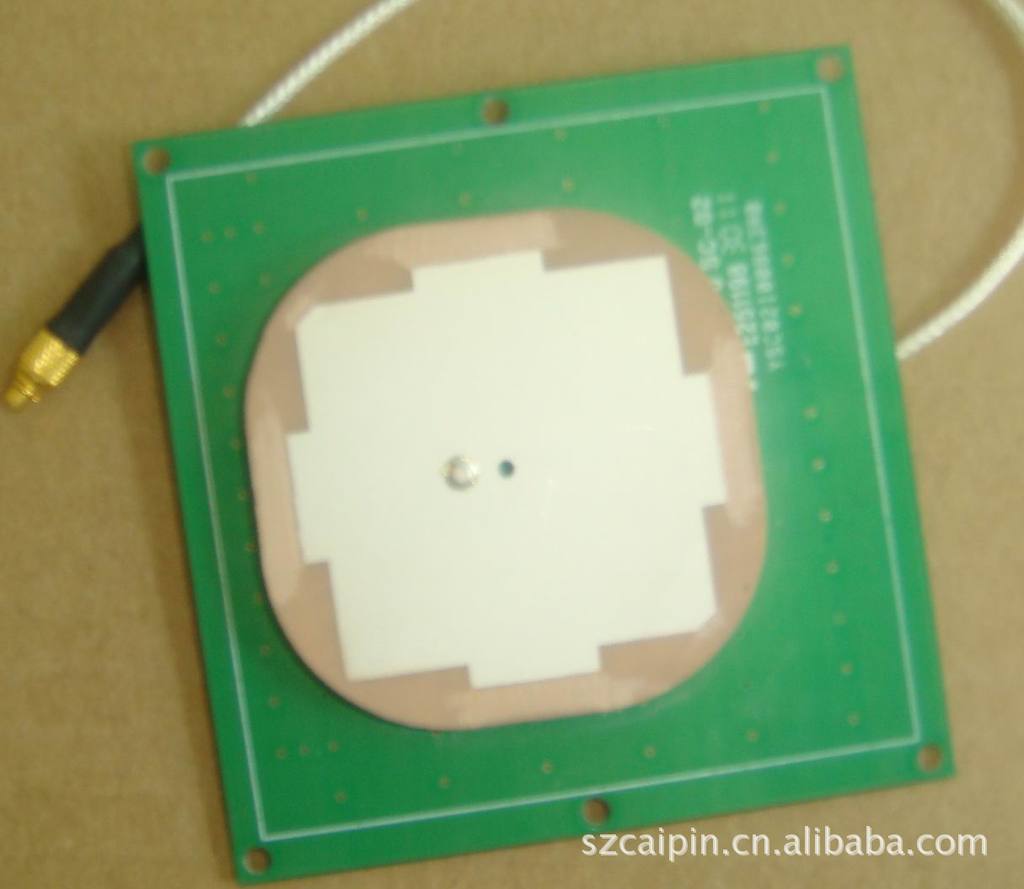

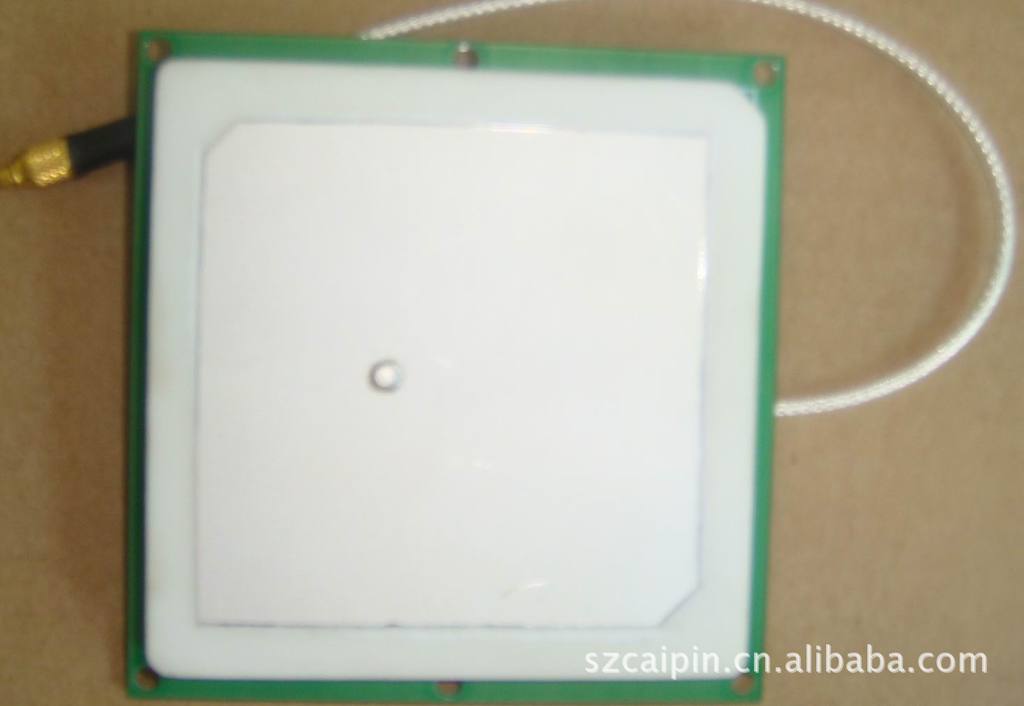

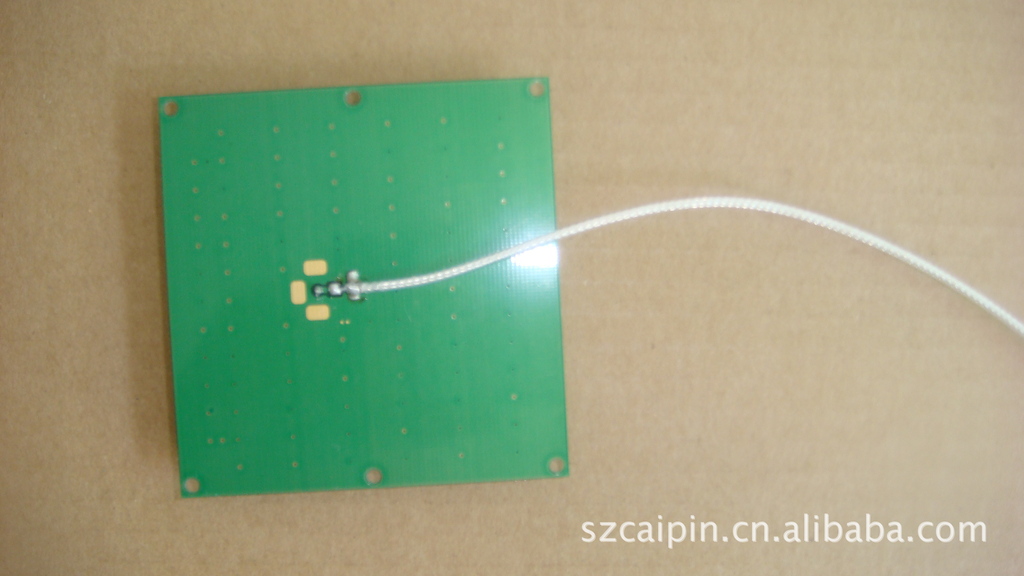

DA1561&1575S48T4.5

48*48*4.5mm

70mmx70mm

1-2

Center Frequency

1561&1575MHz

1-3

Bandwidth

40MHz min

1-4

Impedance

50Ω

1-5

Gain @ Zenith

3dBi typ.

1-6

Frequency Temperature Coefficient

0±10 ppm/℃

1-7

Return Loss @fo

-20dB typ

1-8

Output V.S.W.R

1.5 max.

1-9

Polarization

R.H.C.P

1-10

Axial Ratio

6dB typ..
