Specifications :

Current Rating: 2A AC, DC

Voltage Rating: 125V AC, DC

TemperatureRange: -25 deg C ~ +85 deg C

Contact Resistance: 20m Omega Max.

Insulation Resistance: 1,000M Omega Min.

Withstanding Voltage: 800V AC/minute

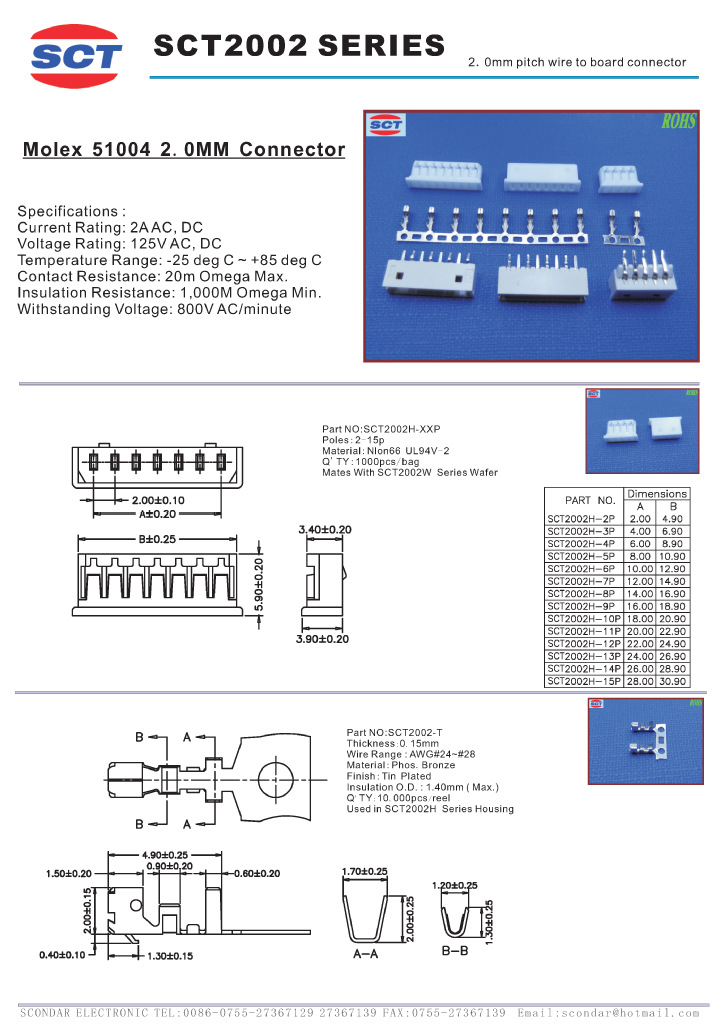

Housing

Part NO:SCT2002H-XXP

Poles:2-15p

Material:Nlon66 UL94V-2

Q'TY:1000pcs/bag

Mates With SCT2002T Series Terminal

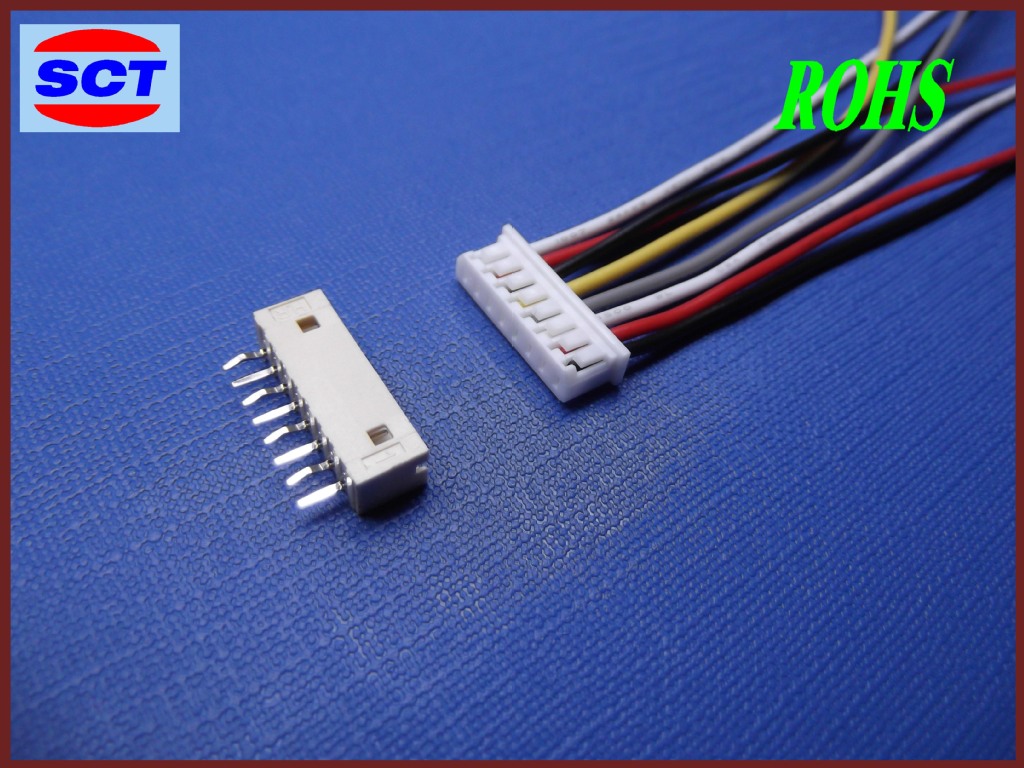

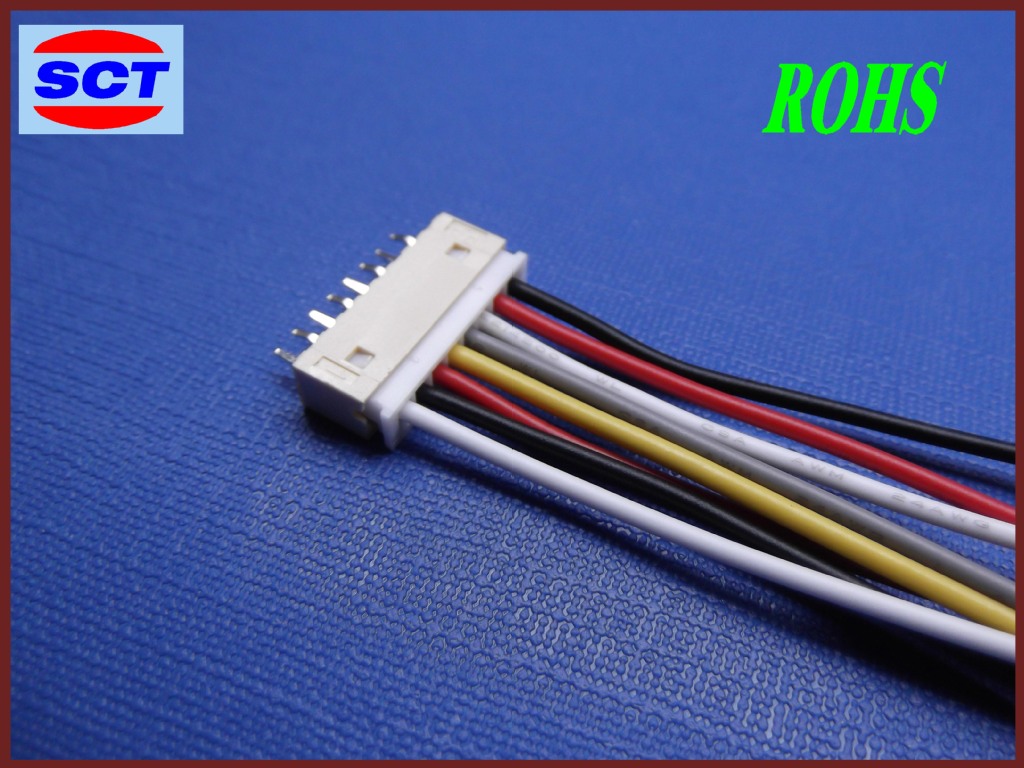

 Molex 51004 8P 端子线束 LED线束 电源线束 玩具线束

Terminal

Part NO:SCT2002-T

Thickness:0.15mm

WireRange: AWG#24~#28

Material:Phos.Bronze

Finish:Tin PlatedA

Insulation O.D. : 1.40mm ( Max.)

Q'TY:10,000pcs/reel

Used in SCT2002H Series Housing

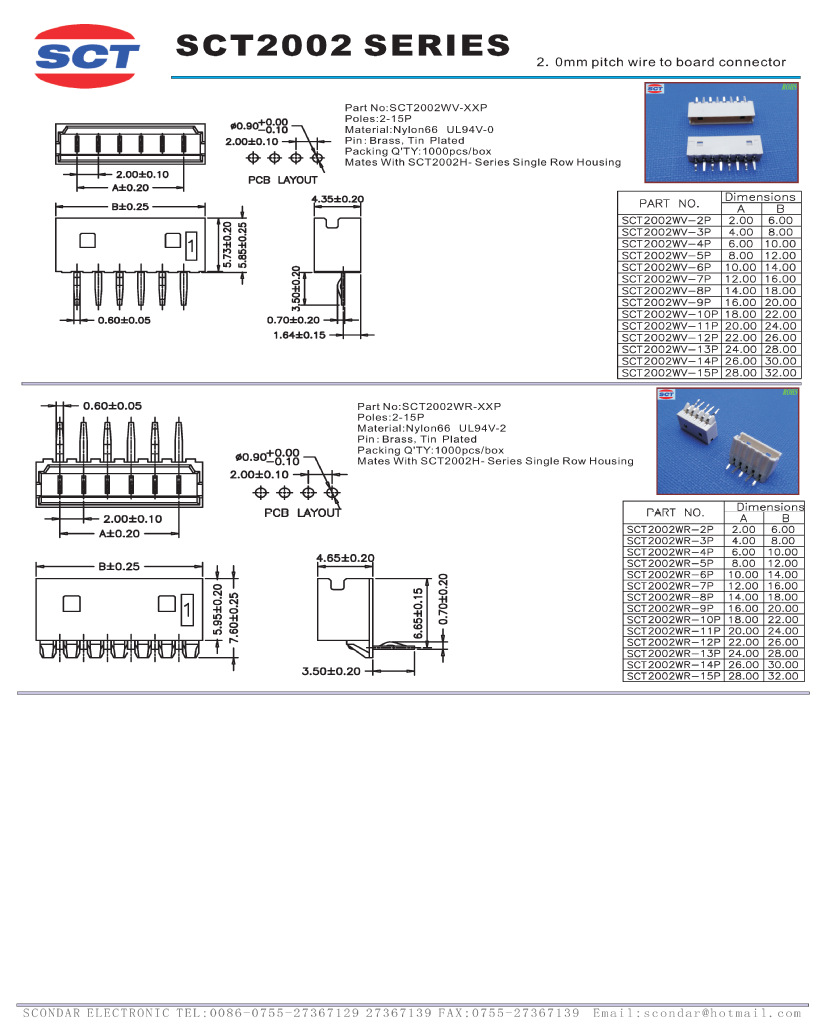

Wafer

Part No:SCT2002WV/WR-XXP

Poles:2-15P

Material:Nylon66 UL94V-0

Pin:Brass,Tin Plated

Packing Q'TY:1000pcs/box

Mates With SCT2002H- Series Housing
