Material

Ground and hardened steel (HRC 60 ± 2).

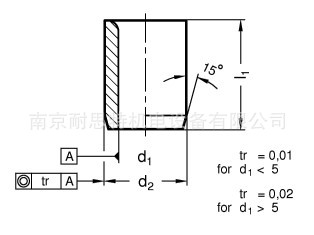

Bore one sided radiussed
(versionA).

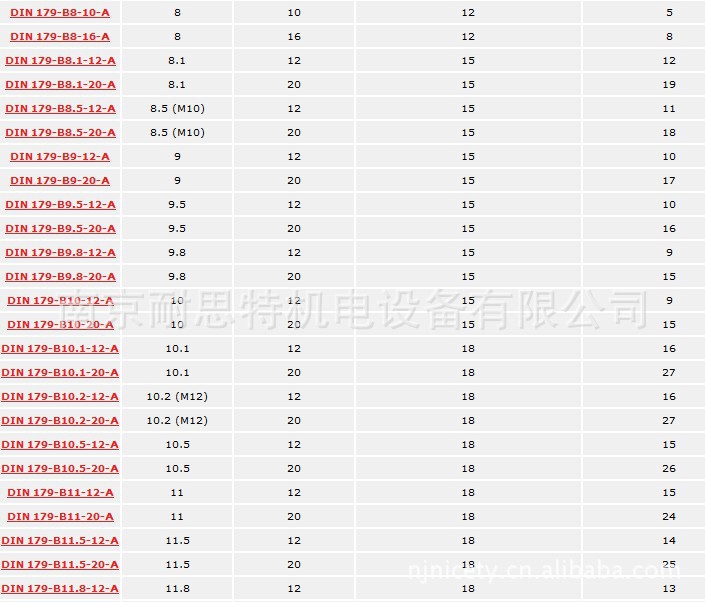

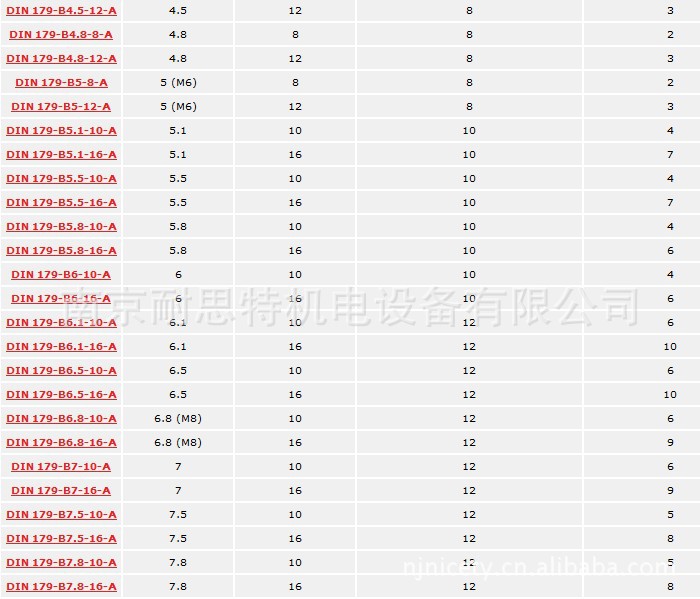

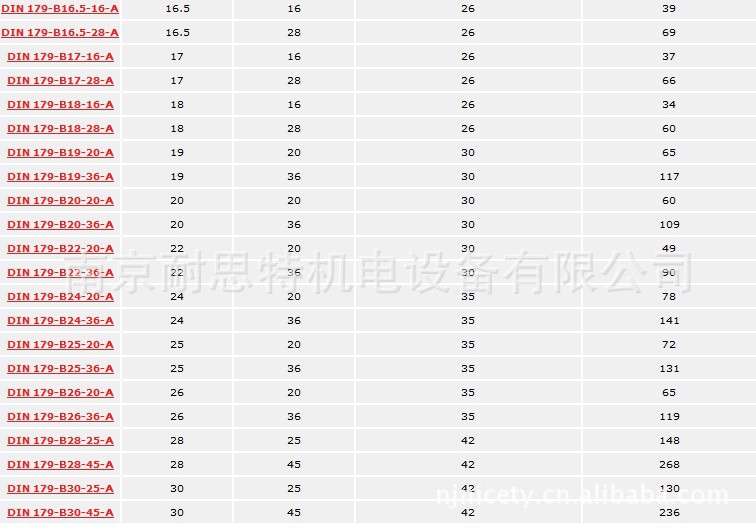

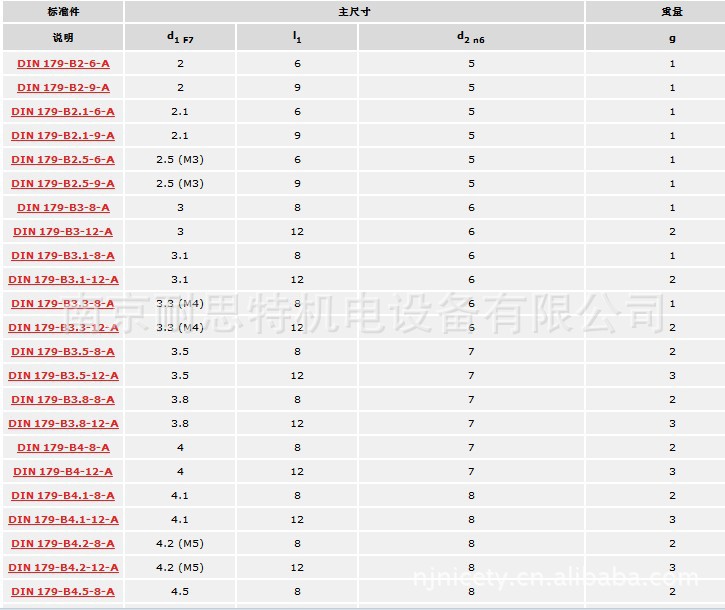

The dimensions listed in this standard sheet are merely a selection of the
(currently withdrawn) DIN standards.

For applications involving
positioning, we mend the combination with the GN 771.1 guide
pins.

The tolerance n6of the outside diameter d2
guarantees a perfect pressfit in a mounting borehole H7.
