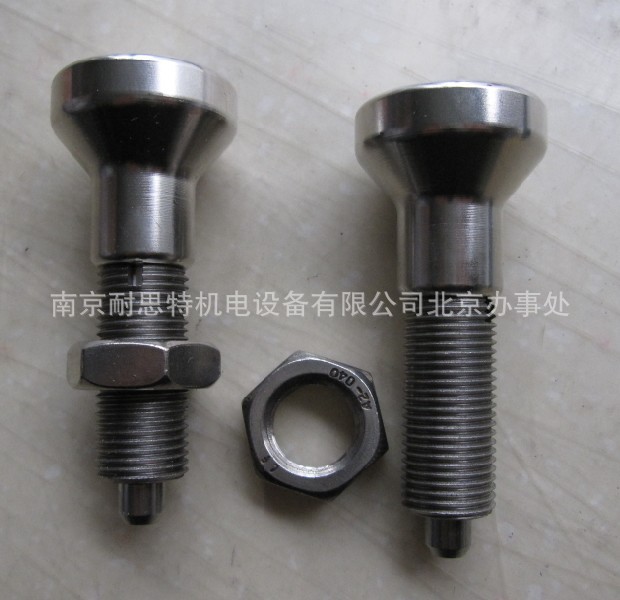

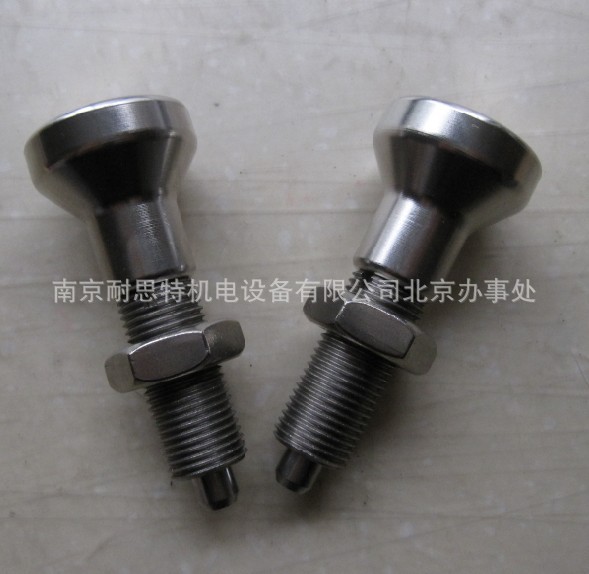

供应norelem不锈钢分度销03093-002308Locking bolts03093

Description

Material:- Locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305.

Mushroom knob 1.4305, electrolytic-polish.Surface finish:Natural finish.
Locking pin ground.Note:Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged.
In order to screw in the locking bolts, a screw-in washer can be supplied. The washer is slid beneath the disengaged mushroom knob so that the follower pins engage in the slot.On request:Special versions.
