供应凯森，PBDD5.5-250,肩背形公母预绝缘接头，接头端子
品牌/型号
MaiKaSen/麦卡森/PBDD5.5-250
 |
| |
产品外形同国内外厂商同样大小，产品厚度按标准厚度制作，镀层采用亚光锡，绝缘护套采用进口材料套管，产品供货及时 品种齐全 价格优惠 品质保证 如您有特殊型号需要,量大并提供图纸可以为您定做产品.价格合理.欢迎新老客户来电洽谈! |
|
|
| |
| |
 |

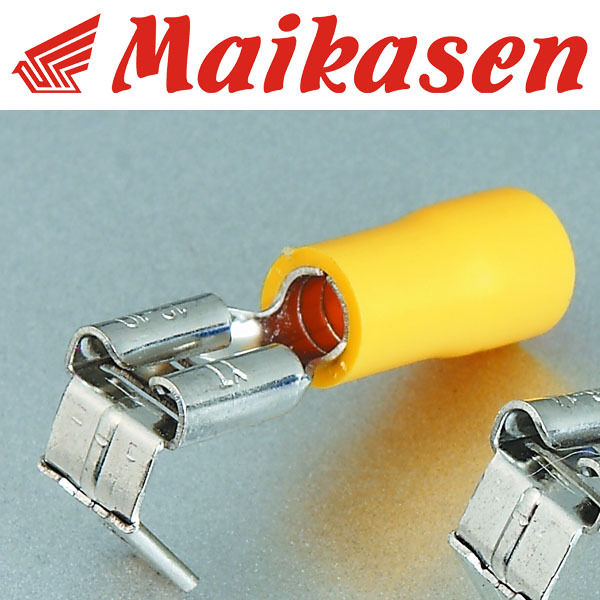

| PBDD Shoulder Shaped Male and Female Pre-insulating Joints
| Sectional area of conductor 0.5 - 1.5 mm2 A.W.G 22 - 16 Imax : 10A Material: Copper | | Item No | NEMA TAB mm | Dimension mm | | B | B1 | H | D | d | L | | PBDD 1.25 - 250 | 0.8 * 6.35 | 7.4 | 6.35 | 10 | 3.8 | 1.7 | 21.5 | | | Sectional area of conductor:1.5 - 2.5 mm2 A.W.G 16 - 14 Imax :15A Material: Copper | | Item No | NEMA TAB mm | Dimension mm | | B | B1 | H | D | d | L | | PBDD 2 - 250 | 0.8 * 6.35 | 7.4 | 6.35 | 10 | 4.3 | 2.3 | 21.5 | | | Sectional area of conductor:4 - 6 mm2 A.W.G 12 - 10 Imax :24A Material: Copper | | Item No | NEMA TAB mm | Dimension mm | | B | B1 | H | D | d | L | | PBDD 5.5 - 250 | 0.8 * 6.35 | 7.4 | 6.3 | 13 | 5.7 | 3.4 | 25 |
|
|
| |
