长期生产销售 SNB5.5-4圆形裸端头
深圳市深创为电子有限公司
中国 深圳
产品属性
图文详情
品牌推荐
型号
齐全
品牌
深创为
用途
详见产品
类型
详见产品
外形尺寸
详见产品mm
材质
详见产品
加工定制
是
|
导线截面:0.5-1.5 mm²(美国线规 22-16 ) 电流:Imax = 19A 材质：黄铜 厚度0.8mm | |||||||||

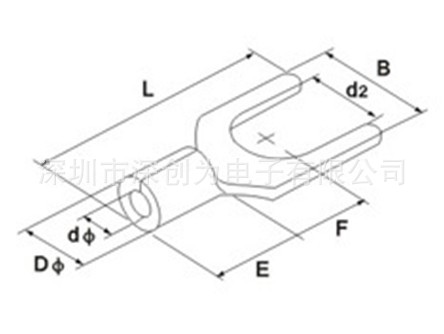

| 型号 | 尺 寸 | ||||||||
| 美制螺栓号 | 螺栓口直径 | B | L | F | E | DΦ | dΦ | ||
| d2 | mm | mm | mm | mm | mm | mm | |||
| SNB1.25-3.2 | #4 | 3.2mm | 5.7 | 16 | 6.5 | 4.8 | 3.4 | 1.7 | |
| SNBS1.25-3.7S | #6 | 3.7mm | 5.7 | 16 | 6.5 | ||||
| SNBS1.25-3.7L | #6 | 3.7mm | 6.4 | 16 | 6.5 | ||||
| SNBS1.25-4S | #8 | 4.3mm | 6.4 | 16 | 6.5 | ||||
| SNBM1.25-4M | #8 | 4.3mm | 7.2 | 16 | 6.5 | ||||
| SNBL1.25-4L | #8 | 4.3mm | 8.1 | 16 | 6.5 | ||||
| SNBS1.25-5S | #10 | 5.3mm | 8.1 | 16 | 6.5 | ||||
| SNBL1.25-5L | #10 | 5.3mm | 9.5 | 16 | 6.5 | ||||
| SNBS1.25-6S | 1/4 | 6.4mm | 9.5 | 16 | 6.5 | ||||
| SNBL1.25-6L | 1/4 | 6.4mm | 12 | 22 | 11 | ||||
| SNBL1.25-8 | 1/4 | 8.5mm | 14.5 | 25 | 12.55 | ||||
|
|
|||||||||
| 导线截面:1.5-2.5 mm²(美国线规 16-14) 电流:Imax = 27A 材质：黄铜 厚度0.8mm | |||||||||
| 型号 | 尺 寸 | ||||||||
| 美制螺栓号 | 螺栓口直径 | B | L | F | E | DΦ | dΦ | ||
| d2 | mm | mm | mm | mm | mm | mm | |||
| SNB2-3.2 | #4 | 3.2mm | 5.7 | 16 | 6.5 | 4.8 | 4 | 2.3 | |
| SNBS2-3.7S | #6 | 3.7mm | 5.7 | 16 | 6.5 | ||||
| SNBL2-3.7L | #6 | 3.7mm | 6 | 16 | 6.5 | ||||
| SNBS2-4S | #8 | 4.3mm | 6.4 | 16 | 6.5 | ||||
| SNBM2-4M | #8 | 4.3mm | 7.2 | 16 | 6.5 | ||||
| SNBL2-4L | #8 | 4.3mm | 8.1 | 16 | 6.5 | ||||
| SNBS2-5S | #10 | 5.3mm | 8.1 | 16 | 6.5 | ||||
| SNBL2-5L | #10 | 5.3mm | 9.5 | 16 | 6.5 | ||||
| SNBS2-6S | 1/4 | 6.4mm | 9.5 | 16 | 6.5 | ||||
| SNBL2-6L | 1/4 | 6.4mm | 12 | 22 | 11 | ||||
| SNBL2-8 | 1/4 | 8.5mm | 14.5 | 30.5 | |||||
| 导线截面:2.5-4 mm²(美国线规 14-12) 电流:Imax = 37A 材质：黄铜 厚度1.0 mm | |||||||||
| 型号 | 尺 寸 | ||||||||
| 美制螺栓号 | 螺栓口直径 | B | L | F | E | DΦ | dΦ | ||
| d2 | mm | mm | mm | mm | mm | mm | |||
| SNB3.5-3 | #4 | 3.2mm | 5.7 | 18.3 | 7 | 6 | 5 | 3 | |
| SNB3.5-4 | #8 | 4.3mm | 8 | 18.3 | 7 | ||||
| SNB3.5-5 | #10 | 5.3mm | 8 | 18.3 | 7 | ||||
| SNB3.5-6 | 1/4 | 6.4mm | 12 | 21.5 | 12.1 | ||||
| 导线截面:4-6 mm²(美国线规 12-10) 电流:Imax = 48A 材质：黄铜 厚度1.0 mm | |||||||||
| 型号 | 尺 寸 | ||||||||
| 美制螺栓号 | 螺栓口直径 | B | L | F | H | DΦ | dΦ | ||
| d2 | mm | mm | mm | mm | mm | mm | |||
| SNB5.5-3.5 | #6 | 3.7mm | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 | |
| SNB5.5-4S | #8 | 4.3mm | 8.3 | 19.5 | 7.5 | ||||
| SNB5.5-4L | #8 | 4.3mm | 9 | 19.5 | 7.5 | ||||
| SNB5.5-5 | #10 | 5.3mm | 9 | 19.5 | 7.5 | ||||
| SNB5.5-6S | 1/4 | 6.5mm | 9 | 19.5 | 7.5 | ||||
| SNB5.5-6L | 1/4 | 6.5mm | 12 | 25.5 | 12 | ||||
| SNB5.5-8 | 5/16 | 8.4mm | 14 | 24.5 | 11.5 | ||||
|
|
|||||||||
| 导线截面:6-10 mm²(美国线规8) 电流:Imax = 62A 材质：黄铜 厚度1.7 mm | |||||||||
| 型号 | 尺 寸 | ||||||||
| 美制螺栓号 | 螺栓口直径 | B | L | F | H | DΦ | dΦ | ||
| d2 | mm | mm | mm | mm | mm | mm | |||
| SNB8-4 | #8 | 4.3mm | 8.7 | 23 | 6 | 8.5 | 7.2 | 4.5 | |
| SNB8-5 | #10 | 5.3mm | 12 | 24.5 | 5.7 | ||||
| SNB8-6 | 1/4 | 6.4mm | 12 | 24.5 | 5.7 | ||||
| SNB8-8 | 5/16 | 8.4mm | 14.5 | 28 | 8.3 | ||||
| SNB14-6 | 1/4 | 6.4mm | 12 | 28 | 7.5 | 10.5 | 9 | 5.8 | |
| SNB14-8 | 5/16 | 8.4mm | 14 | 28 | 7.5 | ||||
| SNB22-8 | 5/16 | 8.4mm | 14 | 34.5 | 9 | 12 | 11.5 | 7.7 | |
