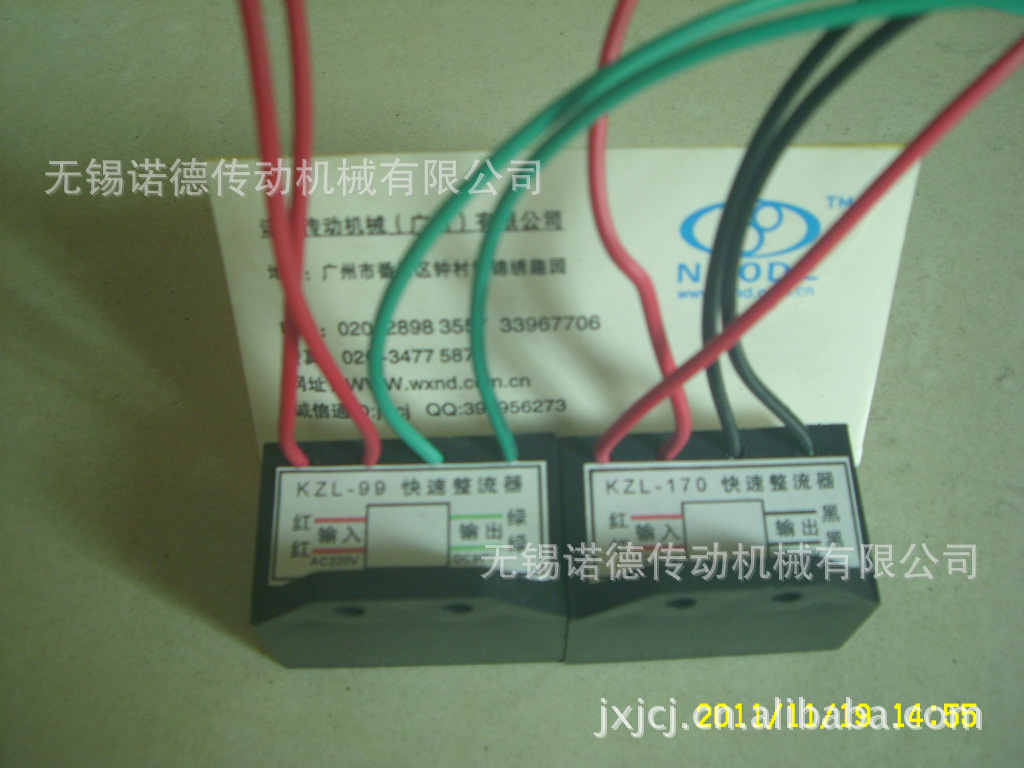

品牌:KZL
型号:KZL1-96A,KZL1-170 交流输入:220,380VAC
直流输出:96VDC,170VDC
保护功能:马达快速制动 整流元件:二极管(排)
| 1、简介(Applications) | |
| KZL系列整流器主要用作YEJ电磁制动三相异步电动机与电磁失电制动器(DZS系列)的接口。 | |
| 具有以下特点: | |
| ●制动时间快,接线方便,无需在整流器直流侧接入触点,就可实现快速制动。 | |
| ●外形美观、体积小、密封性好,适合(YEJ)电动机标准的工作环境,可直接安装在电机的接线盒内。 | |
| ●具有输入、输出保护电路。适应于电感器件的高频次工作。 | |
| KZL series rectifier is mainly as interface to linkYEJ ic brake three different step motor with ic lose electric brake (DZS series). | |
| Have the following characteristics: | |
| ●Brake fast , wire conveniently , without inserting the contact indirect current side of recifier. | |
| ●The appearance is beautiful , small; the sealing is good, suitable for (YEJ ) motor’s standard the working environment, can install in the terminal box of the electrical machinery directly . | |
| ●Have protected introduction and export circuit. Meet high frequency work of inductance device. | |
| | |
| 2、主要性能参数:Main Technical Data | |
| | |
| 数据 | 输入电压(V ac) | 输出电压(V dc) | 输出最大电流(A) | 尺寸Size | |
| 型号 | Input Voltage | Output Voltage | Output Max Current | L | B | |
| KZL1-96 | 220 | 96 | 0.8 | 13 | 28 | |
| KZL1-170 | 380 | 170 | 1.5 | 14 | 33 |
KZL-060-010-02D 最大输入电压:AC220V-270V,输出直流电压:DC99V-121V。
KZL-060-020-04D 最大输入电压:AC380V-500V,输出直流电压:DC170V-225V。
KZL-060-030-02D 最大输入电压:AC220V-270V,输出直流电压:DC209-256V。
KSZL-A 最大输入电压:AC195V-270V,输出直流电压:DC88V-121V。
KSZL-B 最大输入电压:AC350V-400V,输出直流电压:DC156V-180V。
010.2D:最大输入电压 AC220V-270V.输出直流电压 DC99V-121V.
020.4D:最大输入电压 AC380V-500V.输出直流电压 DC170V-225V.
030.2D:最大输入电压 AC220V-270V.输出直流电压 DC209V-256V.
