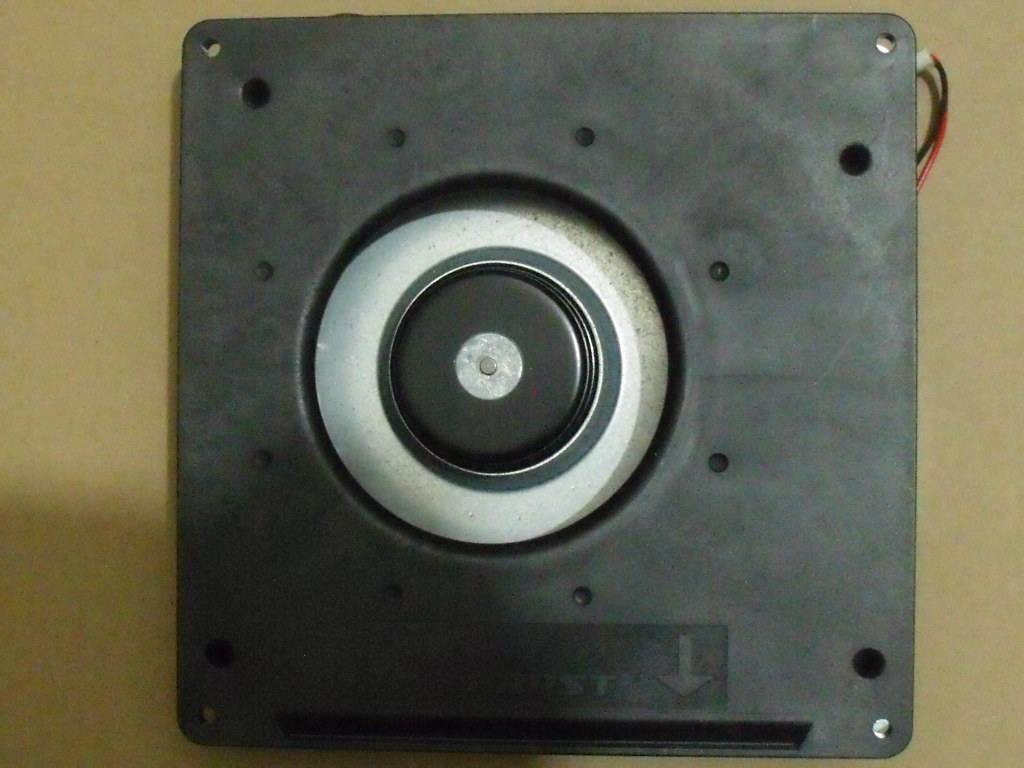

| General description | AC fan with external rotor shaded-pole motor. |
| Mass | 0.560 kg |
| Dimensions | 135 x 135 x 38 mm |
| Material of impeller | Fiberglass-reinforced plastic |
| Housing material | Spiral housing of fiberglass-reinforced plastic, housing base of galvanized sheet steel. |
| Direction of air flow | Centrifugal, air exhaust out of housing window |
| Direction of rotation | Right, looking at rotor |
| Bearing | Sintec sleeve bearing system |
| Lifetime L10 at 40 °C | 35000 h |
| Lifetime L10 at maximum temperature | 20000 h |
| Connection line | 2 single strands AWG 22 |
| Motor protection | Protected from overload using impedance protection |
| Approval | VDE, CSA, UL |
