| Approval | VDE, CSA, UL, CE |
| Bearing | Sintec sleeve bearing system |
| Connection line | Single strands AWG 28, TR 64, bared and tin-plated |
| Dimensions | 25 x 25 x 8 mm |
| Direction of air flow | Air exhaust over bars |
| Direction of protection | Left, looking at rotor |

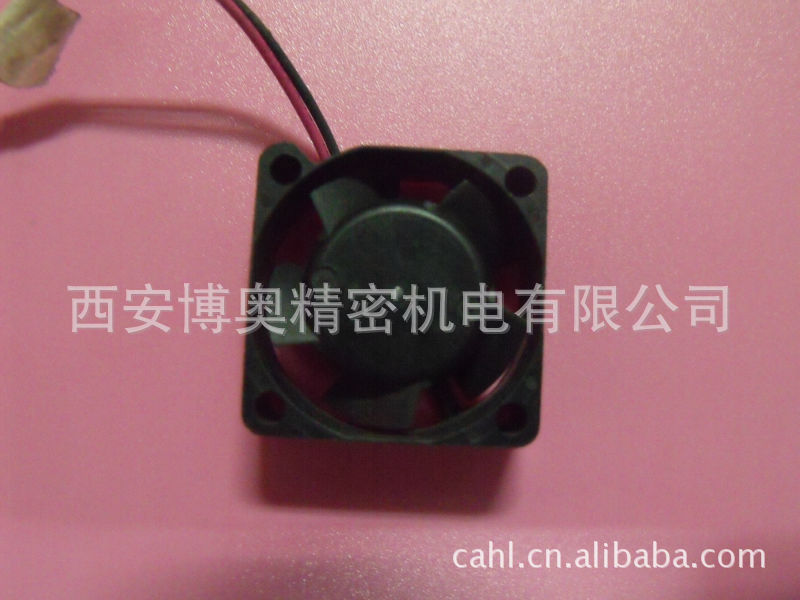

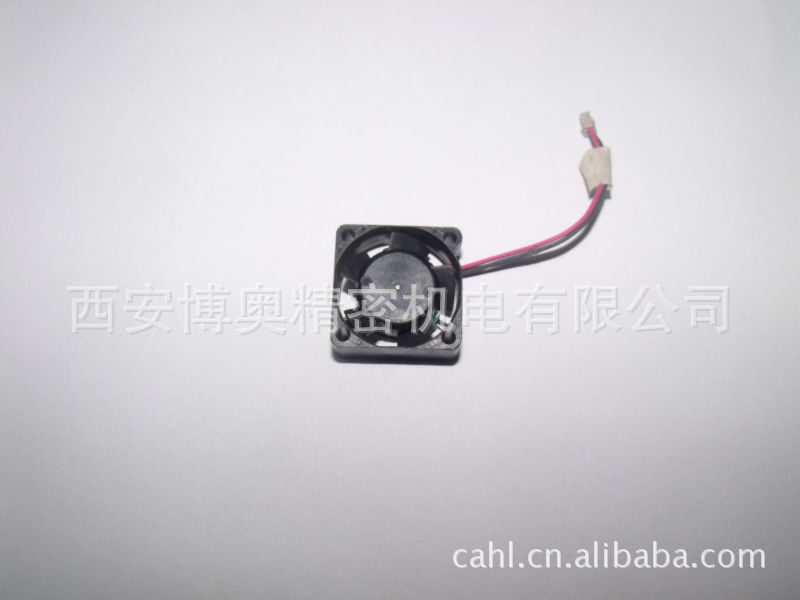

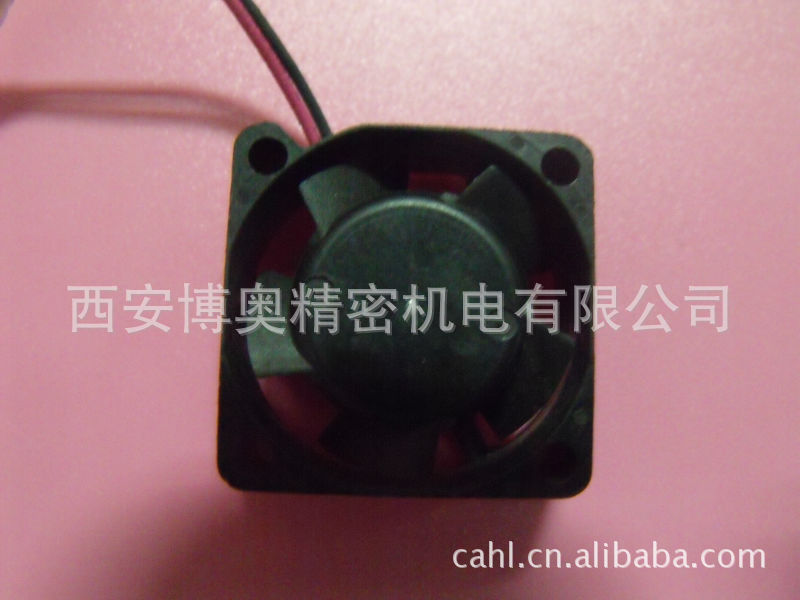

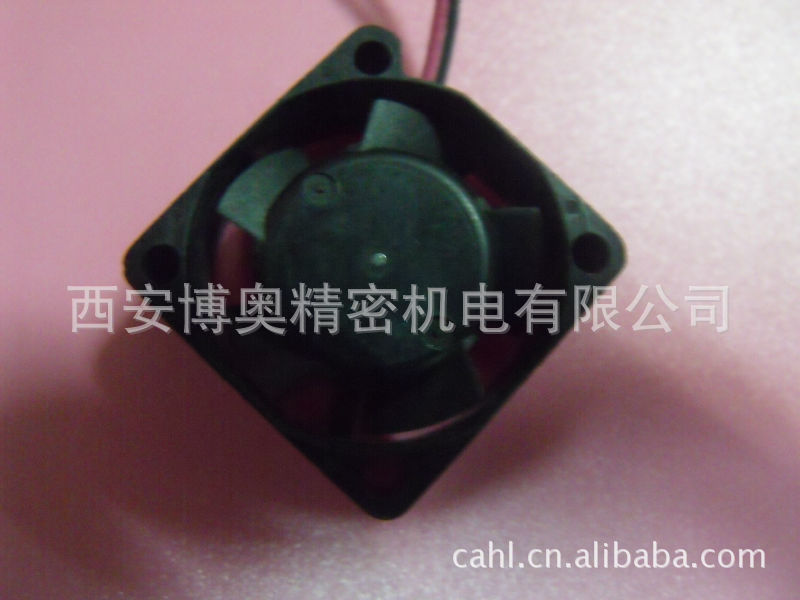

| General description | Compact fan with low power consumption. Electronic commutation completely integrated. |
| Housing material | Fiberglass-reinforced PBT plastic |
| Lifetime L10 at 20 °C | 45000 h |
| Lifetime L10 at 60 °C | 14000 h |
| Mass | 0.005 kg |
| Material of impeller | Fiberglass-reinforced PA plastic |
| Motor protection | Protected against reverse polarity and locking. |
